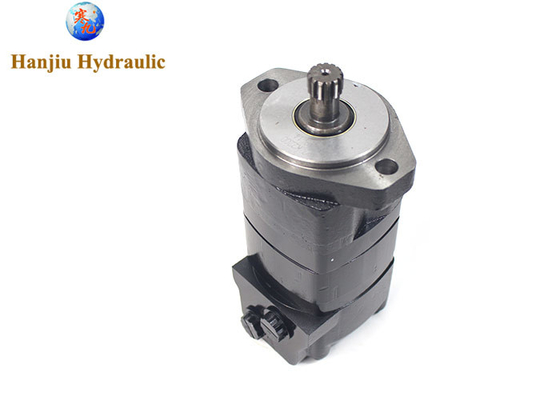

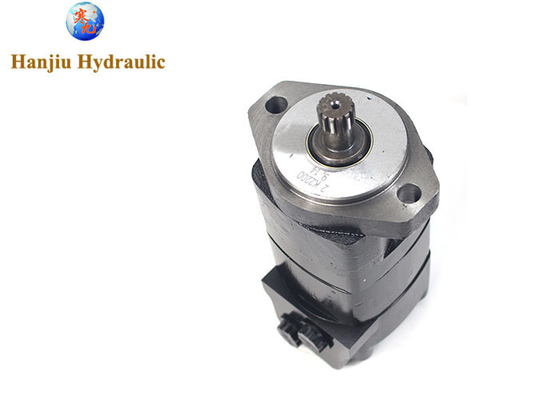

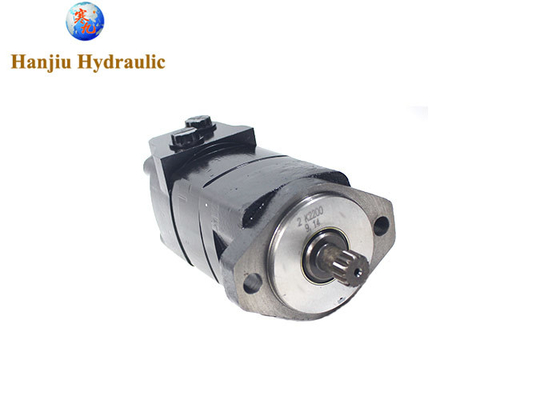

104-1647-006 Low Speed High Torque Hydraulic Motor Sae A Standard Mounting 13 Tooth Shaft 7/8 -14 O-Ring Ports

Large Image : 104-1647-006 Low Speed High Torque Hydraulic Motor Sae A Standard Mounting 13 Tooth Shaft 7/8 -14 O-Ring Ports

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE
Model Number:	BMK2-200-E2-I-SU

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	90 USD
Packaging Details:	1 pc/ inner carton, 2 pcs/ outer carton, 31x31x17cm, transport with wooden pallet, 650 pcs/ 20GP, 1300 pcs/ 40GP
Delivery Time:	35 - 45 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability:	10000 pieces per year

Contact Now

Detailed Product Description

Type:	Orbital Motor, Hydraulic Motor	Brand:	HANJIU
Model No.:	BMK2-200-E2-I-SU	Displacement:	200ml/r
Flange:	2 Bolt SAE A	Shaft:	13 Tooth Shaft
Port Size:	7/8-14UNF O-RING	Drain Line:	7/16-20UNF
Highlight:	104-1647-006 low rpm hydraulic motors , 200ml/r low rpm hydraulic motors , low rpm hydraulic motors high torque

hydraulic low speed high torque motor 104-1647-006 with SAE A standard mounting 13 tooth shaft,7/8 -14 O-ring ports

Quick review:

order code:BMK2-200-E2-I-SU

matching:Eaton 104-1647-006

Output volume (cc/rev): 200cc

Shaft Ø (mm): 22.22 [.875] DIA. FLAT ROOT SIDE FIT, 13 TOOTH, 16/32 DP 30 DEG. SAE B INVOLUTE SPLINE, 15.2 [.60] MINIMUM FULL SPLINE LENGTH

max r.p.m.: 576

Torque max. (Nm): 560

Pressure difference (bar): 310

Volume flow max. (l/min): 115

Shaft seal version: Standard

Ports threads: 7/8-14UNF O-RING

Leakage oil connection: 7/16-20UNF

Main specifiction:

Main Specifications:
Type		BMK2	BMK2	BMK2	BMK2	BMK2	BMK2	BMK2	BMK2	BMK2	BMK2
		65	80	100	125	160	200	250	315	400	475
		65	80	100	125	160	200	250	315	400	475
Geometric displacement (cm3 /rev.)		65	80	100.9	129.8	156.8	193.4	242.5	304.3	390.8	485
Geometric displacement (cm3 /rev.)		65	80	100.9	129.8	156.8	193.4	242.5	304.3	390.8	485
Max. speed (rpm)	cont.	835	800	742	576	477	385	308	246	191	153
Max. speed (rpm)	int.	990	980	924	720	713	577	462	365	287	230
Max. torque (N·m)	cont.	185	235	295	385	455	540	660	765	775	845
Max. torque (N·m)	int.	245	345	445	560	570	665	820	885	925	930
Max. pressure drop (MPa)	cont.	20.5	21	21	21	20.5	20.5	20.5	21	15.5	12
	int.	27.5	31	31	31	26	26	26	24	17	14
	peak	31	31	31	31	31	31	31	31	20.5	17
Max. flow (L/min)	cont.	55	65	75	75	75	75	75	75	75	75
Max. flow (L/min)	int.	65	80	95	95	115	115	115	115	115	115
Weight (kg)		9.2	9.4	9.7	10	10.2	10.5	11	11.5	12	12.4
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

104-1647-006 Low Speed High Torque Hydraulic Motor Sae A Standard Mounting 13 Tooth Shaft 7/8 -14 O-Ring Ports 0

The Charlynn 2000 motors we supply

104-1445-006	104-3001-006	104-1888-006	104-1762-006	104-1621-006
104-1446-006	104-3005-006	104-1889-006	104-1763-006	104-1622-006
104-1447-006	104-3006-006	104-1890-006	104-1766-006	104-1623-006
104-1448-006	104-3008-006	104-1891-006	104-1767-006	104-1624-006
104-1449-006	104-3009-006	104-1892-006	104-1768-006	104-1625-006
104-1450-006	104-3010-006	104-1895-006	104-1769-006	104-1626-006
104-1451-006	104-3018-006	104-1896-006	104-1770-006	104-1627-006
104-1452-006	104-3021-006	104-1897-006	104-1772-006	104-1628-006
104-1453-006	104-3022-006	104-1898-006	104-1773-006	104-1631-006
104-1454-006	104-3023-006	104-1899-006	104-1774-006	104-1632-006
104-1455-006	104-3024-006	104-1900-006	104-1775-006	104-1634-006
104-1460-006	104-3026-006	104-1900-006	104-1776-006	104-1635-006
104-1461-006	104-3028-006	104-1903-006	104-1777-006	104-1636-006
104-1462-006	104-3034-006	104-1903-006	104-1778-006	104-1637-006
104-1463-006	104-3035-006	104-1904-006	104-1782-006	104-1644-006
104-1464-006	104-3036-006	104-1905-006	104-1783-006	104-1646-006
104-1465-006	104-3038-006	104-1908-006	104-1786-006	104-1647-006
104-1467-006	104-3039-006	104-1910-006	104-1788-006	104-1649-006
104-1468-006	104-3040-006	104-1911-006	104-1789-006	104-1651-006
104-1469-006	104-3041-006	104-1912-006	104-1790-006	104-1652-006
104-1470-006	104-3042-006	104-1917-006	104-1791-006	104-1653-006
104-1471-006	104-3043-006	104-1918-006	104-1792-006	104-1654-006
104-1472-006	104-3044-006	104-1919-006	104-1793-006	104-1655-006
104-1473-006	104-3045-006	104-1920-006	104-1794-006	104-1656-006
104-1474-006	104-3046-006	104-1921-006	104-1795-006	104-1660-006
104-1475-006	104-3048-006	104-1922-006	104-1796-006	104-1662-006
104-1476-006	104-3051-006	104-1923-006	104-1797-006	104-1666-006
104-1477-006	104-3052-006	104-1924-006	104-1799-006	104-1667-006
104-1478-006	104-3053-006	104-1926-006	104-1802-006	104-1668-006
104-1479-006	104-3054-006	104-1927-006	104-1803-006	104-1671-006
104-1482-006	104-3055-006	104-1928-006	104-1804-006	104-1675-006
104-1483-006	104-3056-006	104-1929-006	104-1806-006	104-1682-006
104-1484-006	104-3057-006	104-1930-006	104-1808-006	104-1687-006
104-1487-006	104-3058-006	104-1931-006	104-1809-006	104-1688-006
104-1488-006	104-3059-006	104-1933-006	104-1810-006	104-1690-006
104-1489-006	104-3060-006	104-1934-006	104-1811-006	104-1693-006
104-1491-006	104-3061-006	104-1935-006	104-1812-006	104-1699-006
104-1492-006	104-3062-006	104-1936-006	104-1814-006	104-1700-006
104-1493-006	104-3062-006	104-1937-006	104-1815-006	104-1701-006
104-1494-006	104-3063-006	104-1938-006	104-1818-006	104-1702-006
104-1496-006	104-3064-006	104-1940-006	104-1819-006	104-1704-006
104-1497-006	104-3065-006	104-1941-006	104-1820-006	104-1709-006
104-1498-006	104-3066-006	104-1942-006	104-1821-006	104-1711-006
104-1499-006	104-3067-006	104-1943-006	104-1822-006	104-1712-006
104-1500-006	104-3068-006	104-1944-006	104-1823-006	104-1716-006
104-1503-006	104-3069-006	104-1946-006	104-1824-006	104-1716-006
104-1504-006	104-3069-006	104-1947-006	104-1830-006	104-1717-006
104-1505-006	104-3070-006	104-1948-006	104-1831-006	104-1720-006
104-1506-006	104-3071-006	104-1949-006	104-1832-006	104-1721-006
104-1507-006	104-3074-006	104-1952-006	104-1833-006	104-1723-006
104-1508-006	104-3077-006	104-1954-006	104-1835-006	104-1725-006
104-1509-006	104-3078-006	104-1958-006	104-1836-006	104-1726-006
104-1510-006	104-1560-006	104-1960-006	104-1837-006	104-1727-006
104-1511-006	104-1561-006	104-1961-006	104-1838-006	104-1728-006
104-1513-006	104-1562-006	104-1963-006	104-1840-006	104-1729-006
104-1514-006	104-1563-006	104-1964-006	104-1841-006	104-1730-006
104-1519-006	104-1564-006	104-1965-006	104-1842-006	104-1734-006
104-1520-006	104-1565-006	104-1965-006	104-1843-006	104-1735-006
104-1521-006	104-1566-006	104-1968-006	104-1844-006	104-1737-006
104-1522-006	104-1567-006	104-1969-006	104-1845-006	104-1738-006
104-1523-006	104-1568-006	104-1971-006	104-1846-006	104-1739-006
104-1524-006	104-1569-006	104-1972-006	104-1849-006	104-1743-006
104-1525-006	104-1572-006	104-1973-006	104-1850-006	104-1744-006
104-1526-006	104-1573-006	104-1975-006	104-1851-006	104-1745-006
104-1527-006	104-1574-006	104-1977-006	104-1852-006	104-1746-006
104-1528-006	104-1575-006	104-1979-006	104-1853-006	104-1747-006
104-1529-006	104-1576-006	104-1980-006	104-1854-006	104-1748-006
104-1530-006	104-1577-006	104-1981-006	104-1855-006	104-1749-006
104-1531-006	104-1578-006	104-1982-006	104-1856-006	104-1751-006
104-1532-006	104-1579-006	104-1983-006	104-1858-006	104-1755-006
104-1533-006	104-1583-006	104-1984-006	104-1859-006	104-1756-006
104-1534-006	104-1584-006	104-1985-006	104-1860-006	104-1759-006
104-1535-006	104-1586-006	104-1986-006	104-1861-006	104-1760-006
104-1537-006	104-1587-006	104-1987-006	104-1863-006	104-1761-006
104-1538-006	104-1590-006	104-1988-006	104-1865-006	104-1883-006
104-1540-006	104-1591-006	104-1989-006	104-1866-006	104-1884-006
104-1543-006	104-1592-006	104-1991-006	104-1867-006	104-1886-006
104-1544-006	104-1593-006	104-1992-006	104-1868-006	104-1887-006
104-1546-006	104-1595-006	104-1993-006	104-1869-006	104-1875-006
104-1547-006	104-1596-006	104-1995-006	104-1870-006	104-1876-006
104-1548-006	104-1597-006	104-1996-006	104-1873-006	104-1877-006
104-1549-006	104-1598-006	104-1997-006	104-1618-006	104-1880-006
104-1550-006	104-1601-006	104-1998-006	104-1619-006	104-1881-006
104-1551-006	104-1602-006	104-1999-006	104-1612-006	104-1606-006
104-1552-006	104-1604-006	104-1611-006	104-1613-006	104-1607-006
104-1553-006	104-1605-006	104-1557-006	104-1617-006	104-1608-006
104-1554-006	104-1556-006	104-1559-006	104-1620-006

More Char-lynn version hydraulic motors available:

104-1647-006 Low Speed High Torque Hydraulic Motor Sae A Standard Mounting 13 Tooth Shaft 7/8 -14 O-Ring Ports 2

APPLICATIONS:
Swing motor	Snow Removal
Brush cutters and mowers	Sprayers
Directional boring	Trenchers
Turf equipment	Grinders and mixers
Skid steer loaders	Forestry equipment
Haversters	Irrigation reels

104-1647-006 Low Speed High Torque Hydraulic Motor Sae A Standard Mounting 13 Tooth Shaft 7/8 -14 O-Ring Ports 3

hydraulic motors are devices that convert hydraulic energy into mechanical energy. They are widely used in different industries due to their ability to generate a large amount of force and power. In addition, they offer advantages such as high torque at low speeds and their ability to adapt to small spaces. However, it is important to carry out regular maintenance to ensure its proper functioning.if you have any questions about the hydraulic motors, pls feel free to check with me!
