Product Details:
Payment & Shipping Terms:
|
| Type: | Orbital Motor, Hydraulic Motor | Brand: | HANJIU |
|---|---|---|---|
| Model No.: | BMK2-125-E2-K-SU | Displacement: | 125ml/r |
| Flange: | 2 Bolt SAE A | Shaft: | 25mm Key Shaft |
| Port Size: | 7/8-14UNF O-RING | Drain Line: | 7/16-20UNF |
| Highlight: | 2000 series eaton geroler motor,104-1006-003 eaton geroler motor |
||

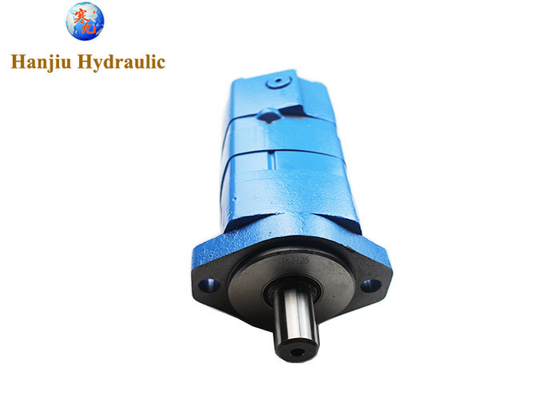

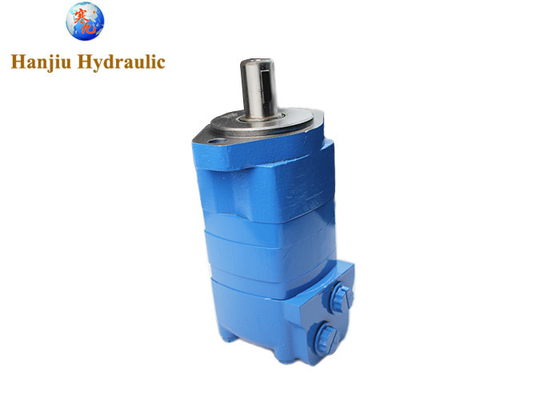

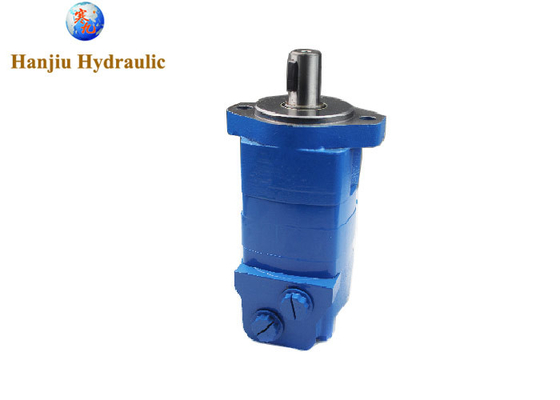

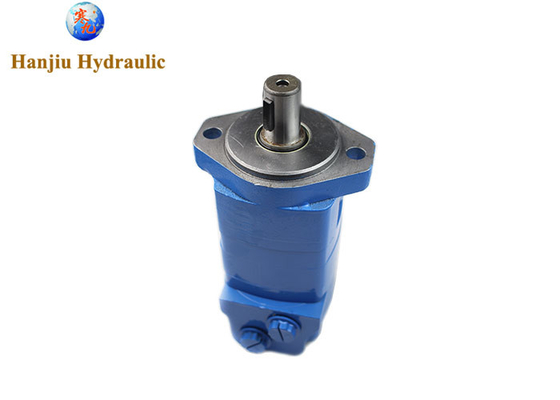

2000 Series Geroler Motor, 8.00 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports
Quick review:
| order code:BMK2-125-E2-K-SU |
| matching:Eaton 104-1006-003 |
| Output volume (cc/rev): 125cc |
| Shaft Ø (mm): 25mm,key shaft |
| max r.p.m.: 576 |
| Torque max. (Nm): 560 |
| Pressure difference (bar): 310 |
| Volume flow max. (l/min): 115 |
| Shaft seal version: Standard |
| Ports threads: 7/8-14UNF O-RING |
| Leakage oil connection: 7/16-20UNF |
Main specifiction:
| Main Specifications: | |||||||||||
| Type | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | |
| 65 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 475 | ||
| Geometric displacement (cm3 /rev.) |
65 | 80 | 100.9 | 129.8 | 156.8 | 193.4 | 242.5 | 304.3 | 390.8 | 485 | |
| Max. speed (rpm) | cont. | 835 | 800 | 742 | 576 | 477 | 385 | 308 | 246 | 191 | 153 |
| int. | 990 | 980 | 924 | 720 | 713 | 577 | 462 | 365 | 287 | 230 | |
| Max. torque (N·m) | cont. | 185 | 235 | 295 | 385 | 455 | 540 | 660 | 765 | 775 | 845 |
| int. | 245 | 345 | 445 | 560 | 570 | 665 | 820 | 885 | 925 | 930 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 21 | 21 | 21 | 20.5 | 20.5 | 20.5 | 21 | 15.5 | 12 |
| int. | 27.5 | 31 | 31 | 31 | 26 | 26 | 26 | 24 | 17 | 14 | |
| peak | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 20.5 | 17 | |
| Max. flow (L/min) | cont. | 55 | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 65 | 80 | 95 | 95 | 115 | 115 | 115 | 115 | 115 | 115 | |
| Weight (kg) | 9.2 | 9.4 | 9.7 | 10 | 10.2 | 10.5 | 11 | 11.5 | 12 | 12.4 | |
| * Continuous pressure :Max. value of operating motor continuously. | |||||||||||
| * Intermittent pressure :Max. value of operating motor in 6 seconds per minute. | |||||||||||
| * Peak pressure:Max. value of operating motor in 0.6 second per minute. | |||||||||||
104-1001
104-1002
104-1003
104-1004
104-1005
104-1006
104-1007
104-1011
104-1022
104-1023
104-1024
104-1025
104-1026
104-1027
104-1028
104-1029
104-1030
104-1031
104-1032
104-1033
104-1034
104-1035
More Char-lynn version hydraulic motors available:
| APPLICATIONS: | |
| Swing motor | Snow Removal |
| Brush cutters and mowers | Sprayers |
| Directional boring | Trenchers |
| Turf equipment | Grinders and mixers |
| Skid steer loaders | Forestry equipment |
| Haversters | Irrigation reels |
hydraulic motors are devices that convert hydraulic energy into mechanical energy. They are widely used in different industries due to their ability to generate a large amount of force and power. In addition, they offer advantages such as high torque at low speeds and their ability to adapt to small spaces. However, it is important to carry out regular maintenance to ensure its proper functioning.if you have any questions about the hydraulic motors, pls feel free to check with me!
