Product Details:
Payment & Shipping Terms:
|
| Product: | Danfoss Orbital Motor | Displacement: | 400CC |
|---|---|---|---|
| Max.Speed(rpm): | Cont.183rpm/int.220rpm | Max.Torque(N.m): | Cont.850N.m/int.990N.m |
| Max. Pressure Drop: | Cont.15.5MPa/int.19MPa | Max.flow(L/min): | Cont.75L/min~int.90L/min |
| Highlight: | well drilling omh 400 hydraulic motor,32mm shaft danfoss hydraulic motor,omh 400 danfoss hydraulic motor |
||

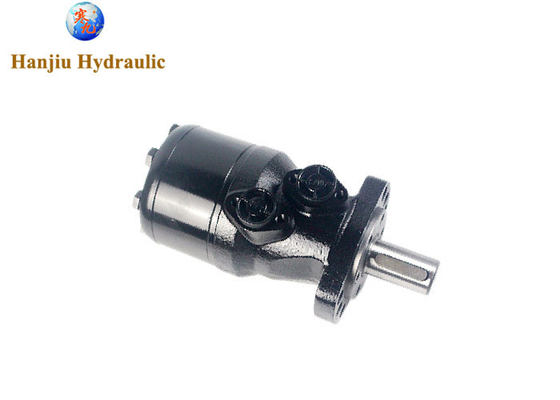

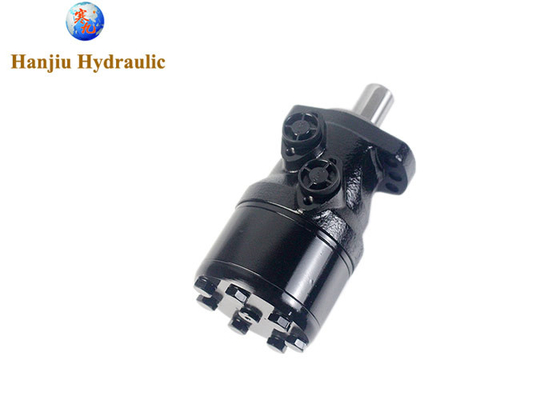

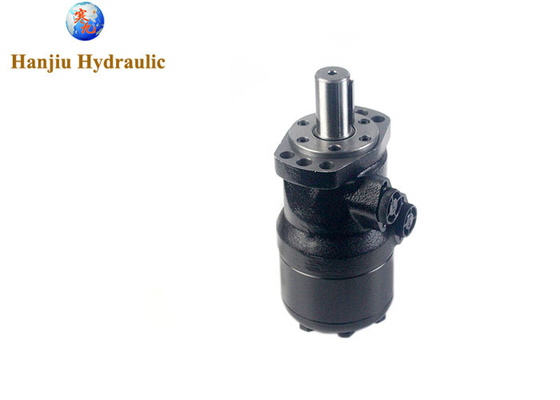

Omh 400 Danfoss Hydraulic Motor for Hydro Well Drilling 32mm shaft, G1/2 BSPP PORTS
Product details:
displacement:400cc
flange:6 bolts flange
shaft:32mm key shaft
port size:G1/2 side ports
Main Specifications:
| Type |
BMH 200 |
BMH 250 |
BMH 315 |
BMH 400 |
BMH 500 |
|
|
Displacement (cc/rev) |
203.2 | 255.9 | 316.5 | 406.4 | 489.2 | |
|
Max torque (n.m) |
cont | 510 | 621 | 740 | 850 | 830 |
| int | 439 | 348 | 282 | 220 | 184 | |
|
Max pressure (mpa) |
cont | 17.5 | 17.5 | 17.5 | 15.5 | 12.5 |
| int | 20 | 20 | 20 | 19 | 16 | |
|
Max speed rate (rpm) |
cont | 366 | 290 | 236 | 183 | 155 |
| int | 439 | 348 | 282 | 220 | 184 | |
|
Max flow (L/min) |
cont | 75 | 75 | 75 | 75 | 75 |
| int | 90 | 90 | 90 | 90 | 90 | |
|
Weight(kg)
|
10.5 | 11 | 11.5 | 12.3 | 13.0 | |
Danfoss types we supply
| Displacement | 200 | 250 | 315 | 400 | 500 |
| A1 | 151H1002 | 151H1003 | 151H1004 | 151H1005 | 151H1006 |
| A2 | 151H1012 | 151H1013 | 151H1014 | 151H1015 | 151H1016 |
| A3 | 151H1042 | 151H1043 | 151H1044 | 151H1045 | 151H1046 |
| A4 | 151H1080 | 151H1082 | 151H1083 | 151H1084 | 151H1081 |
| A5 | 151H1022 | 151H1023 | 151H1024 | 151H1025 | 151H1026 |
| A6 | 151H1052 | 151H1053 | 151H1054 | 151H1055 | 151H1056 |
| A7 | - | - | 151H1034 | 151H1035 | 151H1036 |
Hydraulic motors are essential components in various industrial applications, from construction and agriculture to marine and mining. They convert hydraulic energy into mechanical power, providing reliable and efficient performance in challenging environments. One of the most popular hydraulic motors on the market is the OMH400, known for its high torque, smooth operation, and durability.
The OMH400 hydraulic motor is designed for heavy-duty applications that require high speed and torque. It features a compact and robust design, making it suitable for use in tight spaces and harsh environments. The motor's output shaft can rotate in either direction, providing versatility and flexibility in different applications. Its low-speed high-torque (LSHT) design ensures maximum efficiency and power transfer, reducing energy consumption and operating costs.
The OMH400 hydraulic motor is also known for its smooth and quiet operation. Its advanced design minimizes noise and vibration, providing a comfortable working environment for operators. The motor's high-quality construction and materials ensure long-lasting performance, even in extreme conditions. It is resistant to corrosion, wear, and tear, making it ideal for use in harsh environments.
The OMH400 hydraulic motor is easy to install, maintain, and repair. Its modular design allows for quick and easy replacement of parts, reducing downtime and increasing productivity. The motor can also be customized to meet specific application requirements, such as different mounting options, shaft sizes, and port configurations.
In conclusion, the OMH400 hydraulic motor is an excellent choice for industrial applications that require high performance, reliability, and efficiency. Its LSHT design, smooth operation, and durability make it a popular choice among operators and engineers. With its easy installation and maintenance, the OMH400 hydraulic motor is a cost-effective solution for various industries.
We are proud of being your solution partner in hydraulics.
