Product Details:
Payment & Shipping Terms:
|
| Product: | Medium Duty Hydraulic Motor | Model Number: | RE Series |
|---|---|---|---|
| Applications: | Hydraulic System Request High Pressure | Rotary: | Counter-clockwise |
| Flange: | 4 Hole Mounting | Shaft: | Straight Shaft |
| Highlight: | 500540A5120AAAAA parker tg motor,Medium Duty Hydraulic parker tg motor |
||

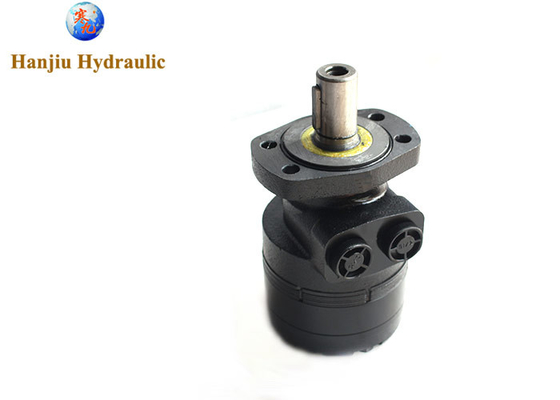

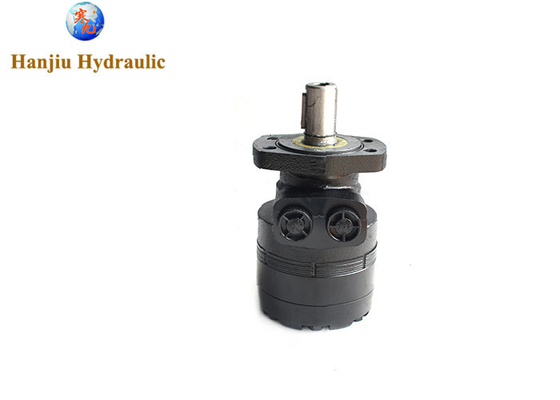

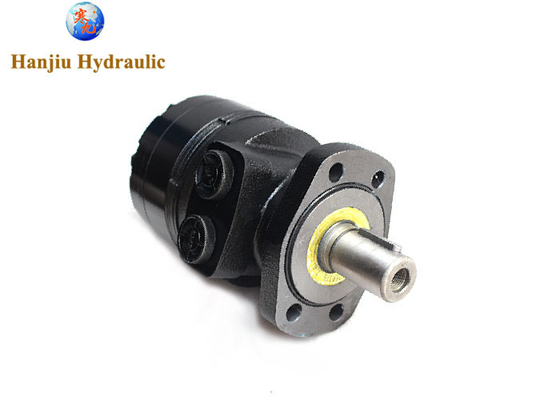

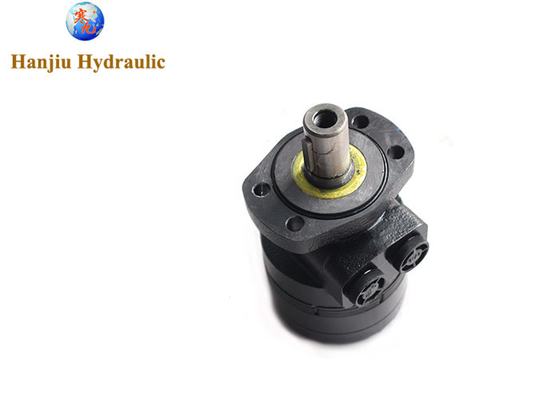

500540A5120AAAAA Replacement Hydraulic Motor of Parker TG, White 500 series torqmotor
Quick view:
RE series is one replacement type for White RE series. Now White short supply, delivery long, price expensive, many customers come to find this as a directly replacement for White RE.
Part Number:
500540A5120AAA
BMER-2-540-FS-G2-R-B LSHT Hydraulic Motor
4 Bolt Magneto Mount
32.94 Cu In. Displacement (540cc)
1-1/4" Keyed Shaft
#10 SAE ports (7/8-14 UNF)
Replaces the following brands and model numbers
Dynamic : BMER-2-540-FS-G2-S-R
White: 500540A5120AAAAA
White:505540A5120AAAAA
Parker:TG0530ES030AAAA
Specifications:
| CODE | DISPLACEMENT | CONT MAX | INTER MAX | CONT MAX FLOW | INTER MAX FLOW lpm (gpm) | CONT MAX TORQUE Nm (lb-in) | INTER MAX TORQUE Nm (lb-in) | CONT MAX PRESSURE BAR (psi) | INTER MAX PRESSURE BAR (psi) | PEAK MAX PRESSURE BAR (psi) |
| cc (in3/rev) | SPEED rpm | SPEED rpm | lpm (gpm) | |||||||
| 120 | 121 (7.4) | 360 | 490 | 45 (12) | 61 (16) | 327 (2900) | 383 (3400) | 207 (3000) | 241 (3500) | 276 (4000) |
| 160 | 162 (9.9) | 370 | 470 | 61 (16) | 76 (20) | 475 (4200) | 542 (4800) | 207 (3000) | 241 (3500) | 276 (4000) |
| 200 | 204 (12.4) | 300 | 370 | 68 (18) | 83 (22) | 542 (4800) | 633 (5600) | 207 (3000) | 241 (3500) | 276 (4000) |
| 230 | 232 (14.2) | 260 | 320 | 68 (18) | 83 (22) | 644 (5700) | 712 (6300) | 207 (3000) | 241 (3500) | 276 (4000) |
| 260 | 261 (15.9) | 260 | 350 | 76 (20) | 91 (24) | 712 (6300) | 791 (7000) | 207 (3000) | 241 (3500) | 276 (4000) |
| 300 | 300 (18.3) | 250 | 320 | 83 (22) | 95 (25) | 825 (7300) | 938 (8300) | 207 (3000) | 241 (3500) | 276 (4000) |
| 350 | 348 (21.2) | 220 | 270 | 83 (22) | 95 (25) | 921 (8150) | 1045 (9250) | 207 (3000) | 241 (3500) | 276 (4000) |
| 375 | 375 (22.8) | 200 | 250 | 76 (20) | 91 (24) | 1006 (8900) | 1158 (10250) | 207 (3000) | 241 (3500) | 276 (4000) |
| 470 | 465 (28.3) | 160 | 200 | 76 (20) | 91 (24) | 1096 (9700) | 1184 (10475) | 172 (2500) | 189 (2750) | 207 (3000) |
| 540 | 536 (32.7) | 140 | 170 | 76 (20) | 91 (24) | 983 (8700) | 1243 (11000) | 138 (2000) | 172 (2500) | 207 (3000) |
| 750 | 748 (45.6) | 100 | 130 | 76 (20) | 91 (24) | 1062 (9400) | 1237 (10950) | 103 (1500) | 121 (1750) | 138 (2000) |
Here are example RE alternative available from us:
| 530300A5130AAAAA | 500200A5102AAAAA | 500160A5120AAAAA |
| 530375A5130AAAAA | 500200A5123AAAAA | 500160W3120AAAAA |
| 500540A3123ZAAAA | 500230A3102AAAAA | 500200A5120AAAAA |
| 500200A5122AAAAA | 500260A3110AAAAA | 500230A3122AAAAA |
| 500375W3122AAAAA | 500300A5102AAAAA | 500230A5120AAAAA |
| 500300W3122AAAAA | 505300A5120AAAAA | 500260A3123AJAAA |
| 500230W3122AAAAA | 500300K3122AAAAA | 500470W3120AAAAA |
| 500120W3120AAAAA | 500350A5123AAAAA | 500470W3120AEAAA |
| 500160W3122AAAAA | 500375A5120AAAAA | 505540A5120AAAAA |
| 500260W3120AAAAA | 500470A5120AAAAA | 500540W3120AAAAA |
| 500200W3122AAAAA | 500470W3122AAAAA | 500540W3122AAAAA |
| 500260W3122AAAAA | 500540A5123AAAAA | 501750K3122ACAAA |
| 500750A5120AFAAA | 505750A5120AAAAA | 501540A5123AAAAA |
| 500540W3120AEAAA | 500120A5102AAAAA | 501200A3123AAAAA |
| 500540A3122AABAA | 500350W3122AAAAA | 501540A5122AABAA |
| 500470A3120AAAAA | 500160A3110AAAAA | 500230A5101AAAAA |
| 520300A5103AAAAA | 520300W3125AAAAA | 530200X3831AABACS |
| 530300T31N8AAABRP | 530230X3131ZAAAAS | 530200X3122AAAAAS |
| 530230X3131ZAAAAP | 530200X3122AAAAAP |
Located in China, we specialized in Ligh duty, medium duty and heavy duty drive Motors compatible with White, also Orbit motors, Geroller and Gerotor motors compatible with Parker, Danfoss ,white, Eaton, Dana. If you are looking for these motors, we will help make your business competitive, contact us to talk your request
