Product Details:
Payment & Shipping Terms:
|
| Product: | Hydraulic Motor | Model No.: | BMK2-160-E4-B-D |
|---|---|---|---|
| Size: | 160ml/r | Flange: | Standard Mount |
| Port: | G 1/2 | Shaft: | 32mm Key Shaft |
| Rotation: | Standard | Color: | Black |
| Feature: | With Valve Cavity | More Size: | 80 - 500 Ml/r Available |
| Highlight: | 104-1387-006 char lynn hydraulic motor,harvesting equipment char lynn hydraulic motor |
||

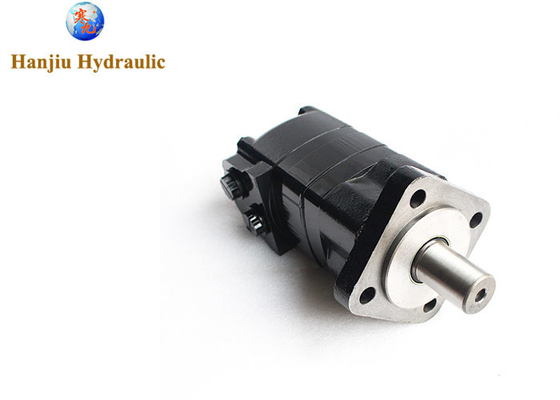

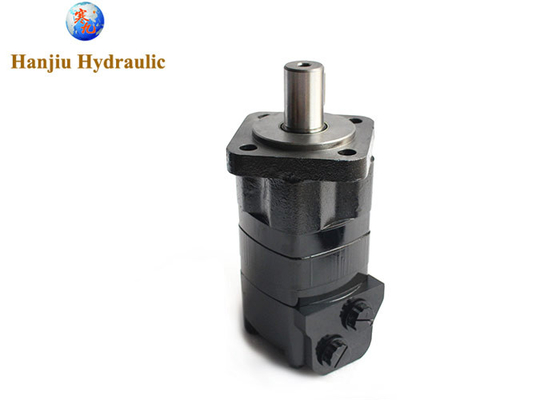

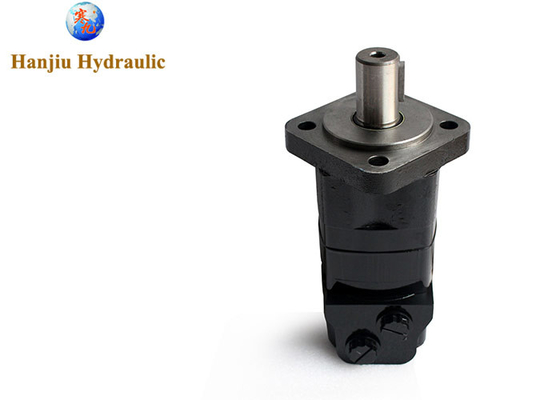

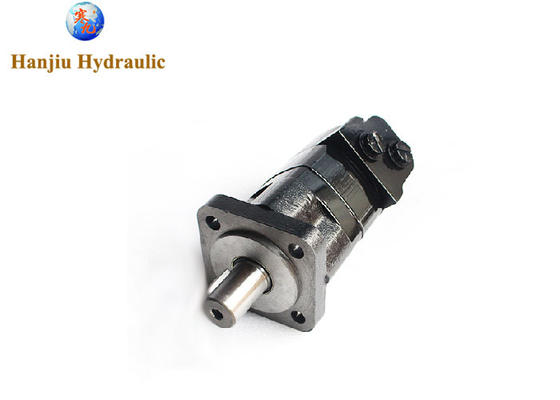

Char-Lynn 104-1387-006 Hydraulic Motor suitable for Swing motor, Brush Cutters & mowers, Harvesting equipment.
| Item | Low Speed High Torque Hydraulic disc geroler motor |
| Model No. | 104-1387-006 |
| Size | 160 ml/r |
| Flange | Standard mounting 4 Bolts |
| Shaft | 32mm Straight |
| Port | G 1/2 BSP |
| Rotation | Standard |
| Color | Black |
| More Size | 65ml/r, 80ml/r, 100ml/r, 125ml/r, 160ml/r, 200ml/r, 250ml/r, 315ml/r, 400ml/r, 475 ml/r |
| Brand | Hanjiu |
Specification:
| TYPE | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | |
| 125CC | 160CC | 200CC | 250CC | 315CC | 400CC | 475CC | ||
| Displacement(ml/r) | 129.8 | 156.8 | 193.4 | 242.5 | 304.3 | 390.8 | 485 | |
| Max.Pressure.Drop(Mpa) | cont. | 21 | 20.5 | 20.5 | 20.5 | 21 | 15.5 | 12 |
| int. | 31 | 26 | 26 | 26 | 24 | 17 | 14 | |
| peak. | 31 | 31 | 31 | 31 | 31 | 20.5 | 17 | |
| Max.Torque(N.m) | cont. | 385 | 455 | 540 | 660 | 765 | 775 | 845 |
| int. | 560 | 570 | 665 | 820 | 885 | 925 | 930 | |
| Speed.Range(r/min) | cont. | 576 | 477 | 385 | 308 | 246 | 191 | 153 |
| int. | 720 | 713 | 577 | 462 | 365 | 287 | 230 | |
| Max.Flow(cont.)(L/min) | cont. | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 95 | 115 | 115 | 115 | 115 | 115 | 115 | |
| Weight(kg) | 10 | 10.2 | 10.5 | 11 | 11.5 | 12 | 12.4 | |
Dimention:
More BMK2 series to match Charlynn 2000 series
More Char-lynn replacement motor available:
| 104-1056-006 | 104-1989-006 |
| 104-3358-006 | 104-1991-006 |
| 104-1029-006 | 104-1992-006 |
| 104-1034-006 | 104-1993-006 |
| 104-1035-006 | 104-1995-006 |
| 104-1229-006 | 104-1997-006 |
| 104-3274-006 | 104-1998-006 |
| 104-1422-006 | 104-1999-006 |
| 104-3001-006 | 104-3006-006 |
| 104-3130-006 | 104-3008-006 |
| 104-4246-006 | 104-3009-006 |
| 104-1027-006 | 104-3010-006 |
| 104-1028-006 | 104-3021-006 |
| 104-1228-006 | 104-3022-006 |
| 104-1068-006 | 104-3023-006 |
| 104-1015-006 | 104-3024-006 |
| 104-1017-006 | 104-3026-006 |
| 104-1032-006 | 105-1308-006 |
| 104-1056-006 | 105-1411-006 |
| 104-1557-006 | 105-1141 |
| 104-3155-006 | 105-1001 |
| 105-1134 | 105-1002 |
| 105-1135 | 105-1003 |
| 105-1136 | 105-1004 |
| 105-1137 | 105-1005 |
| 105-1138 | 105-1006 |
| 105-1139 | 105-1007 |
| 105-1140 | 105-1060 |
More displacement, flange and shaft versions available:
Hanjiu technology is the biggest hydraulic motors, orbit motors, low speed high torque motors, torquemotors manufacturer in China
we have the most completely range of them, matching Danfoss/M+S/Charlynn/White/Parker... with fast leading time, excellent price
and best service. our aim is to make your hydraulic system is easy and affordable!
