Product Details:
Payment & Shipping Terms:
|
| Product: | Hydraulic Motor | Model No.: | BME2-315-H4S-S-B |
|---|---|---|---|
| Size: | 315 Ml/r | Flange: | 4 Bolt Square |
| Port: | 7/8-14 O-ring | Shaft: | 25.4mm SAE 6B |
| Rotation: | Standard | Color: | Black |
| Feature: | Replace Parker TE Series | More Size: | 65 - 375 Ml/r Available |
| Highlight: | Black Parker Hydraulic Motor,BME2-315-H4S-S-B Hydraulic Motor,315 ml/r Parker Hydraulic Motor |
||

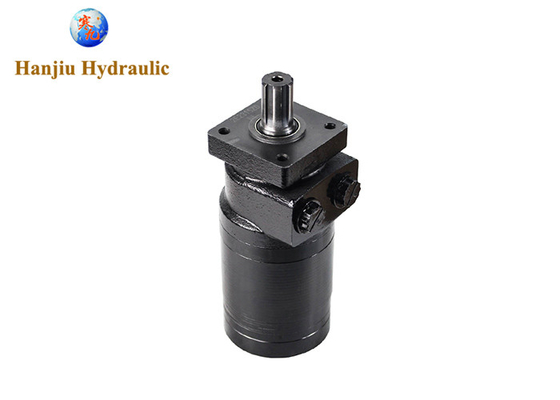

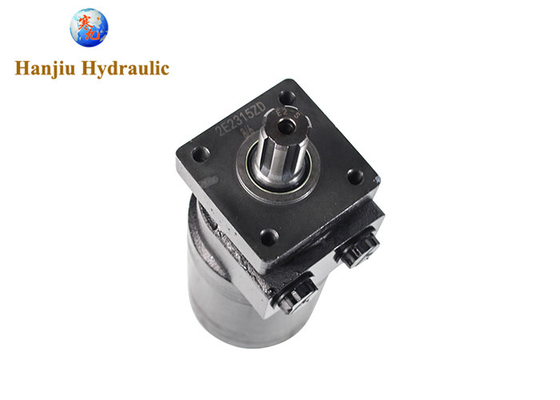

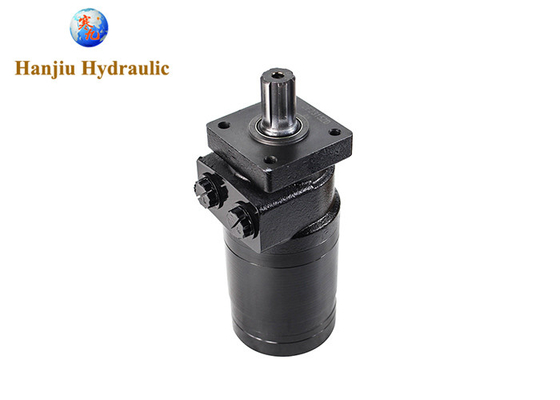

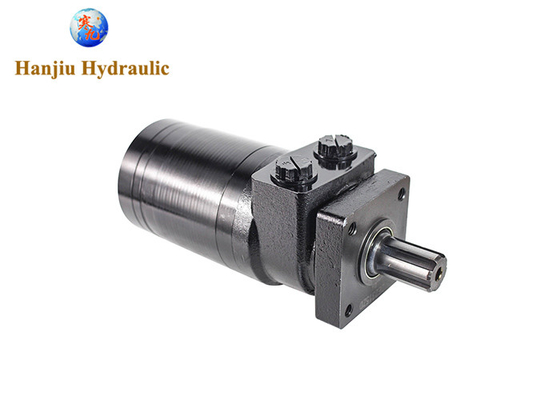

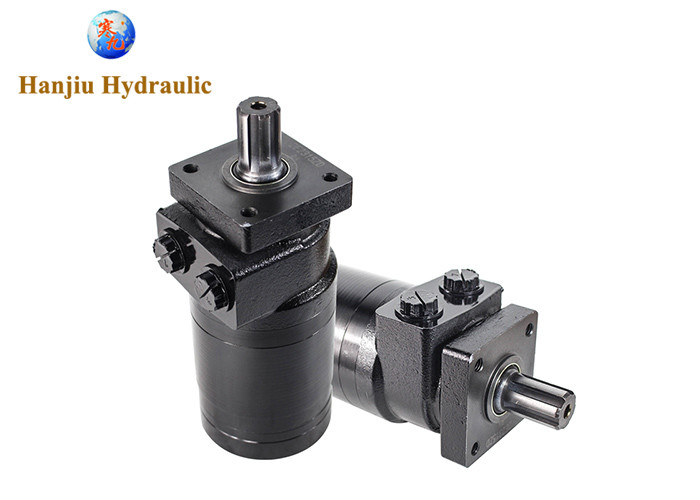

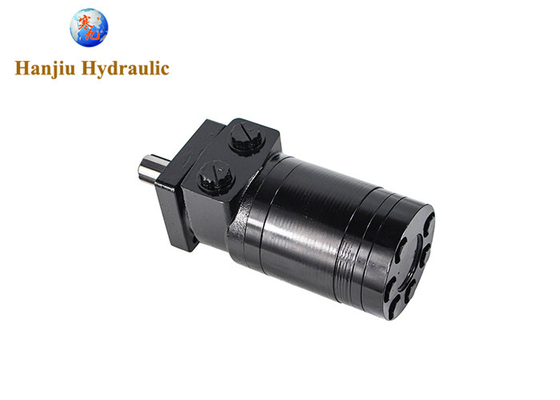

BME2-315-H4S-S-B Parker TE series replacement Hydraulic Motor
Quick review:
Hanjiu BME2 = Parker TE
| Product | Hydraulic Motor |
| Model No. | BME2-315-H4S-S-B |
| Size | 315 ml/r |
| Flange | 4 Bolt square |
| Port | 7/8-14 O-ring |
| Shaft | 25.4mm SAE 6B |
| Rotation | Standard |
| Color | Black |
| More size |
65 ml/r, 80 ml/r, 100 ml/r, 125ml/r 160 ml/r, 200 ml/r, 230 ml/r, 250 ml/r, 295 ml/r, 315 ml/r, 375 ml/r |
Specification:
| Type | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | |
| 65 | 80 | 100 | 125 | 160 | 200 | 230 | 250 | 295 | 315 | 375 | ||
| Geometric displacement (cm3 /rev.) | 66.8 | 81.3 | 101.6 | 127 | 157.2 | 193.6 | 226 | 257 | 287.8 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 667 | 543 | 439 | 350 | 283 | 229 | 247 | 216 | 196 | 178 | 152 |
| int. | 842 | 689 | 553 | 441 | 355 | 289 | 328 | 287 | 254 | 235 | 199 | |
| Max. torque (N•m) | cont. | 126 | 157 | 191 | 245 | 307 | 382 | 378 | 381 | 393 | 448 | 439 |
| int. | 176 | 215 | 268 | 335 | 422 | 520 | 528 | 543 | 547 | 587 | 613 | |
| Max. output (kW) | cont. | 8.3 | 8.8 | 7.9 | 8.9 | 8.9 | 9 | 9.9 | 9.3 | 8.7 | 8 | 7.6 |
| int. | 13.9 | 14.4 | 13.5 | 14.1 | 15.6 | 15.7 | 17.9 | 16.5 | 15.6 | 14.3 | 14 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 14 | 14 | 14 | 14 | 12 | 11 | 10 | 10 | 9 |
| int. | 19 | 19 | 19 | 19 | 19 | 19 | 165 | 15.5 | 14.5 | 13.5 | 12.5 | |
| peak | 20 | 20 | 20 | 20 | 20 | 20 | 18 | 18 | 17 | 16 | 16 | |
| Max. flow (L/min) | cont. | 45 | 45 | 45 | 45 | 45 | 45 | 57 | 57 | 57 | 57 | 57 |
| int. | 57 | 57 | 57 | 57 | 57 | 57 | 75 | 75 | 75 | 75 | 75 | |
Dimention:
More BME2 series to match Parker TE series
More Parker replacement motor available:
More displacement, flange and shaft versions available:
HANJIU TECHNOLOGY is an enterprise specializing in the production of Low speed high torque hydraulic motors. Customers use Hanjiu hydraulic motors as directly replacement for Parker, Danfoss, White, Eaton Char-lynn, M+S, and many more you may find on OEMs. Production more than 200,000 units per year. Our factory specializes in designing and producing any type of motors required by customers, from large to small, from low displacement to high displacement and so on.
