Product Details:
Payment & Shipping Terms:
|

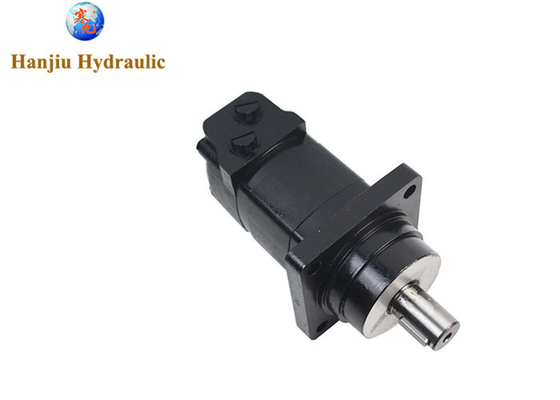

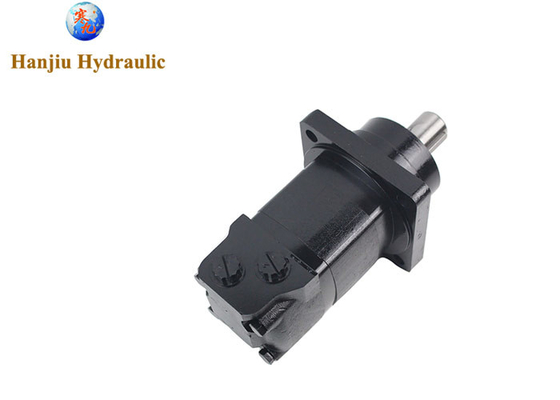

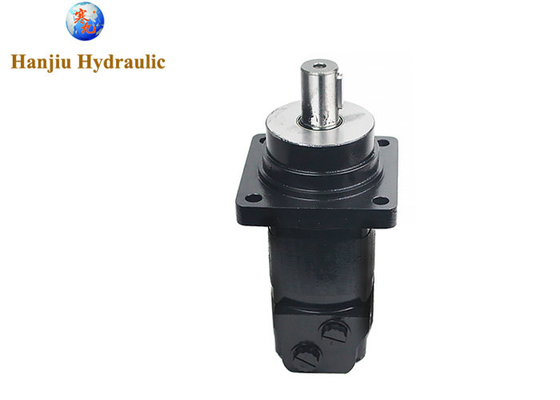

| Item: | Charlynn 2000 Motor | Model: | 105-1140-006 |
|---|---|---|---|
| Flange: | 4 Bolts Wheel Motor | Displacement: | 315 CM3/R |
| Shaft: | 32mm Key Shaft | Port: | G1/2 |
| Highlight: | Charlynn 2k Motor,105-1140-006 Motor,32mm Key Shaft Charlynn Motor |
||
| DISPLACEMENT | 315CC |
|
SERIES
|
2000 Series |
| PORT LOCATION | G 1/2 BSP STRAIGHT THD PORTS - STAGGERED PORTS |
| SHAFT TYPE | 32.00 [1.260] DIA. STRAIGHT SHAFT WITH M8 X 1.25-6H THREAD IN END, 9.982 [.3930]W X 7.995 [.3132]H X 45.00 [1.772]L KEY |
| DRAIN | G 1/4 BSP STRAIGHT THD PORT |
| MAXIMUM SPEED @ CONTINUOUS FLOW | 191 rpm @ 20 gal/min |
| FLOW RATE | 20 gal/min |
| RPM [MAX] | 287 rpm |
| DUTY | Standard-Duty |
| GEROTER/GEROLER OPTIONS | Standard |
| MOUNTING TYPE | WHEEL, 4 BOLT; 108.0 [4.25] PILOT DIA. 13.59 [.535] DIA. HOLES ON 147.6 [5.81] DIA. BOLT CIRCLE. 127.0 [5.00] DIA. REAR MOUNT PILOT |
| TYPE | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | |
| 125CC | 160CC | 200CC | 250CC | 315CC | 400CC | 475CC | ||
| Displacement(ml/r) | 129.8 | 156.8 | 193.4 | 242.5 | 304.3 | 390.8 | 485 | |
| Max.Pressure.Drop(Mpa) | cont. | 21 | 20.5 | 20.5 | 20.5 | 21 | 15.5 | 12 |
| int. | 31 | 26 | 26 | 26 | 24 | 17 | 14 | |
| peak. | 31 | 31 | 31 | 31 | 31 | 20.5 | 17 | |
| Max.Torque(N.m) | cont. | 385 | 455 | 540 | 660 | 765 | 775 | 845 |
| int. | 560 | 570 | 665 | 820 | 885 | 925 | 930 | |
| Speed.Range(r/min) | cont. | 576 | 477 | 385 | 308 | 246 | 191 | 153 |
| int. | 720 | 713 | 577 | 462 | 365 | 287 | 230 | |
| Max.Flow(cont.)(L/min) | cont. | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 95 | 115 | 115 | 115 | 115 | 115 | 115 | |
| Weight(kg) | 10 | 10.2 | 10.5 | 11 | 11.5 | 12 | 12.4 | |
TYPES WE SUPPLY :
Hanjiu technology is the biggest hydraulic motors, orbit motors, low speed high torque motors, torquemotors manufacturer in China
we have the most completely range of them, matching Danfoss/M+S/Charlynn/White/Parker... with fast leading time, excellent price
and best service. our aim is to make your hydraulic system is easy and affordable!
