| Product Name: | Hydraulic Orbital Motors | Displacement: | 36cc,50cc,80cc,100cc,125cc,160cc......500cc |
|---|---|---|---|
| Max.speed: | 780rpm | Max.torque: | Peak 270 N.M |
| Max.flow: | Cont 60/int.75 L/min | Warranty: | 12months |
| Highlight: | 50cc Hydraulic Orbit Motors,25.4mm Key Shaft Orbit Motor,Orbit Motor With BSPP Ports G1/2 |
||

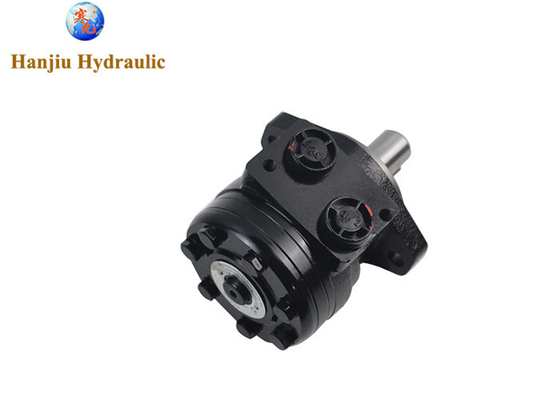

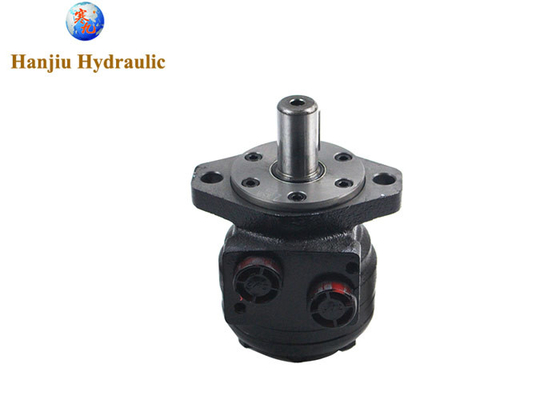

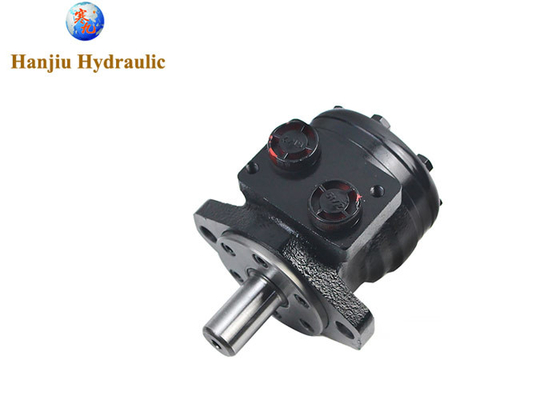

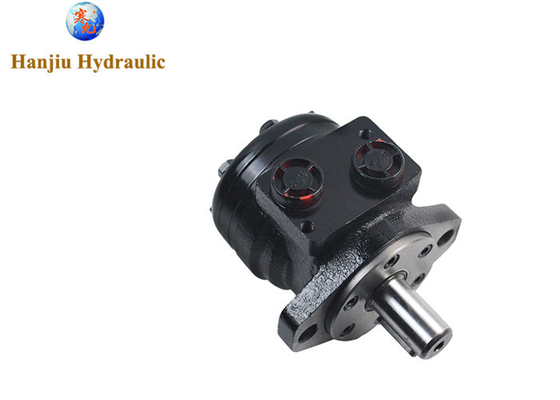

hydraulic orbit motors OK Series motor, 50cc, 25.4mm key shaft, with BSPP ports G1/2
OK series motor adapt the advanced Geroler gear set design with shaft distribution flow, which can automatically compensate in operating with high pressure, provide reliable and smooth operation, high efficiency and long life.
Product details:
| product type | OK motors |
| displacement | 50cc |
| flange | 2-φ13.5 Rhomb-flange pilot φ82.5x6.2 |
| shaft | 25mm key shaft |
| oil ports | G1/2 manifold mount 4-M8,G1/4 |
Main Specifications:
Technical data for OK with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
| Code | Displacement/ [cm/rev] |
Max.Speed/ [rpm] |
Max.Torque/[Nm] | Max.output/[kW] | Max.pressure/[MPa] | Max.Oil Flow[L/min] | |||
| cont. | cont. | int. | cont. | int. | cont. | int. | cont. | ||
| OK 36 | 36 | 1111 | 66 | 83 | 9 | 10.4 | 14 | 17.5 | 40 |
| OK 50 | 51.7 | 780 | 100 | 129 | 9 | 10.4 | 14 | 17.5 | 40 |
| OK 80 | 81.5 | 744 | 158 | 196 | 10.4 | 12.6 | 14 | 17.5 | 60 |
| OK 100 | 102 | 595 | 200 | 242 | 10.8 | 12.8 | 14 | 17.5 | 60 |
| OK 125 | 127.2 | 480 | 248 | 298 | 10.8 | 12.5 | 14 | 17.5 | 60 |
| OK 160 | 157.2 | 382 | 315 | 384 | 10.4 | 11.5 | 14 | 17.5 | 60 |
| OK 200 | 194.5 | 301 | 339 | 419 | 8.8 | 10.2 | 12.5 | 15.5 | 60 |
| OK 250 | 253.3 | 238 | 403 | 474 | 8.1 | 9.4 | 11 | 14 | 60 |
| OK 315 | 317.5 | 191 | 398 | 498 | 7.4 | 7.8 | 9 | 12.5 | 60 |
| OK 375 | 381.4 | 162 | 373 | 466 | 6.2 | 7.1 | 7.5 | 9 | 60 |
Other types we supply as below:
The orbital hydraulic motor is a type of hydraulic motor that converts hydraulic pressure into mechanical power. The motor consists of a rotor and stator, both of which are designed to rotate around a central axis. The rotor is driven by the hydraulic fluid, which is forced into the motor through an inlet port. The stator is fixed and serves as a housing for the rotor. As the rotor rotates, it produces torque that is transferred to the output shaft.
There are many different types of orbital hydraulic motors, each with its own unique features and specifications. Some of the most common types include gerotor motors, geroler motors, and radial piston motors. Gerotor motors are known for their high efficiency and low noise levels. Geroler motors are similar to gerotor motors but have a higher torque capacity. Radial piston motors are the most powerful type of orbital hydraulic motor and are used in heavy-duty applications.
hanjiu technology not only supply the types of hydraulic motors, but also provide a range of services, including repair and maintenance, technical support, and customization. we work closely with customers to understand their specific needs and requirements and provide solutions that meet those needs.
