Product Details:
Payment & Shipping Terms:
|
| Item: | Sectional Valve | Model: | SD8 |
|---|---|---|---|
| Bank: | 6 Bank | Flow Rate: | 80 LPM |
| Control: | Joystick And Manual | Max. Pressure: | 315 Bar |
| Highlight: | SD8 Sectional Control Valves,SD8 Directional Control Valves,80 LPM Directional Control Valves |
||

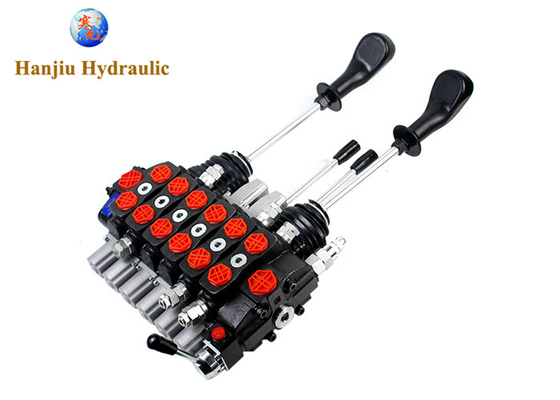

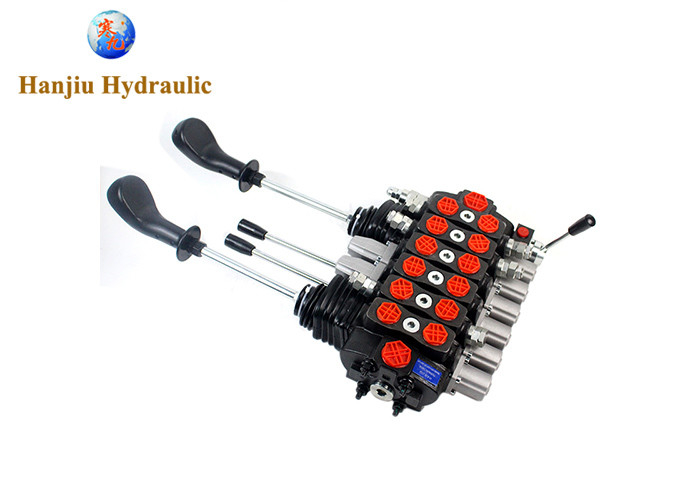

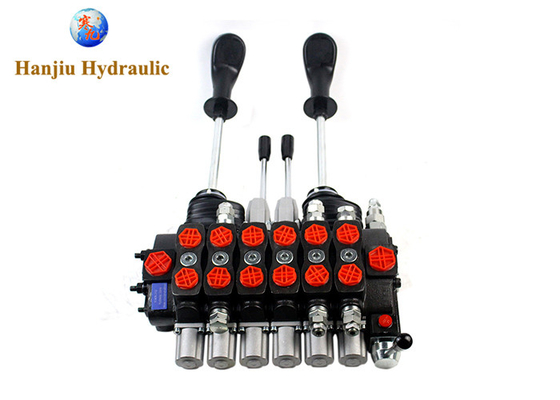

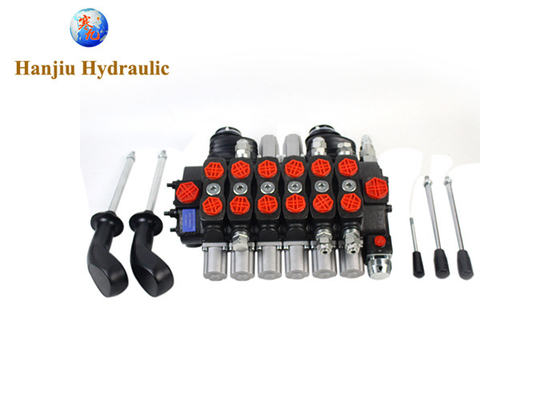

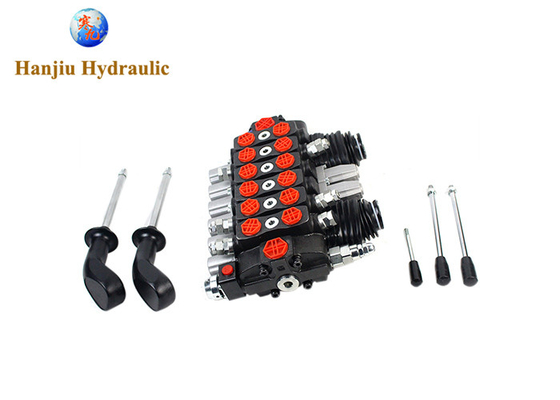

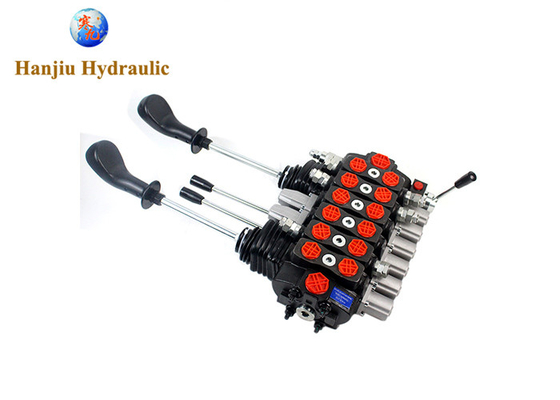

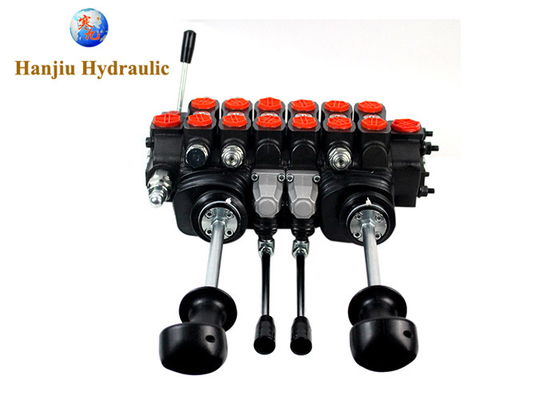

SD8 Sectional Directional Control Valves Walvoil replacement with pressure regulator
Quick View:/
Hanjiu offers hydraulic Sectional Directional Control Valves compatible with Walvoil SD8
This valve with pressure regulator inlet side
6 banks
2 joystick, 2 manual
Flow 80 l/m
Pressure: Max 315 bar
Features:
| Main pressure relief valve and a load check valves fitted on every working section | Yes |
| Available with parallel, tandem or series circuits | Yes |
| Optional carry-over port | Yes |
| A wide range of ports and circuit valves | Yes |
| Intermediate sections for several types of circuit | Yes |
| Potential for manual, pneumatic, hydraulic, electro-hydraulic and remote flexible cable spool control kits | Yes |
More series available:
| 1 | walvoil sd5 pdf |
| 2 | walvoil sd11 |
| 3 | walvoil loader valve |
| 4 | walvoil sd6 |
| 5 | walvoil sd4 |
| 6 | walvoil sd8 |
| 7 | walvoil sd14 |
| 8 | walvoil sd18 |
| 9 | walvoil sd25 |
| 10 | walvoil monoblock valves |
About the supplier:
Hanjiu is a hydraulic manufacturer and exporter from China. Hydraulic directional control valve is one of our specialties, we are good at Walvoil DF5, SD4, SD5, SD8, SD11, SD14, SD18, SD25 and other series. Below is a selection of our high-end compatible hydraulic directional control valves for Walvoil dealers and users for your reference. We also offer more hydraulic directional control valves
