Hydrocontrol SD8 Series Hydraulic Joystick Control Valve 90 Liters 6 Levers With 2 Joysticks

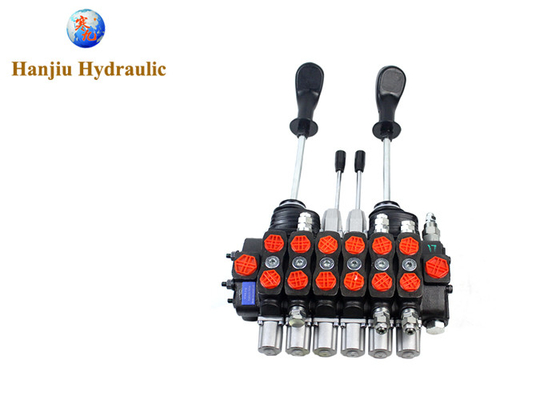

Large Image : Hydrocontrol SD8 Series Hydraulic Joystick Control Valve 90 Liters 6 Levers With 2 Joysticks

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU
Certification:	ISO9001:2015
Model Number:	HSSD8

Payment & Shipping Terms:

Minimum Order Quantity:	30 units
Price:	Negotiable
Packaging Details:	Carton Packing and finally with a Tray, or Wooden Box
Delivery Time:	10-15 work days
Payment Terms:	L/C, T/T
Supply Ability:	300000 sets per year

Contact Now

Detailed Product Description

Model No.:	HSSD8	Warranty:	1year
Spool:	6 With Joysticks	Flow:	90liters
Function:	O/Y/P/A	Application:	Wood Logger Machines,forestry Machines
Highlight:	Hydrocontrol SD8 Hydraulic Joystick Control Valve , Hydraulic Joystick Control Valve 90 Liters , Hydraulic Joystick Control Valve 6 Levers

Hydrocontrol SD8 Series Hydraulic Joystick Control Valve 90 liters,6 levers with 2 joysticks

Specfication:

Suitable Media	Hydraulic Oil
Connection diameter	3/4 inch
Manufacturer number	HSSD8
Spool Count	6-Spools
Valve Operation	Manual control
Maximum Pressure	4500 psi
Brand	Hanjiu Hydraulic
Maximum Flow Rate	25 gpm
Port size	G3/4
control	Joystick valves

Hydrocontrol SD8 Series Hydraulic Joystick Control Valve 90 Liters 6 Levers With 2 Joysticks 0

can replace the below type

Hydrocontrol (HC-D3M/7; HC-D4/7)
Youli (SN-4/7)
Akon (KV177)
Walvoil (SDM 100/7)
DANA Brevini (DCV 50/7)
Badestnost (7ZC70)
BLB Hydraulic (BC 50/7)
Salami (VD6A/7)
BLB Hydraulic (BMK7)

Hydrocontrol SD8 Series Hydraulic Joystick Control Valve 90 Liters 6 Levers With 2 Joysticks 3
