Product Details:
Payment & Shipping Terms:
|
| Type: | Orbital Motor, Hydraulic Motor | Brand: | HANJIU |
|---|---|---|---|
| Model No.: | 113-1163-006 | Displacement: | 500ml/r |
| Flange: | Wheel Mount | Shaft: | 1:8 45mm Tapper Shaft |
| Port Size: | 1 5/16-12UN | Drain Line: | 7/16-20UNF |
| Highlight: | 500cc motor With Wheel Mount,500cc Orbital Hydraulic motor,Eaton Charlynn 113-1163-006 Replacement motor |
||

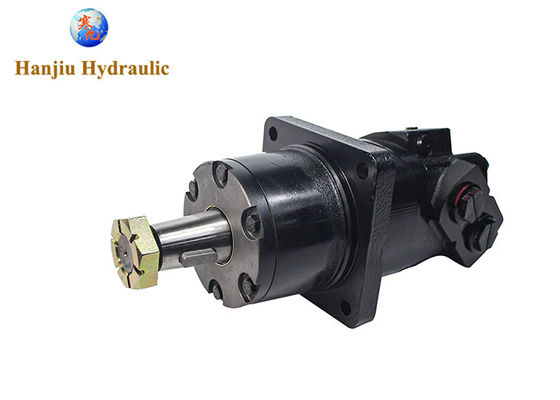

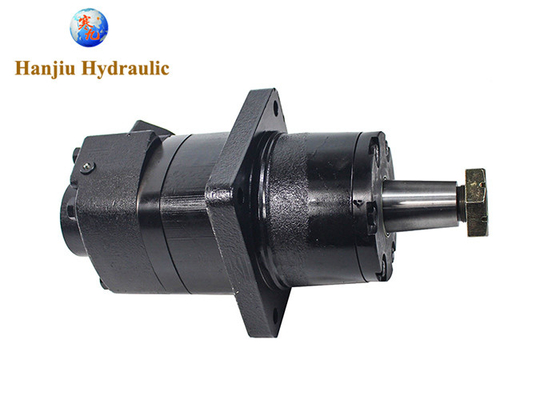

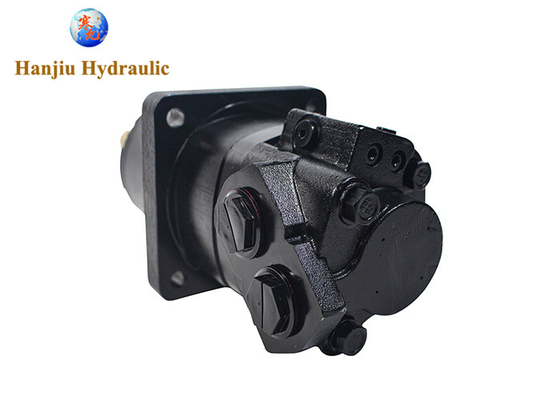

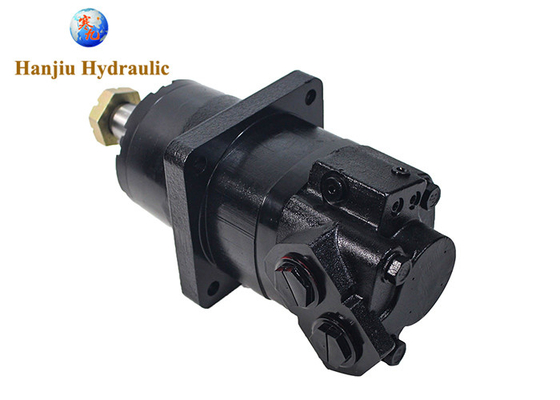

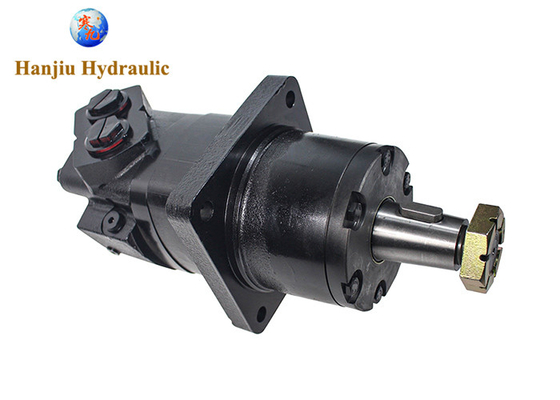

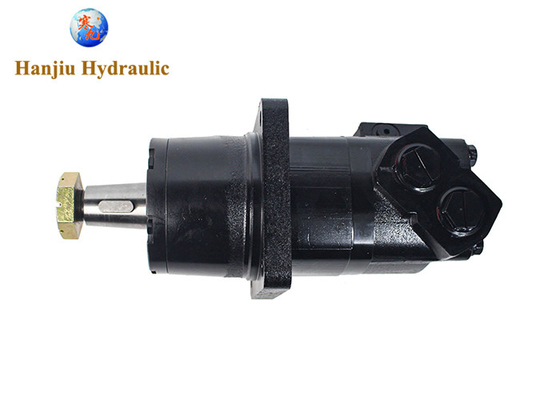

Eaton Charlynn 113-1163-006 replacement, 500cc with wheel mount, 1:8 45mm Tapper Shaft
Quick review:
BMK6-500-W-T1-SF5 = Eaton Char lynn 113-1163-006
Output volume (cc/rev): 500
Shaft Ø (mm): 1:8 45mm Tapper Shaft
max r.p.m.: 455
Torque max. (Nm): 1880
Pressure difference (bar): 300
Volume flow max. (l/min): 225
Shaft seal version: Standard
Engine version: standard
Connection: 1 5/16-12UN
Leakage oil connection: 7/16-20UNF
Main specifiction:
| TYPE | BMK6 200 |
BMK6 250 |
BMK6 315 |
BMK6 400 |
BMK6 500 |
BMK6 630 |
BMK6 800 |
BMK6 1000 |
|
| Displacement(ml/r) | 195.6 | 246.1 | 311.6 | 391.3 | 490.8 | 623 | 802.4 | 981.6 | |
| Max.speed(rpm) | cont. | 765 | 610 | 480 | 382 | 304 | 240 | 186 | 152 |
| int. | 865 | 830 | 690 | 570 | 455 | 360 | 280 | 230 | |
Max.Pressure.Drop(Mpa) |
cont. | 20 | 20 | 20 | 20 | 20 | 17.5 | 14 | 14 |
| int. | 30 | 30 | 30 | 30 | 27.5 | 22.5 | 15.5 | 14 | |
| peak. | 30 | 30 | 30 | 30 | 30 | 24 | 17.5 | 17 | |
| Max.Torque(N.m) | cont. | 565 | 710 | 920 | 1160 | 1445 | 1480 | 1580 | 1675 |
| int. | 840 | 1080 | 1325 | 1625 | 1880 | 1890 | 1880 | 1860 | |
| Max.Flow(cont.)(L/min) | cont. | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
| int. | 170 | 205 | 225 | 225 | 225 | 225 | 225 | 225 | |
| Weight(kg) | 26.3 | 26.8 | 27.3 | 28 | 28.8 | 29.6 | 30.5 | 32 | |
Measurement:
More BMK6 hydraulic motor available to compatibel with Eaton Charlynn 6000 (112-, 113-, 114-):
| 112-1064 | 112-1065 | 112-1066 | 112-1067 | 112-1068 | 112-1107 | 112-1145 |
| 112-1094 | 112-1095 | 112-1096 | 112-1097 | 112-1098 | 112-1099 | 112-1069 |
| 112-1058 | 112-1059 | 112-1060 | 112-1061 | 112-1062 | 112-1109 | 112-1163 |
| 112-1088 | 112-1089 | 112-1090 | 112-1091 | 112-1092 | 112-1093 | 112-1063 |
| 113-1082 | 113-1083 | 113-1084 | 113-1085 | 113-1086 | 113-1100 | 113-1087 |
| 113-1070 | 113-1071 | 113-1072 | 113-1073 | 113-1074 | 113-1093 | 113-1075 |
| 114-1031 | 114-1032 | 114-1033 | 114-1034 | 114-1035 | 114-1055 | 114-1036 |
| 114-1043 | 114-1044 | 114-1045 | 114-1046 | 114-1047 | 114-1048 |
More Char-lynn version hydraulic motors available:
About Hanjiu:
From China, design, develop and manufacture hydraulic orbital motors. Shipped to all over the world, customers use Hanjiu hydraulic motors directly as compatible motors for Danfoss, M+S, Eaton, Parker, White, Dana Brevini. Obtain the maximum benefit with the minimum cost, and you have no risk in cooperating with Hanjiu. If you are hydraulic motor importer, wholesaler, OEM factory, contact us to discuss cooperation and get big customer discount.
