Product Details:
Payment & Shipping Terms:
|
| Type: | Orbital Motor, Hydraulic Motor | Brand: | HANJIU |
|---|---|---|---|
| Model No.: | BMK2-200-E2-I-SU | Displacement: | 200ml/r |
| Flange: | 2 Bolt | Shaft: | 22mm Sub-shaft Spline 13-DP16/32 |
| Port Size: | 7/8-14UNF O-RING | Drain Line: | 7/16-20UNF |
| Highlight: | BMK2 Hydraulic Motor,200cc Hydraulic Motor With A2 Flange,200cc Hydraulic Motor 200ml/r |
||

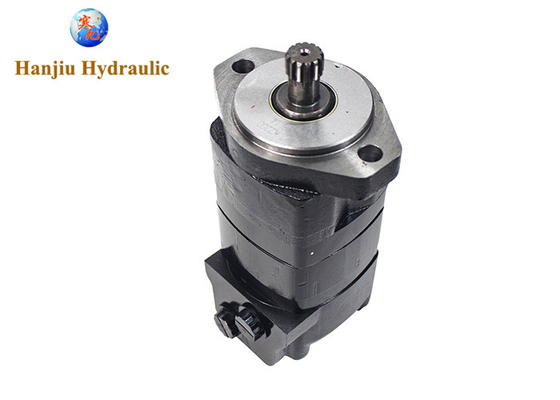

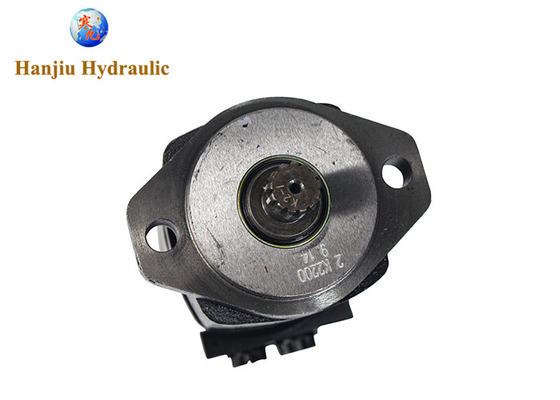

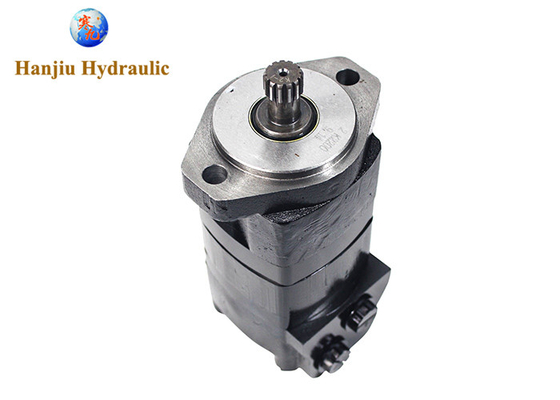

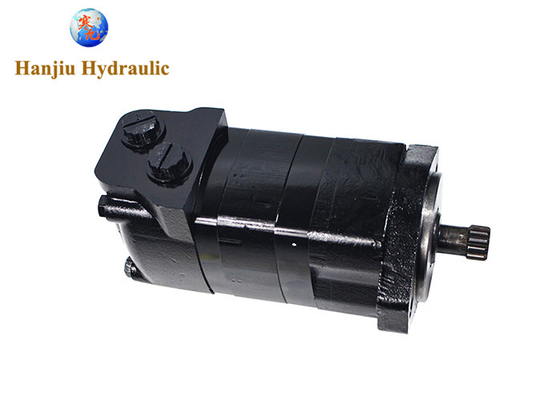

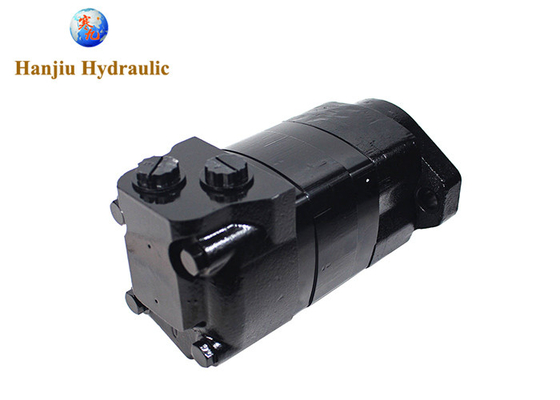

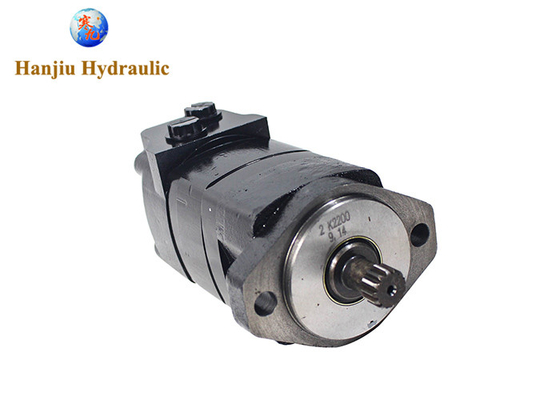

BMK2 Hydraulic Motor, Char-Lynn 104- Version, 200cc With A2 Flange, Sub Shaft Spline 13-DP16/32
104- series Hydraulic Motor, Char-lynn version, 200cc with A2 flange, sub shaft spline 13-DP16/32
Quick review:
Output volume (cc/rev): 200
Shaft Ø (mm): 22mm
max r.p.m.: 577
Torque max. (Nm): 665
Pressure difference (bar): 310
Volume flow max. (l/min): 115
Shaft seal version: Standard
Engine version: standard
Connection: 7/8-14UNF O-RING
Leakage oil connection: 7/16-20UNF
Main specifiction:
| Main Specifications: | |||||||||||
| Type | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | |
| 65 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 475 | ||
| Geometric displacement (cm3 /rev.) |
65 | 80 | 100.9 | 129.8 | 156.8 | 193.4 | 242.5 | 304.3 | 390.8 | 485 | |
| Max. speed (rpm) | cont. | 835 | 800 | 742 | 576 | 477 | 385 | 308 | 246 | 191 | 153 |
| int. | 990 | 980 | 924 | 720 | 713 | 577 | 462 | 365 | 287 | 230 | |
| Max. torque (N·m) | cont. | 185 | 235 | 295 | 385 | 455 | 540 | 660 | 765 | 775 | 845 |
| int. | 245 | 345 | 445 | 560 | 570 | 665 | 820 | 885 | 925 | 930 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 21 | 21 | 21 | 20.5 | 20.5 | 20.5 | 21 | 15.5 | 12 |
| int. | 27.5 | 31 | 31 | 31 | 26 | 26 | 26 | 24 | 17 | 14 | |
| peak | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 20.5 | 17 | |
| Max. flow (L/min) | cont. | 55 | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 65 | 80 | 95 | 95 | 115 | 115 | 115 | 115 | 115 | 115 | |
| Weight (kg) | 9.2 | 9.4 | 9.7 | 10 | 10.2 | 10.5 | 11 | 11.5 | 12 | 12.4 | |
| * Continuous pressure :Max. value of operating motor continuously. | |||||||||||
| * Intermittent pressure :Max. value of operating motor in 6 seconds per minute. | |||||||||||
| * Peak pressure:Max. value of operating motor in 0.6 second per minute. | |||||||||||
Measurement:
More BMK2 motor, BMK2 - Orbital Motor (Displacement 65 – 500 CC) available:
More Char-lynn version hydraulic motors available:
About Hanjiu:
From China, design, develop and manufacture hydraulic orbital motors. Shipped to all over the world, customers use Hanjiu hydraulic motors directly as compatible motors for Danfoss, M+S, Eaton, Parker, White, Dana Brevini. Obtain the maximum benefit with the minimum cost, and you have no risk in cooperating with Hanjiu. If you are hydraulic motor importer, wholesaler, OEM factory, contact us to discuss cooperation and get big customer discount.
