Product Details:
Payment & Shipping Terms:
|
| Item: | Torqmotor | OEM #: | 500750A5823CAAAA |
|---|---|---|---|
| Manufacturer: | Hanjiu | Displacement: | 750 Ml/r |
| Mounting Flange: | 6-Hole Front Aligned Ports 1/2” BSP.F | Shaft Type: | 31.75mm,14 Teeth Shaft |
| Highlight: | Danfoss Hydraulic Motor 14 Tooth,14 Tooth Spline Shaft motor,Danfoss Hydraulic Motor 500750A5823CAAAA |
||

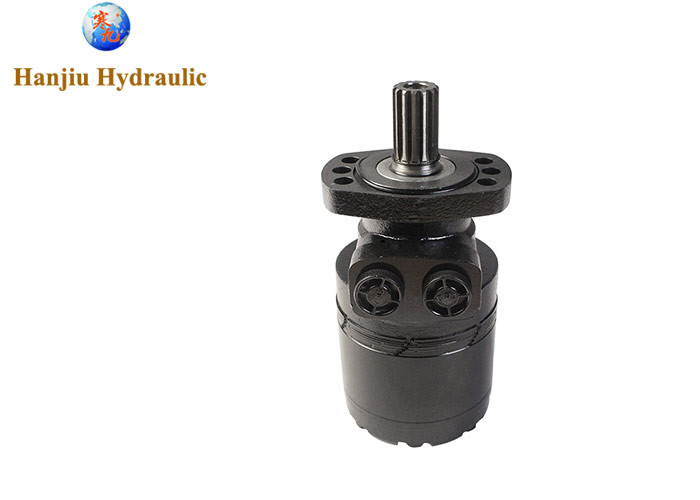

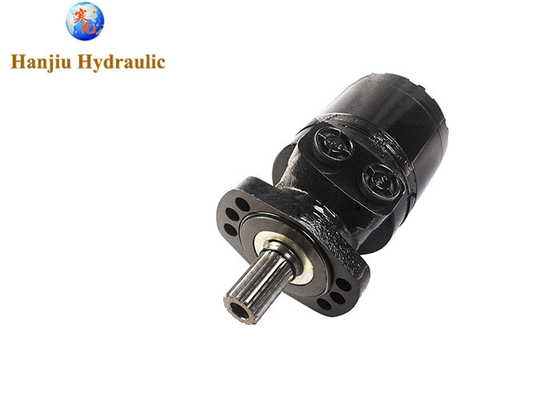

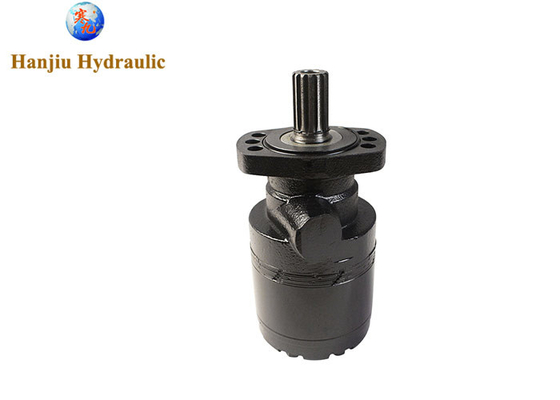

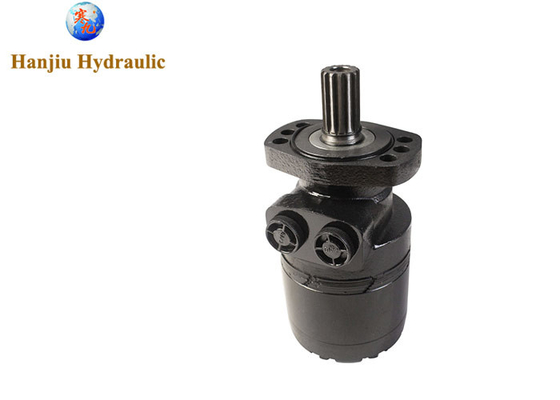

HANJIU supply the high Torqmotors BMER Series orbit motors matching white/danfoss/cross series motors, the same function,same specification, 100% interchangeable. Details specifications BMER-2 125 BMER-2 160 BMER-2 200 BMER-2 230 BMER-2 250 BMER-2 300 BMER-2 350 BMER-2 375 BMER-2 475 BMER-2 540 BMER-2 750 Geometric displacement (cm3 /rev.) White Danfoss RE Hydraulic Torqmotor 500750A5823CAAAA 14 Tooth Spline Shaft motor
Series:
RE500/501
Shaft:
31.75mm,14 Tooth Spline shaft
Rotation:
Reverse Time
Displacement (cm3/rev):
0750
Mounting:
6-Hole Front Aligned Ports 1/2” BSP.F
Geometric Displacement:
750cm3/rev (45.6 in3/rev)
Maximum Speed:
320 rev/min
Maximum Oil Flow (continuous / intermittent):
100 lpm /130 lpm
Max. Differential Pressure (continuous / intermittent):
1500 PSI / 2000 PSI
Maximum Supply Pressure:
2000 PSI
Maximum Torque - Continuous / Intermittent:
9400 lb-in / 10950 lb-in
Maximum Performance:
33 KW (45HP)
Main Specifications:
Type
118
156
196
228
257
296
345
371
462
540
745
Max. speed (rpm)
cont.
360
375
330
290
290
250
220
200
160
140
100
int.
490
470
425
365
350
315
270
240
195
170
120
Max. torque (N*m)
cont.
325
450
530
625
700
810
905
990
1085
980
1050
int.
380
525
600
710
790
930
1035
1140
1180
1240
1180
peak
450
590
750
870
980
1120
1285
1360
1260
1380
1370
Max. output (kW)
cont.
12.0
15
15.5
16.0
17.5
18.0
17.5
16.5
14.5
11.5
8.0
int.
14.0
17.5
18.0
19.0
20.0
21.0
20.0
19.0
16.5
15.0
10.0
Max. pressure drop (MPa)
cont.
20.5
20.5
20.5
20.5
20.5
20.5
20.5
20.5
17.5
14
10.5
int.
24
24
24
24
24
24
24
24
19
17.5
12
peak
27.6
27.6
27.6
27.6
27.6
27.6
27.6
27.6
20.5
20.5
14
Max. flow (L/min)
cont.
45
60
70
70
75
80
80
75
75
75
75
int.
60
75
85
85
90
95
95
90
90
90
90
Dependable Power, Affordable Price
The RE Series motors offer the perfect compromise between price and performance by producing work horse power at a reasonable
cost. Although these motors perform well in a wide range of applications, they are especially suited for low flow, high pressure applications.
During startup, pressure causes the balance plate to flex toward the rotor, vastly improving volumetric efficiency. As the motor reaches operating pressure, the balance plate relaxes,allowing the rotor to turn freely which translates into higher mechanical efficiencies. Transmitting this power to the output shaft is the most durable drive link in its class. Three bearing options,combined with standard mounting flanges and output shafts, allow the motor to be configured to suit nearly any application.
