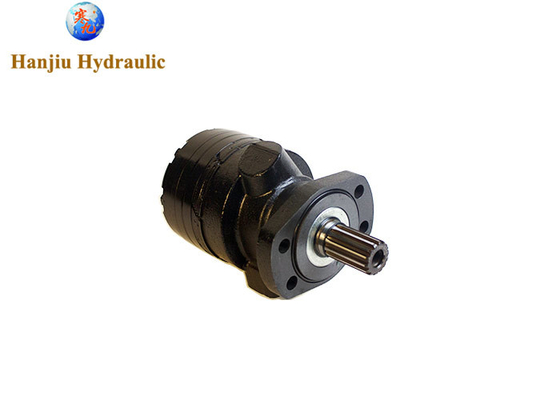

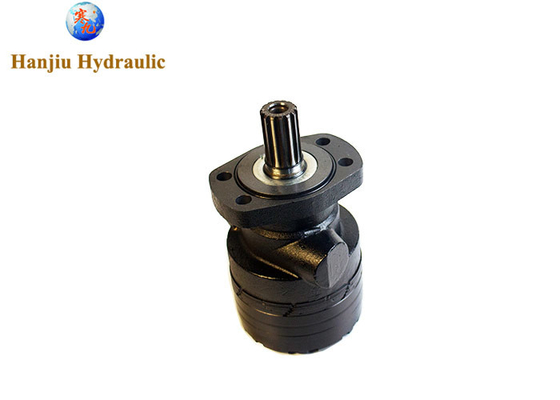

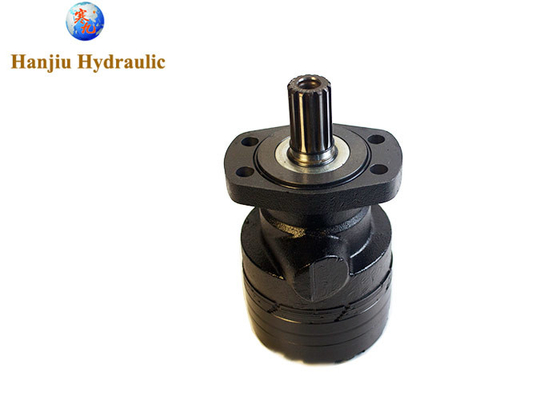

CE High Torqmotor CROSS Hydraulic Motor 500300A3123ZAAAA 4 Hole Front Ports

Large Image : CE High Torqmotor CROSS Hydraulic Motor 500300A3123ZAAAA 4 Hole Front Ports

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE
Model Number:	BMER-2-300

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Contact the seller to get a quote
Packaging Details:	Box, Pallet
Delivery Time:	55 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	10000 pieces per year

Contact Now

Detailed Product Description

Item:	Torqmotor	OEM #:	500300A3123ZAAAA
Manufacturer:	Hanjiu	Displacement:	300 Ml/r
Mounting Flange:	7/8-14 SAE	Shaft Type:	14 Teeth Shaft
Highlight:	CROSS Hydraulic Motor 500300A3123ZAAAA , High Torqmotor CROSS Hydraulic Motor , CE High Torque Hydraulic Motor

High Torqmotor CROSS Hydraulic Motor 500300A3123ZAAAA 4-Hole Front Ports 7/8" O-ring (S)

HANJIU supply the LSHT Torqmotors BMER Series motors matching white/danfoss/cross series motors, the same function,

same specification, 100% interchangeable.

Details specifications

Series:	RE500/501
Shaft:	14 Tooth Spline
Rotation:	Reverse Timed Manifold
Displacement (cm3/rev):	0300
Mounting:	4-Hole Front Aligned Ports 7/8” O-Ring
Geometric Displacement:	300cm3/rev (18.3 in3/rev)
Maximum Speed:	320 rev/min
Maximum Oil Flow (continuous / intermittent):	76 lpm (20 gpm) / 95 lpm (25 gpm)
Max. Differential Pressure (continuous / intermittent):	207 bar (3000 PSID) / 276 bar (4000 PSID)
Maximum Supply Pressure:	300 bar (4350 PSIG)
Maximum Torque - Continuous / Intermittent:	7300 lb-in / 8300 lb-in
Maximum Performance:	33 KW (45HP)

Main Specifications:

Type		BMER-2 125	BMER-2 160	BMER-2 200	BMER-2 230	BMER-2 250	BMER-2 300	BMER-2 350	BMER-2 375	BMER-2 475	BMER-2 540	BMER-2 750
Geometric displacement (cm3 /rev.)		118	156	196	228	257	296	345	371	462	540	745
Max. speed (rpm)	cont.	360	375	330	290	290	250	220	200	160	140	100
Max. speed (rpm)	int.	490	470	425	365	350	315	270	240	195	170	120
Max. torque (N*m)	cont.	325	450	530	625	700	810	905	990	1085	980	1050
	int.	380	525	600	710	790	930	1035	1140	1180	1240	1180
	peak	450	590	750	870	980	1120	1285	1360	1260	1380	1370
Max. output (kW)	cont.	12.0	15	15.5	16.0	17.5	18.0	17.5	16.5	14.5	11.5	8.0
Max. output (kW)	int.	14.0	17.5	18.0	19.0	20.0	21.0	20.0	19.0	16.5	15.0	10.0
Max. pressure drop (MPa)	cont.	20.5	20.5	20.5	20.5	20.5	20.5	20.5	20.5	17.5	14	10.5
	int.	24	24	24	24	24	24	24	24	19	17.5	12
	peak	27.6	27.6	27.6	27.6	27.6	27.6	27.6	27.6	20.5	20.5	14
Max. flow (L/min)	cont.	45	60	70	70	75	80	80	75	75	75	75
Max. flow (L/min)	int.	60	75	85	85	90	95	95	90	90	90	90

CE High Torqmotor CROSS Hydraulic Motor 500300A3123ZAAAA 4 Hole Front Ports 0

CE High Torqmotor CROSS Hydraulic Motor 500300A3123ZAAAA 4 Hole Front Ports 1

CE High Torqmotor CROSS Hydraulic Motor 500300A3123ZAAAA 4 Hole Front Ports 2

CE High Torqmotor CROSS Hydraulic Motor 500300A3123ZAAAA 4 Hole Front Ports 3

PARKER Hydraulic Motors

TB
TE
TF
TG
TJ

CE High Torqmotor CROSS Hydraulic Motor 500300A3123ZAAAA 4 Hole Front Ports 4
