Product Details:
Payment & Shipping Terms:
|
| Item: | LSHT Motor | OEM #: | 162-1022-004 |
|---|---|---|---|
| Manufacturer: | Hanjiu | Displacement: | 375 Ml/r |
| Mounting Flange: | 4 Bolt Wheel Mount | Shaft Type: | Taper |
| Highlight: | 162-1022-004 Char Lynn Hydraulic Motor,162-1022-004 eaton hydraulic motor,Char Lynn Hydraulic Motor 375ml/R |
||

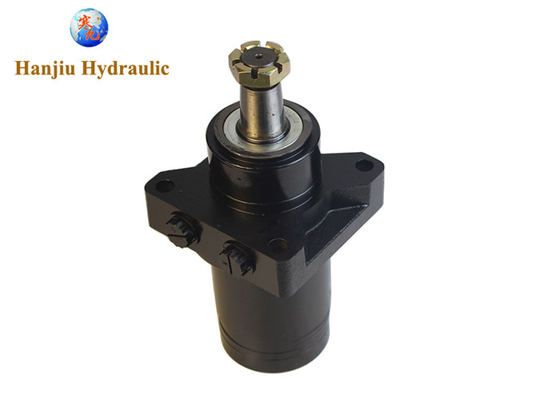

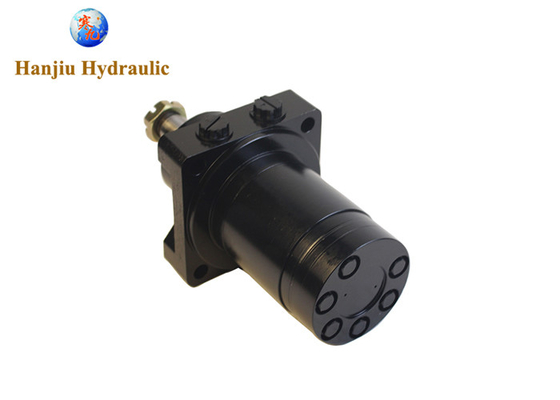

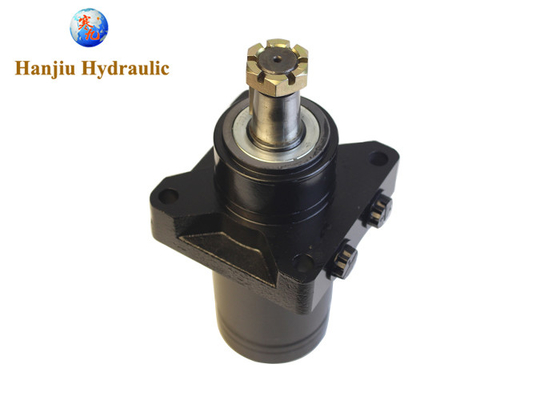

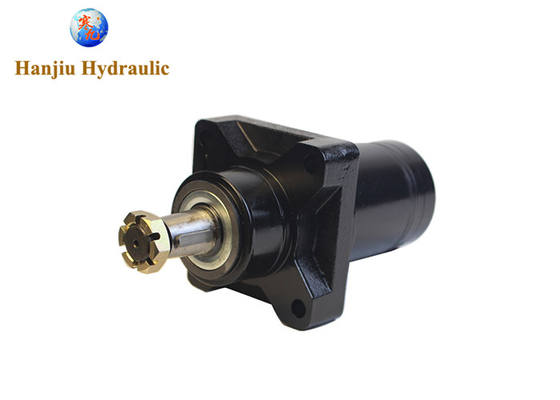

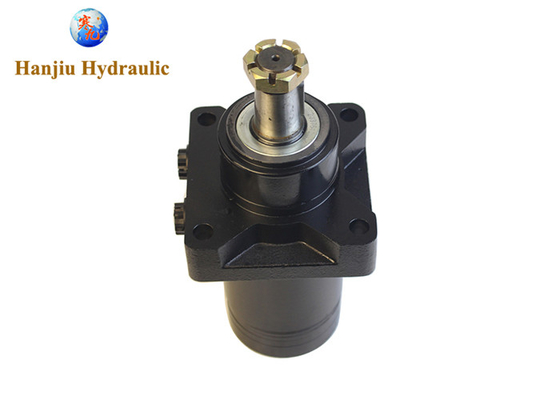

162-1022-004 Eaton Char-lynn hydraulic motor power steering replacement Quick review: 162-1022-004 Eaton Char-lynn hydraulic motor power steering replacement More Eaton Charlynn Hydraulic Motor equivalent available: A manufacturing brand from China, specializing in low-speed high-torque motors, customer base includes wholesalers, importers, OEMs, they replace Danfoss, White, Eaton, Dana Brevini with Hanjiu low-speed high-torque motors. Hanjiu motors are not expensive, but high quality and fast delivery. We introduce Hanjiu as advantage supplement of your current hydraulic supply, solve reliability, quality, time, cost, brand promotion. If you are a hydraulic importers, contact us to talk work together.
W series,
162-1022-004, M0W23B03AC00000D
Rotation
Port A Pressurized — CW
0W –
W Series
23 –
374 ml [22.8]
B –
4 Bolt (Wheel) 82,6 [3.25] Pilot Dia. and 13,59 [.535] Dia. Mounting Holes 147,6 [5.81], Dia., B.C., 127,0 127,0 [5.00] rear pilot
03 –
1 1/4 inch Dia. .125:1 Tapered Shaft Per SAE J501 with 1– 20 UNEF -2A Threaded Shaft End and Slotted Hex Nut, 7,938 [.3125] Square x 22,22 [.875] Straight Key
A –
7/8 -14 UNF - 2B SAE O-Ring Port
C –
Internal Check Valve
00 –
None
0 –
None
0 –
No Paint, Individual Box
0 –
Assigned Code
D –
Assigned Design Code
J
(129-)
H
(101-)
S
(103-)
T
(158-)
W
(162-)
2000
(104-, 105-, 106-, 193-)
4000
(109-, 110-, 111-)
6000
(112-, 113-, 114-)
10000
( 119-)
