| Item: | LSHT Motor | OEM #: | TG0475UM460AAAA |
|---|---|---|---|
| Manufacturer: | Hanjiu | Displacement: | 475 Ml/r |
| Mounting Flange: | Wheel Flange | Shaft Type: | 32mm Key Shaft |
| Highlight: | TG0475UM460AAAA lsht hydraulic motor,lsht hydraulic motor 475cm3,parker lsht motors 475cm3 |
||

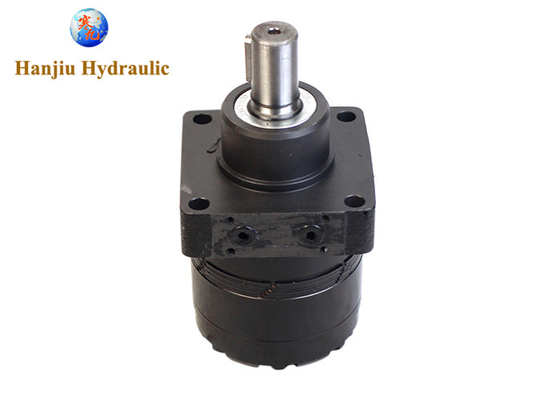

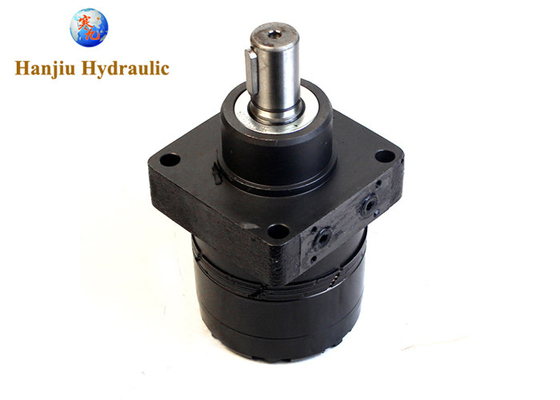

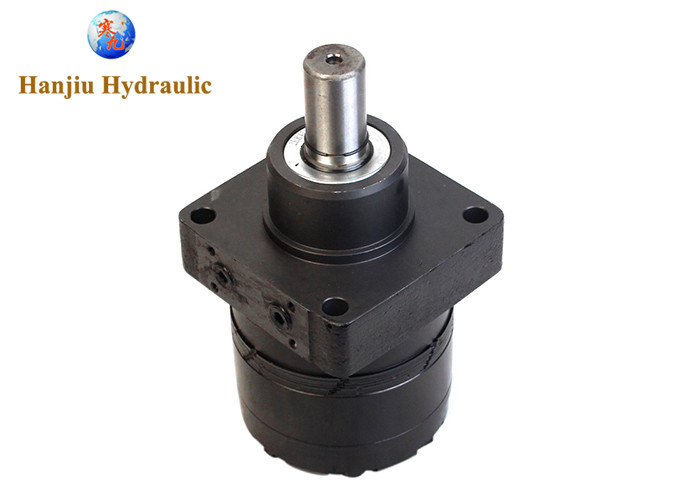

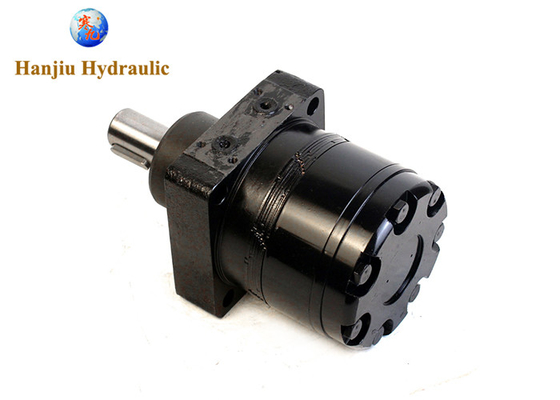

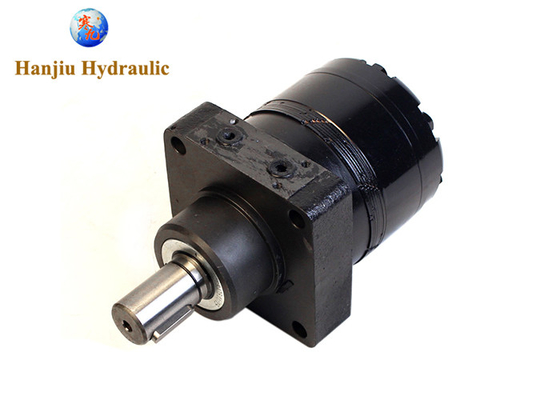

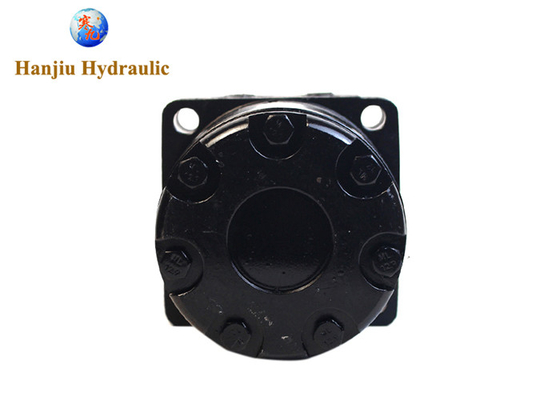

TG0475UM460AAAA, TG Series, 475cm³ Displacement, 32mm key shaft Quick review: This is Parker compatible motor with same form, fit and function Apply to lown mower and tractor mowers Here is main specifications: CCW More TG series wheel motors we have, key shaft, spline shaft and taper shaft More PARKER Low speed high torque compatible motors availalbe like : TB From China, Hanjiu produce variety of low speed high toqrue hydraulic motors to suit range of brands & applications, in more competitive way. We introduce us as advantage supplement of your current hydraulic supply, solve reliability, quality, time, cost, brand promotion. Contact us to talk work together.
Series:
TG
Shaft:
32mm key shaft
Rotation:
Displacement (cm3/rev):
0475
Mounting:
Wheel, Standard
Geometric Displacement:
475cm3/rev (29.1 in3/rev)
Maximum Speed:
237 rev/min
Maximum Oil Flow (continuous / intermittent):
76 lpm (20 gpm) / 114 lpm (30 gpm)
Max. Differential Pressure (continuous / intermittent):
138 bar (2000 PSID) / 207 bar (3000 PSID)
Maximum Supply Pressure:
300 bar (4350 PSIG)
Maximum Torque - Continuous / Intermittent:
887 Nm (7853 lb-in) / 1372Nm (12145 lb-in)
Maximum Performance:
28 KW (38HP)
Minimum Starting Torque - Continuous / Intermittent:
740 Nm (6549 lb-in) / 1120 Nm (9909 lb-in)
TC
TJ
TE
TF
TG
TK
