| Model No.: | 1P120 | Warranty: | 12 Months |
|---|---|---|---|
| Spool: | 1 - 4 | Flow: | 120 Liter |
| Highlight: | 120Liter Hydraulic Directional Control Valve,120Liter monoblock directional control valve,Hydraulic Directional Control Valve 300Bar |
||

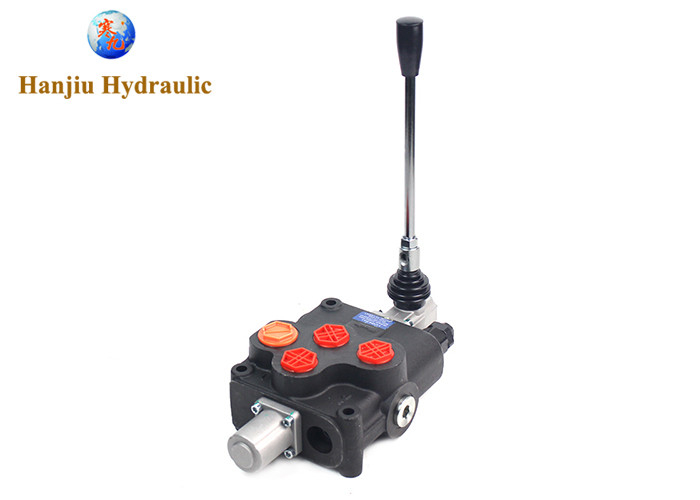

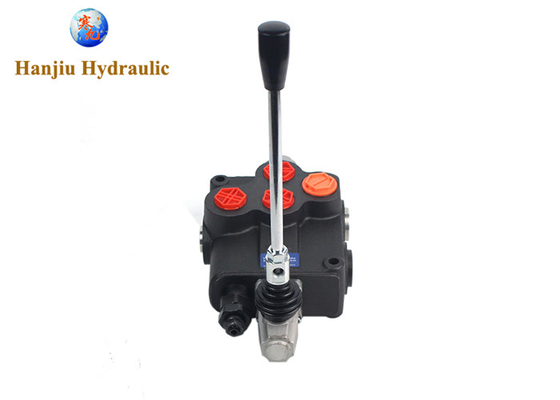

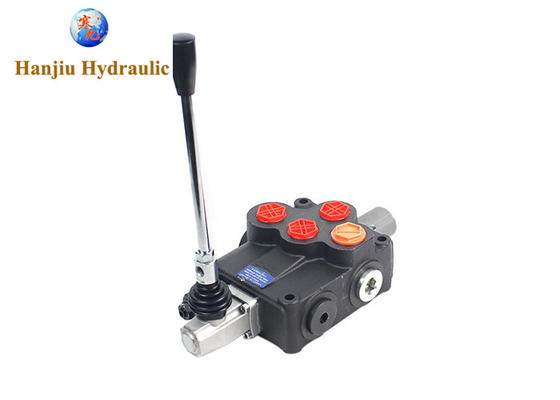

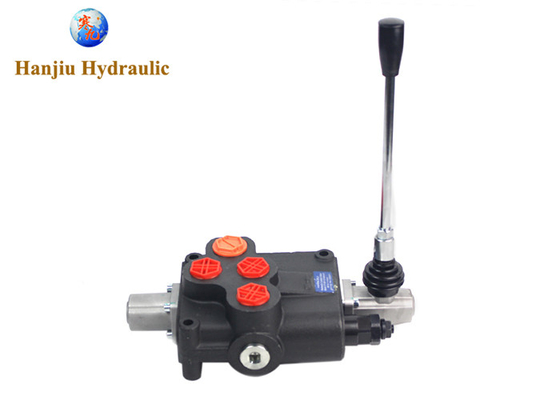

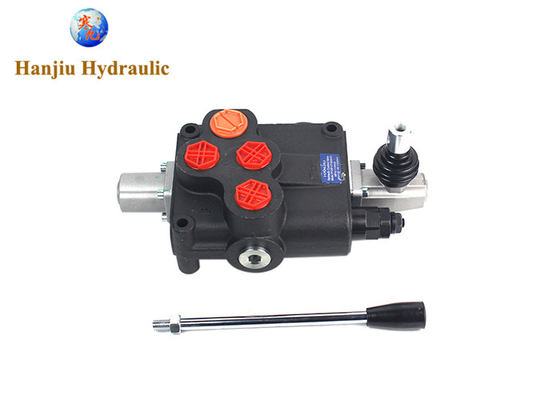

P120 Directional Control Valve, 120 liter monoblock control valve, one spool , G 1" , open center spool
Quick review:
The hydraulic distributor Р120 is used for switching on/off and controlling of the working fluid between head flow generators (hydraulic pumps), head flow consumers (hydraulic cylinders, motors, etc.), and the tanks of hydraulic systems of mobile machines (electrical and diesel forklifts, excavators, auto-cranes, etc.).
compatible with P120 A1 GKZ1 | P120-A1-GKZ1 | P120A1GKZ1
Nominal Flow Rate 120 l/min
Monimal Working Pressure 250 Bar
Max. Working Pressure 300 Bar
Tank Port Pressure 50 Bar Max
Ports P-A-B 1″ BSPP
Ports T-N 1″ BSPP
1 – 4 Spools available
| Monobloc Directional Control Valves | ||||||||
| Code | Sections | Max. Flow | Port Sizes | Max. Pressure | Tank | |||
| NO. | (L/min.) | P | A - B | T | N | (Bar.) | Pressure (Bar.) | |
| 1P120 1 A1 GKZ1 | 1 | 120 | G1” – G1” –G 1" –G 1" G1” – G3/4” –G 3/4" –G 1" |
250 | 50 | |||
| 2P120 1 A1 A1 GKZ1 | 2 | 120 | 250 | 50 | ||||
| 3P120 1 A1 A1 A1 GKZ1 | 3 | 120 | 250 | 50 | ||||
| 4P120 1 A1 A1 A1 A1 GKZ1 | 4 | 120 | 250 | 50 | ||||
Directional control valves are one of the core elements in a hydraulic system. They help directing the fluid to different components such as hydraulic cylinders or motors. Directional control valves perform three functions: Stop fluid flow, Allow fluid flow, Change direction of fluid flow.
There is a part called «spool» inside control valve which can be operated mechanically or electrically. The movement of the spool lets oil flow or blocks the oil flow in other words it controls the movement of fluid. Hydropack provide monoblock directional control valves with different capacities and spool control options.
About Hanjiu:
Hanjiu valves are compatible with Italian & Bulgaria makes, they are available as follows:
*** monoblock, sectional
*** for high pressure hydraulic system, such as drilling machine, sanitation, etc.
*** manual, joystick, cable, pneumatic, solenoid, electro-pneumatic, electro-hydraulic
*** 40 liters - 200 liters, 1 spool to 12 spool
Monoblock valve has a normal pressure of 250 bar, more used in agriculture and light industry
Sectional valve belongs to the high-pressure valve 350 bar, more used in the field of heavy machinery
