Product Details:
Payment & Shipping Terms:
|
| Model No.: | 2P40 | Warranty: | One Year |
|---|---|---|---|
| Spool: | 1, 2, 3, 4, 5, 6,7 ... | Flow: | 40lt, 45lt, 60lt, 80lt, 100lt, 120lt, 140lt, ... |
| Spool Function: | Spring Function,float Control | Port Size: | BSP Ports |
| Highlight: | tractor loader joystick hydraulic control valve,11 gpm hydraulic control valve,2 spool tractor loader joystick valve |
||

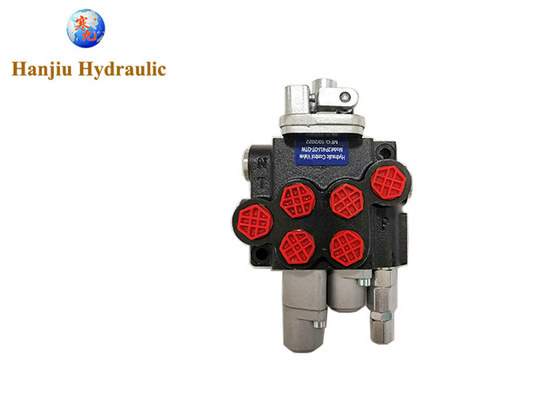

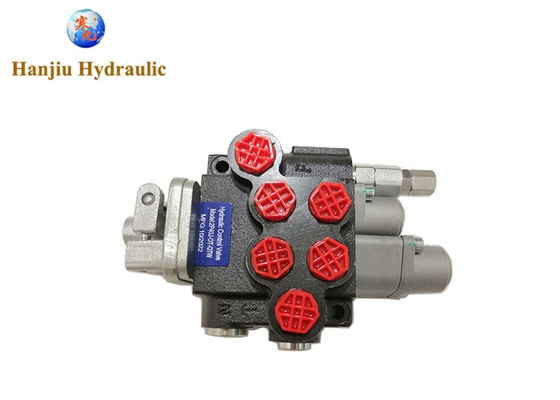

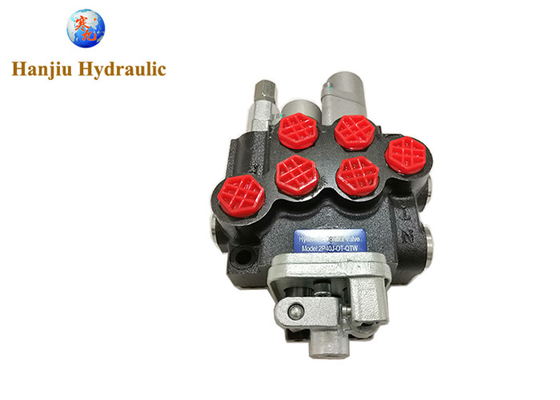

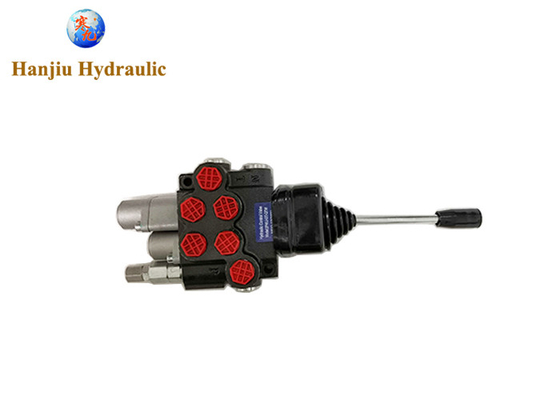

2 Spool w/ Single Float 11 GPM hydraulic control valve,tractor loader joystick valve
Hanjiu hydraulic supply the hydraulic control valves for tractor loader,
with joystick control,one spool is manual valve,one spool is floating control,
four positon,double acting.
it is easy to operate,long life, very suitable for your machinery.
Product details
| Ambient temperature | -40C...+60C |
| Viscosity | 12 ...800 mm2/s |
| Fluid temperature | -15C...+80C |
| Filtration | 10 to NAS 1638 |
| Max operating pressure | 200 bar |
| Back pressure | 50 bar |
| Nominal flow | 40 l/min |
| Spool stroke | 9 mm |
| Actuating force | < 200 N |
| Structure | 2sections |
