| Features: | Compatible With Danfoss | Item: | Orbital |
|---|---|---|---|
| OEM #: | 151-2300 | Manufacturer: | Hanjiu |
| Displacement: | 50 Ml/r | Application: | Earthmover |
| Highlight: | 151-2300 white hydraulic motor,earthmover white hydraulic motor |
||

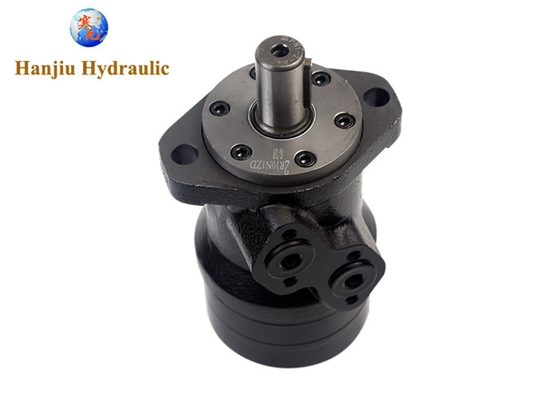

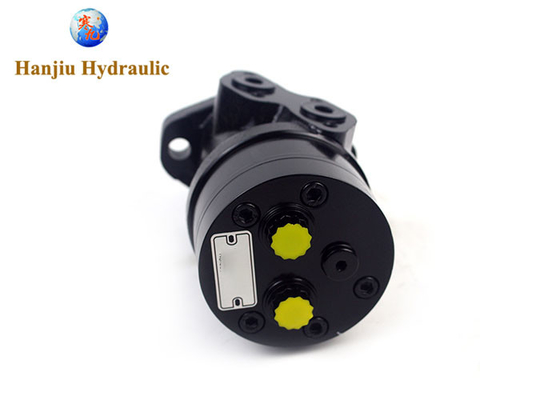

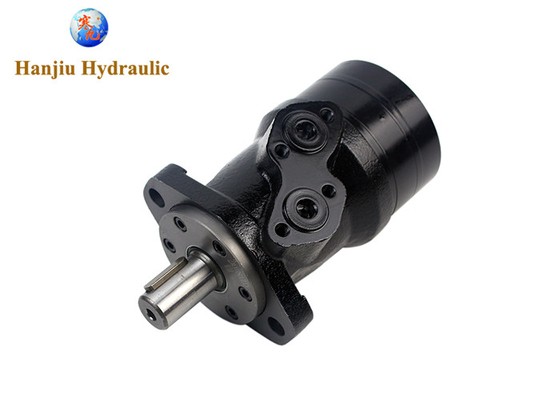

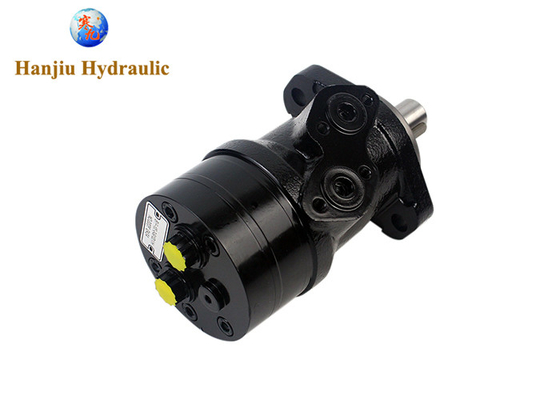

White 151-2300 DH 50 Hydraulic Motor replacement, C-flange, cyl. 1 in shaft, port size 7/8 - 14 UNF
Quick view:
This is a Hydraulic Orbital Motor with rear port version, it compatible with White 151-2300 DH 50 Hydraulic motor, and popular apply to Earthmover, like Schwing. We provide Motors suit for hydraulic distributors, dealers, OEMs and Users. Also we serve Heavy industry with OEM level excellent hydraulic motors to make their business more competitive, stable and make their equipment work excellent
Specifications:
| Manufacturer: | Hanjiu |
| Country of origin: | China |
| Material number: | 151-2300 |
| Motor series: | O-Series |
| Basic Motor: | DH |
| Displacement: | 50 ml/r |
| Mounting Flange: | C |
| Mounting Thread Dimension: | 3/8 - 16 UNC |
| Shaft Style: | Cylindrical |
| Shaft Size: | 1 inch ; 1/4-20 UNC tap |
| Shaft Key: | Woodruff key 1/4 x 1 (SAE J502) |
| Port Size: | End port |
| Port Dimension: | 7/8 - 14 UNF |
Technical parameter comparison table:
Here is White DH motor technical information and Hanjiu BMR motor technical information, Hanjiu motors have better speed, torque and power
| White DH 50 | Hanjiu BMRS-50 | ||
| Motor size | 50 | 50 | |
| Geometric displacement cm3 | 48.6 | 51.7 | |
| Max. speed rpm | cont | 930 | 960 |
| int | 1090 | 1150 | |
| Max. torque Nm | cont | 79 | 100 |
| int | 106 | 126 | |
| Max. output kW | cont | 6.8 | 9.5 |
| int | 8.2 | 11.2 | |
| Max. oil flow l/min | cont | 45 | 50 |
| int | 55 | 60 | |
More Danfoss Aftermarket and, or alternative option may be available for these item, to verify please inquire
| 151-2000 | 151-2080 | 151-2160 | 151-3410 | 151-2170 | 151-2040 | 151-2120 | 151-2200 | 151-3450 | 151-2210 |
| 151-2001 | 151-2081 | 151-2161 | 151-3411 | 151-2171 | 151-2041 | 151-2121 | 151-2201 | 151-3451 | 151-2211 |
| 151-2002 | 151-2082 | 151-2162 | 151-3412 | 151-2172 | 151-2042 | 151-2122 | 151-2202 | 151-3452 | 151-2212 |
| 151-2003 | 151-2083 | 151-2163 | 151-3413 | 151-2173 | 151-2043 | 151-2123 | 151-2203 | 151-3453 | 151-2213 |
| 151-2004 | 151-2084 | 151-2164 | 151-3414 | 151-2174 | 151-2044 | 151-2124 | 151-2204 | 151-3454 | 151-2214 |
| 151-2005 | 151-2085 | 151-2165 | 151-3415 | 151-2175 | 151-2045 | 151-2125 | 151-2205 | 151-3455 | 151-2215 |
| 151-2006 | 151-2086 | 151-2166 | 151-3416 | 151-2176 | 151-2046 | 151-2126 | 151-2206 | 151-3456 | 151-2216 |
| 151-2007 | 151-2087 | 151-2167 | 151-3417 | 151-2177 | 151-2047 | 151-2127 | 151-2207 | 151-3457 | 151-2217 |
| 151-2008 | 151-2088 | 151-2168 | 151-3418 | 151-2178 | 151-2048 | 151-2128 | 151-2208 | 151-3458 | 151-2218 |
| 151-2009 | 151-2089 | 151-2169 | 151-3419 | 151-2179 | 151-2049 | 151-2129 | 151-2209 | 151-3459 | 151-2219 |
| 151-3400 | 151-3480 | 151-2010 | 151-2090 | 151-3570 | 151-3440 | 151-3520 | 151-2050 | 151-2130 | |
| 151-3401 | 151-3481 | 151-2011 | 151-2091 | 151-3571 | 151-3441 | 151-3521 | 151-2051 | 151-2131 | |
| 151-3402 | 151-3482 | 151-2012 | 151-2092 | 151-3572 | 151-3442 | 151-3522 | 151-2052 | 151-2132 | |
| 151-3403 | 151-3483 | 151-2013 | 151-2093 | 151-3573 | 151-3443 | 151-3523 | 151-2053 | 151-2133 | |
| 151-3404 | 151-3484 | 151-2014 | 151-2094 | 151-3574 | 151-3444 | 151-3524 | 151-2054 | 151-2134 | |
| 151-3405 | 151-3485 | 151-2015 | 151-2095 | 151-3575 | 151-3445 | 151-3525 | 151-2055 | 151-2135 | |
| 151-3406 | 151-3486 | 151-2016 | 151-2096 | 151-3576 | 151-3446 | 151-3526 | 151-2056 | 151-2136 | |
| 151-3407 | 151-3487 | 151-2017 | 151-2097 | 151-3577 | 151-3447 | 151-3527 | 151-2057 | 151-2137 | |
| 151-3408 | 151-3488 | 151-2018 | 151-2098 | 151-3578 | 151-3448 | 151-3528 | 151-2058 | 151-2138 | |
| 151-3409 | 151-3489 | 151-2019 | 151-2099 | 151-3579 | 151-3449 | 151-3529 | 151-2059 | 151-2139 |
About Hanjiu:
Located in China, we specialized in Orbial motors, compatible with Danfoss, Eaton Char-lynn, Parker, M+S, White, Dana, form, fit and function same. more competative , shorter delivery than the above mentioned makes
