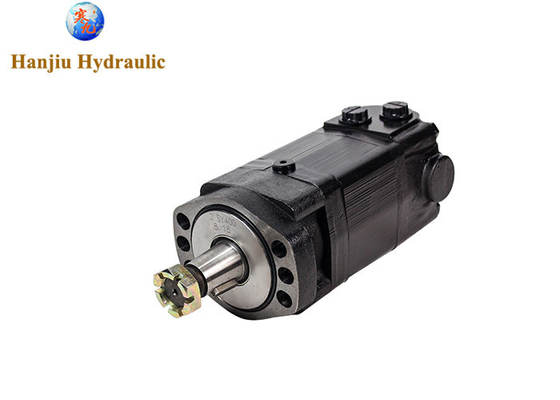

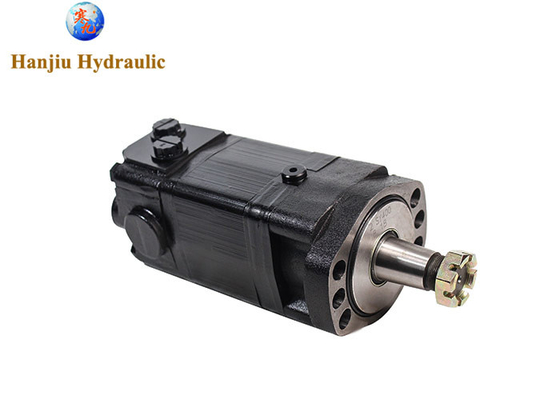

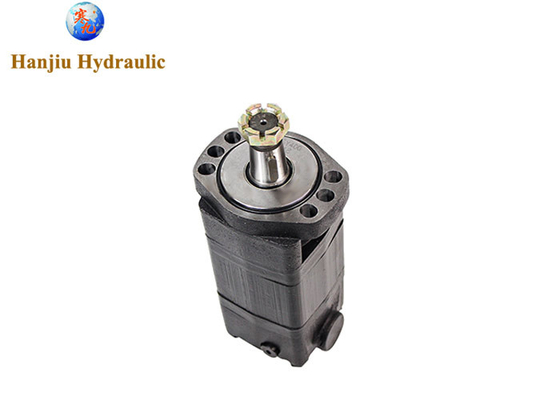

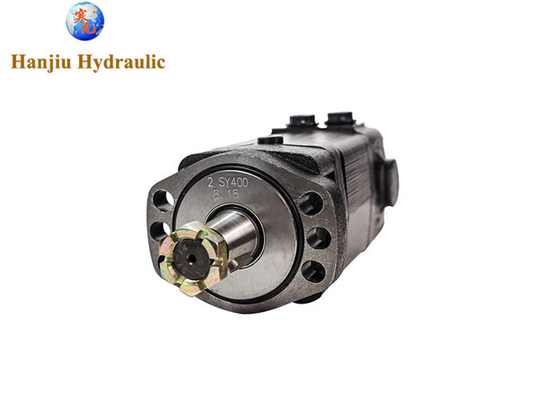

Oms 400 Danfoss Orbit Hydraulic Motor Tapered Shaft Magneto Flange 7/8-14unf Ports

OMS-400 MOTOR DANFOSS ORBIT MOTOR TAPERED SHAFT MAGNETO FLANGE BSP PORTS

OMS400 is a hydraulic motor manufactured by Hanjiu Technology

 Details as below:

• Port Size:7/8-14 UNF
• displacement:400cc
• Shaft:31.75 tapered shaft
• Port Location Side Ported
• Flow Rating :75l/min
• Max Speed:cont.185rpm,int.225 rpm
• Shaft seal:High pressure seal Kit
• function:low leakage
• Country of Manufacture China


Main Specifications:



* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.



The Oms-400motor is produced according to the technical parameters and standards provided by Hanjiu Hydraulics. By changing the direction of the input and output flow rates, the motor is quickly reversed and an equivalent torque is generated in both directions. Therefore, we also take technical improvements to improve the performance of our products according to the needs of the market. The main features are:

1. The use of end face distribution and axial surface distribution, simple and compact structure, high distribution accuracy.

2. The rotational inertia is small, it is easy to start under the load, the forward and reverse can be used, and there is no need to stop when changing.

3. After the air is removed, fill the fuel tank, and then start to gradually increase the load on the motor until the maximum load, and observe whether there are abnormal phenomena, such as noise, oil rise and oil leakage.

Oms-400 orbit motor is widely used in agricultural machinery, fishing machinery, plastics industry, mining, construction machinery and other industries.

The Oms-400 motor has the advantages of high efficiency, long life, wide speed range, high starting torque, smooth and compact high-speed rotation, and can be directly connected with the working machine to adapt to various low-speed heavy-duty facilities.
