Product Details:
Payment & Shipping Terms:
|
| Item: | Directional Control Valve | Model: | RD5100 |
|---|---|---|---|
| Bank: | 1 Bank | Flow Rate: | 30FGPM |
| Function: | Positon | First Spool: | Float |
| Highlight: | 3/2 way dc valve,spool hydraulic dc valve,3/2 way hydraulic directional control valve |
||

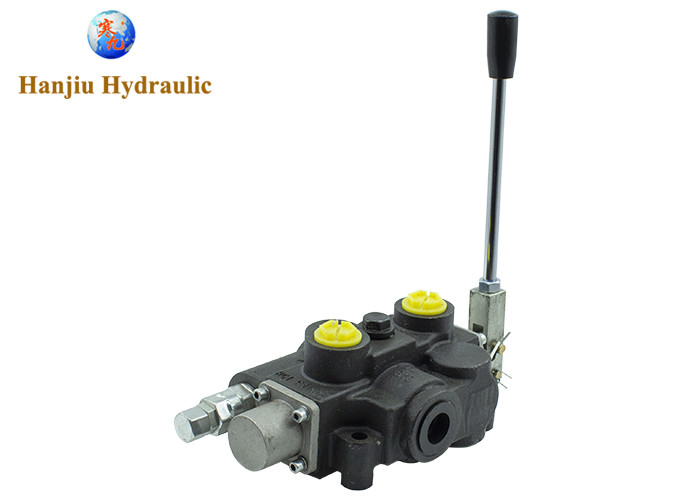

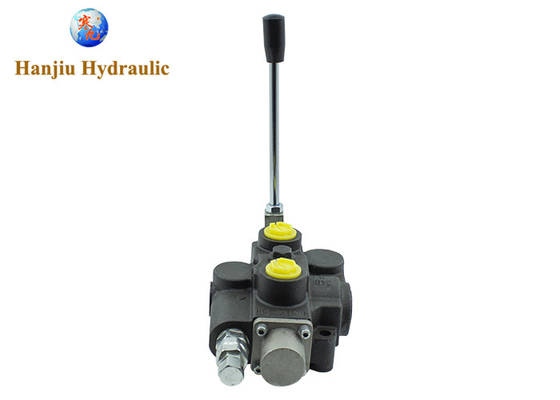

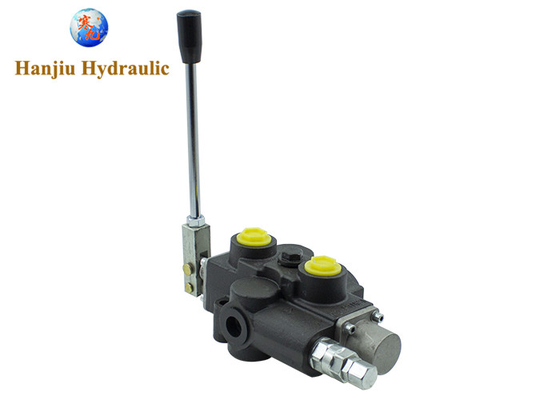

Spool hydraulic directional control valve - RD5100 - Prince replacement
Quick View:
RD5100 is a compatible option for Prince RD5100 directional control valve, Economical monoblock construction of high tensile strength gray cast iron; Load check on each spool; 30 GPM max flow; Hard Chrome Plated Spools; Optional 4 Position Float on 1st spool; Differential poppet style relief, adjustable from 1500 to 3000 psi (also available in low pressure version adjustable from 500 to 1500 psi); Power beyond and closed center capability; Reversible Handle; Made in CHINA.
Specification:
| Model number | RD5100 |
| Port | 3/4" NPT |
| Spool Type | 4-Way/3-Position Detent |
| Spool Action | 3-Position Detent |
| Work Port | 3/4" NPT |
Pressure Rating:
| Maximum Operating Pressure | 3000 psi |
| Maximum Tank Pressure | 500 psi |
| Nominal Flow Rating | 30 GPM |
| Maximum Operating Temp | 180°F |
More Model number available:
| RD5100 | RD512GG5A4B1 |
| RD512CA5A4B1 | |
| RD513GG5A4B1 | |
| RD513CA5A4B1 | |
| RD513CB5A4B1 | |
| RD5200 | RD522GCGA5A4B1 |
| RD522CCAA5A4B1 | |
| RD5300 | RD532GCCGAA5A4B1 |
| RD532CCCAAA5A4B1 |
More series available:
About the supplier:
Hanjiu is a hydraulic manufacturer and exporter from China. Hanjiu produce variety of hydraulic parts to suit range of brands & applications. We ship to all parts of the world.We introduce us as advantage supplement of your current hydraulic supply, solve reliability, quality, time, cost, brand promotion.
Hydraulic directional control valve is one of our specialties, we are good at Prince, Bucher, Walvoil, Parker, Youli valves and more. Below is a selection of our high-end compatible hydraulic directional control valves for Brand valve dealers and users for your reference. We also offer more hydraulic directional control valves
Welcome to contact us, send your demand list and quantity, understand our quotation, discuss cooperation.
