Bmr Bmrs Bmrwn Danfoss Hydraulic Motor With Needle Bearing Compatible 151-6301

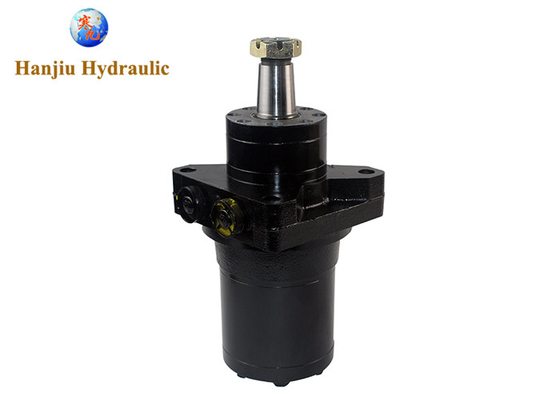

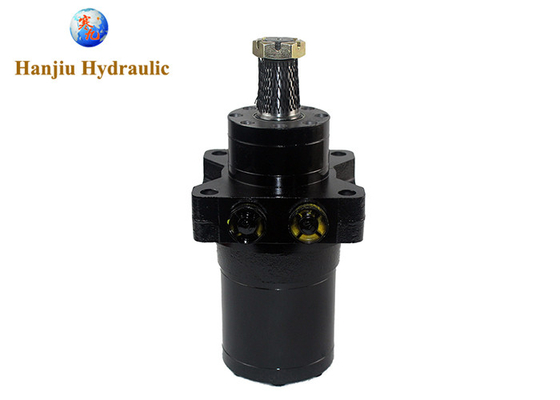

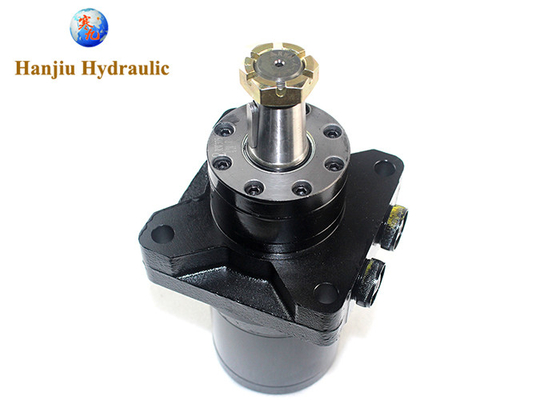

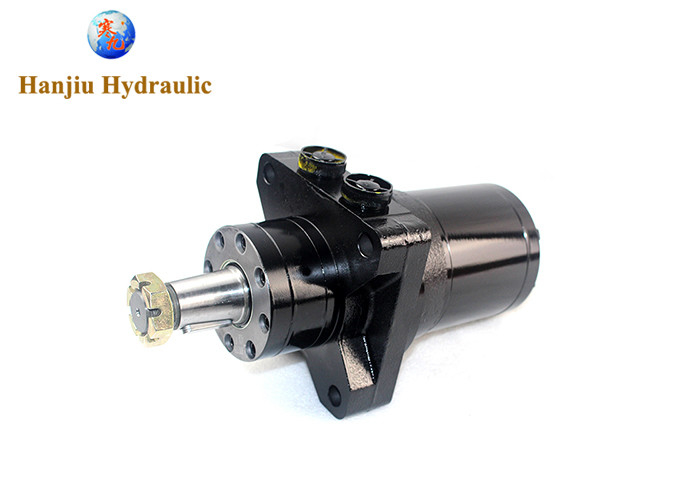

Large Image : Bmr Bmrs Bmrwn Danfoss Hydraulic Motor With Needle Bearing Compatible 151-6301

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE
Model Number:	BMR BMRS BMRWN

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Contact the seller to get a quote
Packaging Details:	Box, Pallet
Delivery Time:	55 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	10000 pieces per year

Contact Now

Detailed Product Description

Item:

Orbital

OEM #:

BMR BMRS BMRWN

Manufacturer:

Hanjiu

Displacement:

50 - 500 Ml/r

Highlight:

bmr danfoss hydraulic motor

151-6301 danfoss hydraulic motor

151-6301 orbit hydraulic motor

BMR BMRS BMRWN hydraulic motor with needle Bearing compatible with Danfoss 151-6301

Hydraulic Motor
DESCRIPTION

The BMR/BMRS series advanced GEROLER gear set, shaft distribution flow, hydraulic motors are a compact, low noise, high efficient high torque low speed design. The GEROLER gear set also affords a reliable smooth start up at low pressure.

The special design of the valve linkage and high pressure capability of the shaft seal provides a long operating life and these motors can be used in either series or parallel operation. The low weight advanced construction design is manufactured in accordance with the requirements of ISO 9000-2000 quality system.

FEATURES
Mounting Flange: SAE A 2-bolt; 4-bolt (Magneto); 4-bolt square flange; wheel mount.
Displacement Range (cm3/rev.): 36 to 500 [2.2 to 29.7 CIR]
Max. Speed* (RPM): 120-1500 Cont.
Max. Differential Pressure* (PSID): 2030 PSI
Shafts Options: Parallel shaft (keyed), splined shaft and tapered shaft (see details)
* Displacement dependent.

Main Specifications:

Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1085	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1220	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	360	360	390	390	365
	int.	83	126	220	280	340	430	440	490	535	495
	peak	105	165	270	320	370	460	560	640	650	680
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	10	7	6	5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	9.5	9	8
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	16.5	13	11	9	7
	int.	16.5	17.5	20	20	20	20	17.5	15	13	10
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	20	17.5	15
Max. flow (L/min)	cont.	40	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	45	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

Technical data for BMR with 31.75 and 32 shaft:

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1250	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1520	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	380	450	540	550	580
	int.	83	126	220	280	340	430	500	610	690	690
	peak	105	165	270	320	370	460	560	710	840	830
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	11	10	9	7.5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	12	10	9
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	17.5	17.5	17.5	13.5	11.5
	int.	16.5	17.5	20	20	20	20	20	20	17.5	15
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	21	17.5
Max. flow (L/min)	cont.	45	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	55	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.

We carries comprehensive selection of Danfoss, Eaton, Parker, White compatible units.

We introduce us as advantage supplement of your current hydraulic supply, solve reliability, quality, time, cost.

Contact us to talk your request.
