| Model No.: | P40 | Warranty: | One Year |
|---|---|---|---|
| Spool: | 1, 2, 3, 4, 5, 6,7 ... | Flow: | 40lt, 50lt, 60lt, 80lt, 100lt, 120lt, 140lt, ... |
| Spool Function: | Spring Function,detent Control | Port Size: | BSP Ports |
| Highlight: | advanced hydraulic directional valves,agricultural machinery hydraulic directional valves,agricultural machinery directional control valve |
||

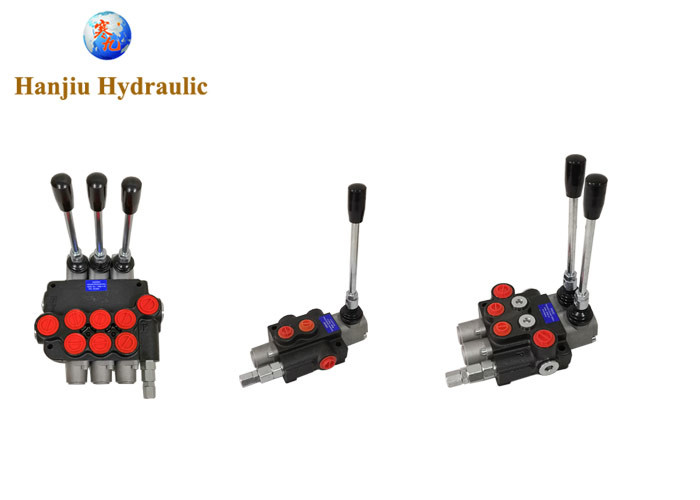

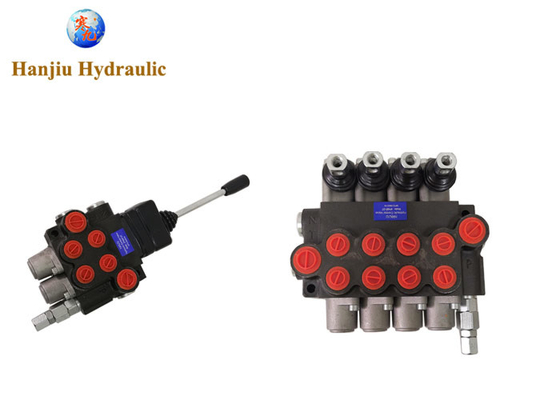

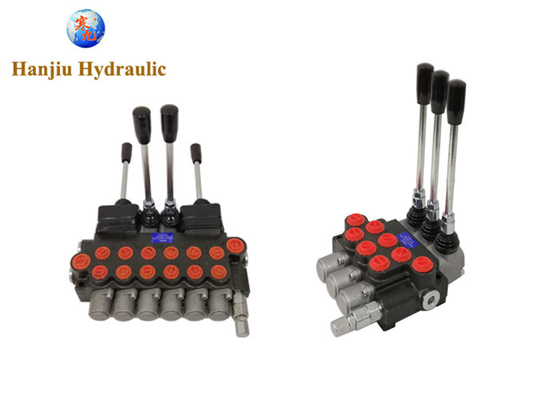

advanced hydraulic solutions hydraulic directional valves for agricultural machinery new facility
Hanjiu hydraulic supply the hydraulic control valves widely used on agricultural machines
the advanced hydraulic products can bring the new performance of the machines,
it is easy to operate,long life, very suitable for your machinery.
Product details
| Ambient temperature | -40C...+60C |
| Viscosity | 12 ...800 mm2/s |
| Fluid temperature | -15C...+80C |
| Filtration | 10 to NAS 1638 |
| Max operating pressure | 250 bar |
| Back pressure | 50 bar |
| Nominal flow | 40 l/min |
| Spool stroke | 9 mm |
| Actuating force | < 200 N |
| Structure | 1 spool,2spools,3spools,4spools...7spools |
Control type:
