| Model No.: | 4P40 | Warranty: | One Year |
|---|---|---|---|
| Spool: | 1, 2, 3, 4, 5, 6,7 ... | Flow: | 40lt, 50lt, 60lt, 80lt, 100lt, 120lt, 140lt, ... |
| Spool Function: | Spring Function | Port Size: | BSP Ports |
| Highlight: | hydraulic monoblock valve 6 spool,forestry machinery hydraulic monoblock valve,ce 6 spool hydraulic control valve |
||

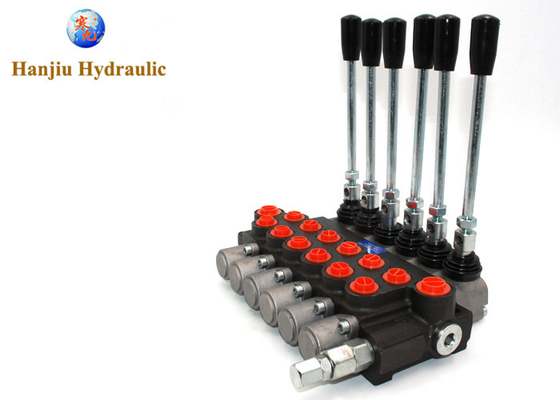

hydraulic solutions hydraulic monoblock valve new type
Hydraulic Monoblock Valves are a style of Hydraulic Control valve. These valves start and stop fluid flow into hydraulic cylinders or hydraulic motors. The number of cylinders or motors that a control valve can operate depends on the number of spools on a valve. The flow rate listed shows the maximum allowed GPM (Gallons Per Minute) that can be put through a valve
Product details
| Ambient temperature | -40C...+60C |
| Viscosity | 12 ...800 mm2/s |
| Fluid temperature | -15C...+80C |
| Filtration | 10 to NAS 1638 |
| Max operating pressure | 200 bar |
| Back pressure | 50 bar |
| Nominal flow | 40 l/min |
| Spool stroke | 9 mm |
| Actuating force | < 200 N |
| Structure | 4sections |
Control type:
