Product Details:
Payment & Shipping Terms:
|
| Model No.: | SD5 | Warranty: | 12-18 Months |
|---|---|---|---|
| Spool: | 1, 2, 3, 4, 5, 6, ... | Flow: | 45lt |
| Spool Function: | O/Y/A | Function: | Spring Return |
| Highlight: | 45lt monoblock directional control valve,six spool monoblock directional control valve,6spool monoblock hydraulic directional control valve |
||

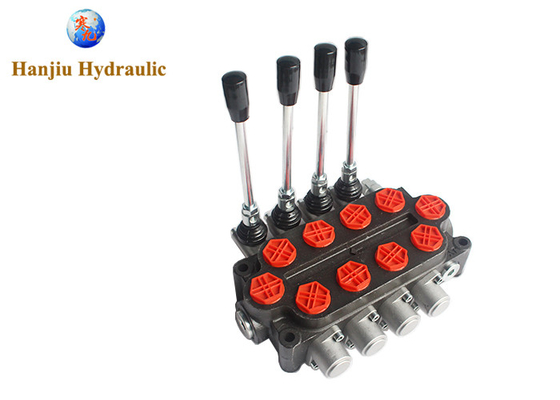

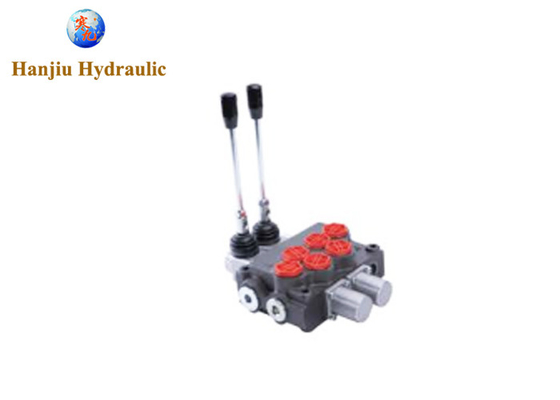

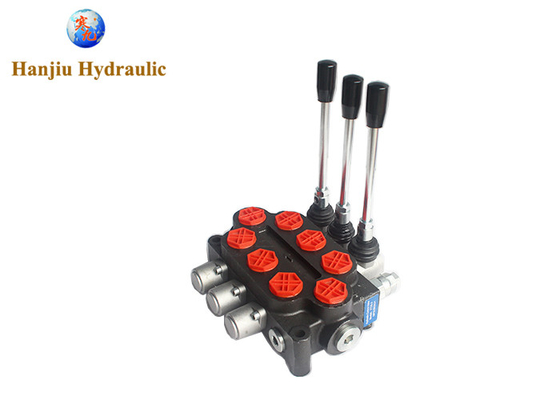

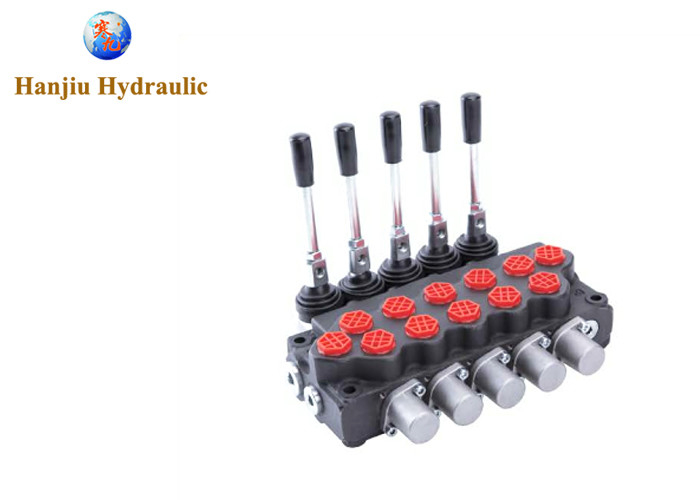

Simple, compact and heavy duty designed monoblock valves from 1 to 6 sections for open and closed center hydraulic systems.
Fitted with a main pressure relief valve and a load check valve. .Available with parallel or series circuit.
Optional power beyond port (only for parallel circuit). . Diameter 20 mm – 0.79 in interchangeable spools.
A wide variety of service ports and circuit valves. .Available manual, pneumatic, hydraulic,
electro-hydraulic and remote with flexible cables spool ...
| Ambient temperature | -40C...+60C |
| Viscosity | 12 ...800 mm2/s |
| Fluid temperature | -15C...+80C |
| Filtration | 10 to NAS 1638 |
| Max operating pressure | 250bar |
| Back pressure | 50 bar |
| Nominal flow | 45 l/min |
| Leakage(A,B-T) | 15cm3/min at 120bar |
| Spool stroke | 6 mm |
| Actuating force | < 200 N |
| Modification/ Spools | with 1 to 7 |
