| Model No.: | 4P40 | Warranty: | One Year |
|---|---|---|---|
| Spool: | 1, 2, 3, 4, 5, 6,7 ... | Flow: | 40lt, 50lt, 60lt, 80lt, 100lt, 120lt, 140lt, ... |
| Spool Function: | Spring Function | Port Size: | BSP Ports |
| Highlight: | forklift distributor elevator control valve,4p40 elevator control valve,forklift distributor directional control valve |
||

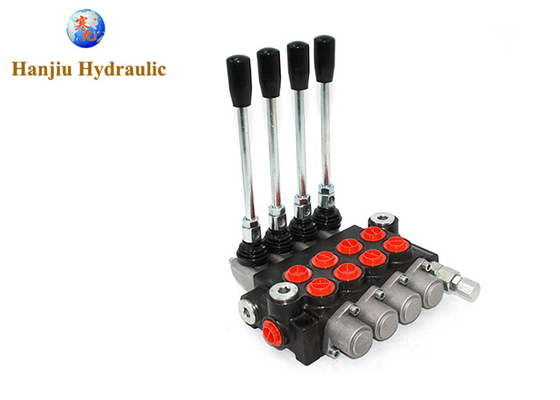

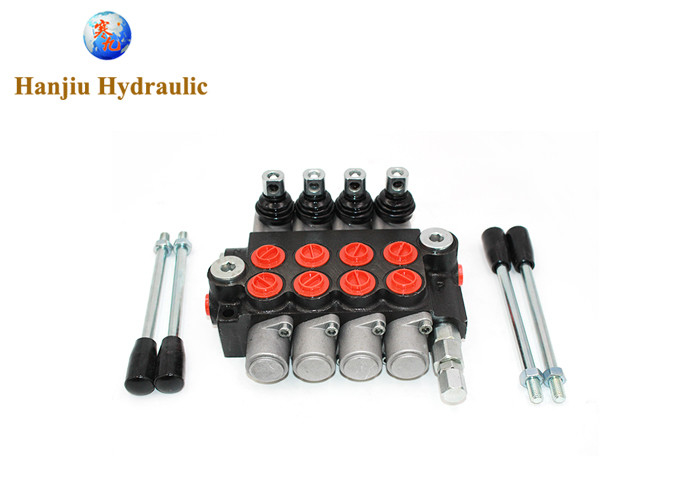

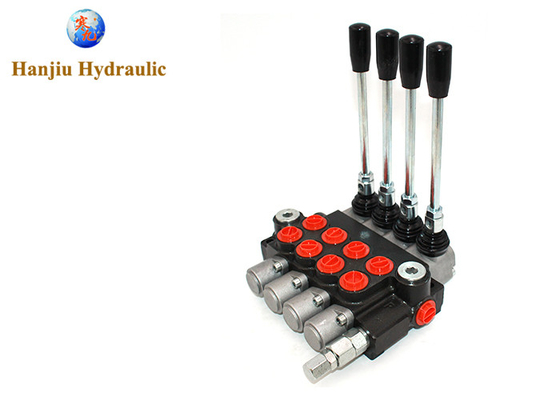

Hydraulic Forklift Distributor Valve 4P40 Hydraulic Elevator Control Valve
Hanjiu hydraulic supply the hydraulic control valves for hydraulic forklifts and hydraulic elevators
there are 40liters monoblock valves,4spools, can control hydraulic cylinders, with spring control function
and detent control function.
it is easy to operate,long life, very suitable for your machinery.
Product details
| Ambient temperature | -40C...+60C |
| Viscosity | 12 ...800 mm2/s |
| Fluid temperature | -15C...+80C |
| Filtration | 10 to NAS 1638 |
| Max operating pressure | 200 bar |
| Back pressure | 50 bar |
| Nominal flow | 40 l/min |
| Spool stroke | 9 mm |
| Actuating force | < 200 N |
| Structure | 4sections |
Control type:
