Product Details:
Payment & Shipping Terms:
|
| Item: | Hydraulic Valves | Model: | 5P80 |
|---|---|---|---|
| Apply To: | Construction Application | Spool: | 5 Spool |
| MAax Operation Pressure: | 250 Bar | Nominal Flow: | 80 Lpm |
| Highlight: | monoblock pneumatic directional control valve,5 spool pneumatic directional control valve,monoblock hydraulic directional control valve |
||

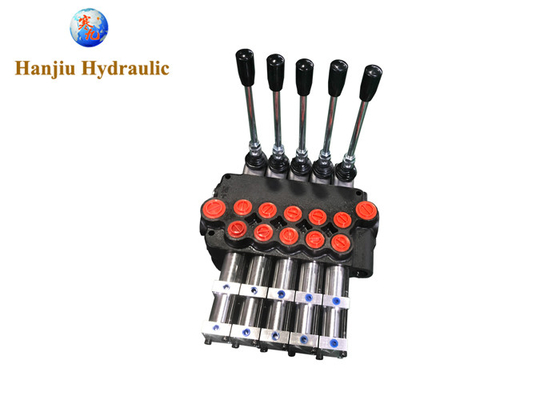

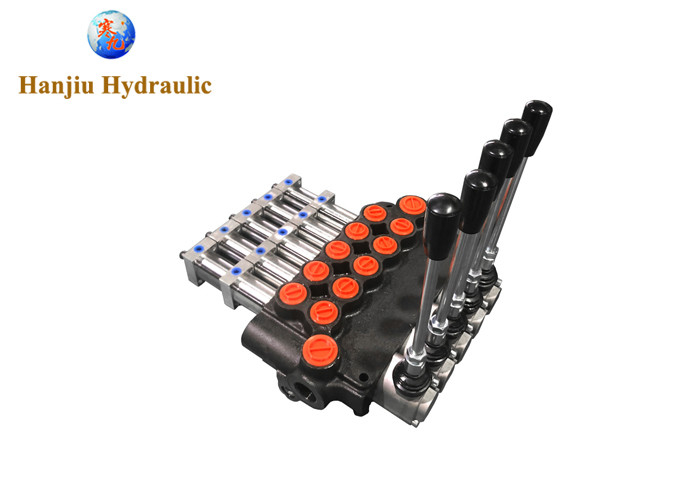

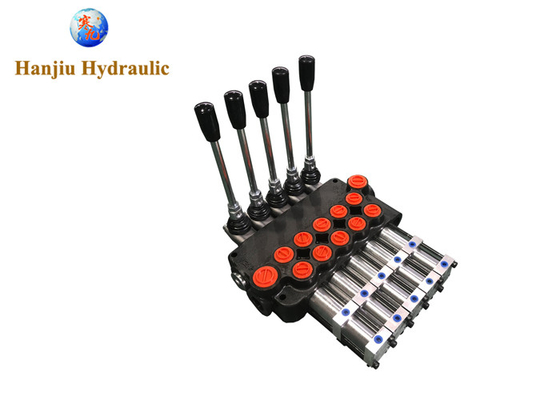

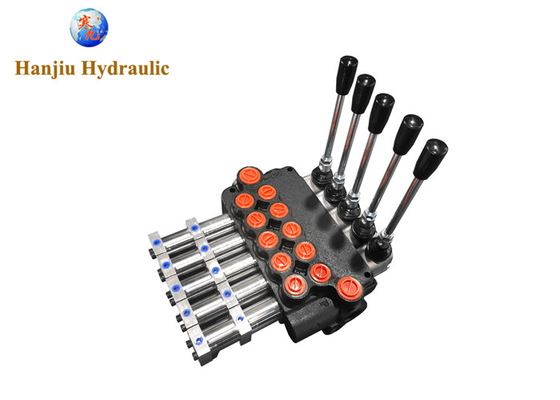

5P80 Series Monoblock Control Valves with Pneumatic Control 1/2'' working port
* For different spool & lever options please contact our sales team
P80 HYDRAULIC CONTROL VALVES AVAILABLE IN 1-6 SPOOL BANKS WITH ADJUSTABLE RELIEF VALVE AND MACHINED FOR CARRYOVER PLUG. ALL STANDARD CONTROL VALVES COME WITH DOUBLE ACTING (A) SPOOLS AND SPRING TO CENTER LEVER CONTROL.
SPECIFICATION
| CONTROL TYPE | PNEUMATIC CONTROL |
| PORT SIZES | P = 1/2" BSP - A/B = 1/2" BSP - T+N = 3/4" BSP |
| MATERIAL | CAST IRON BODY |
| MAX WORKING PRESSURE | P = 250 BAR, T = 50 BAR, A/B = 300 BAR |
| MAX FLOW RATE | 80 LPM |
| OPERATING TEMPERATURE BETWEEN | -40℃ TO +60℃ |
| RELIEF VALVE SETTING | 180 BAR STANDARD (MAX = 250 BAR |
TO VIEW TECHNICAL DATA SHEET PLEASE VIEW THE PDF BELOW
