| Model No.: | 3P40 | Warranty: | One Year |
|---|---|---|---|
| Spool: | 1, 2, 3, 4, 5, 6,7 ... | Flow: | 40lt, 50lt, 60lt, 80lt, 100lt, 120lt, 140lt, ... |
| Spool Function: | Spring Function | Port Size: | BSP,Metric,US Vision |
| Highlight: | pruning sweeper hydraulic monoblock valve,high pressure hydraulic monoblock valve,monoblock 6 spool hydraulic control valve |
||

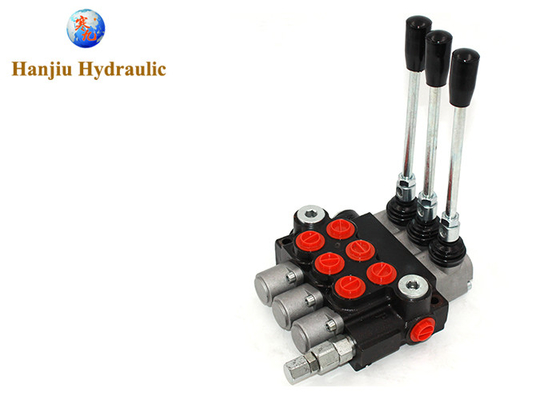

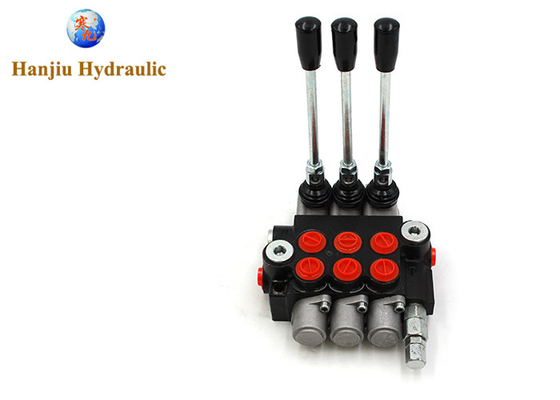

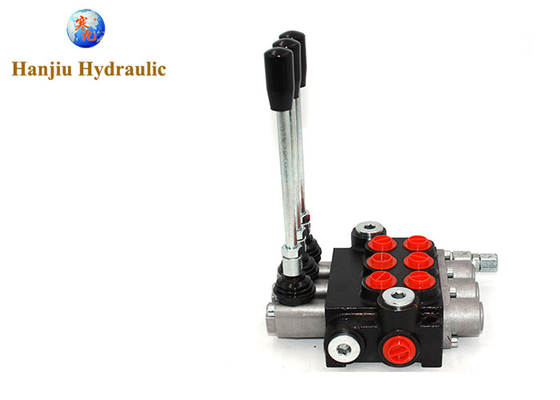

pruning Sweeper hydraulic monoblock valve 3P40 high pressure G1/2 port threads
Product details
| Ambient temperature | -40C...+60C |
| Viscosity | 12 ...800 mm2/s |
| Fluid temperature | -15C...+80C |
| Filtration | 10 to NAS 1638 |
| Max operating pressure | 200 bar |
| Back pressure | 50 bar |
| Nominal flow | 40 l/min |
| Spool stroke | 9 mm |
| Actuating force | < 200 N |
| Structure | 3sections |
Control type:
Ports threads
| BSP Thread | Metric thread | US standard UNF thread | US standard NTP thread | ||||
| code | Thread size | code | Thread size | code | Thread size | code | Thread size |
| G04 | G1/4 | M16 | M16X1.5 | U10 | 5/8-12UNF | N06 | NPT3/8 |
| G06 | G3/8 | M18 | M18X1.5 | U12 | 3/4-16UNF | N08 | NPT1/2 |
| G08 | G1/2 | M20 | M20X1.5 | U14 | 7/8-14UNF | N12 | NPT3/4 |
| G12 | G3/4 | M22 | M22X1.5 | U16 | 1-12UNF | ||
| M27 | M27X2 | ||||||
The high-quality integral manifold has the characteristics of compact structure, stable operation and strong versatility.
It allows you to control a double-acting actuator or (after blocking one of the ports) a single-acting actuator.
Can be connected in series to existing systems (requires pressure sleeve).
application:
This distributor is widely used for hydraulically driven machines and equipment.
Can be used in agriculture, horticulture, forestry and construction.
Universal manifolds are used in various types of machines such as:
tractors
pruning sweepers
grape machines
loader
plow
forklift etc.
Three-position lever (1 - 0 - 2)
On the spring it returns to vertical on its own
Neutral 0 position (rod vertical), actuator piston rod stationary - oil flows to overflow.
In working position 1 (lever set in forward tilted position), the piston rod of the actuator is extended.
Working position 2 (lever set diagonally back), actuator piston rod retracted.
