Product Details:
Payment & Shipping Terms:
|
| Type: | Orbit Hydraulic Motor | Brand: | Hanjiu |
|---|---|---|---|
| Hanjiu Modell: | 1041968006 | Feature: | MEDIUM-SPEED MOTOR |
| Shaft: | Splined | Apply To: | Atlas Copco |
| Highlight: | 742rpm char lynn eaton hydraulic motor,drifter char lynn eaton hydraulic motor,atlas copco eaton hydraulic motor |
||

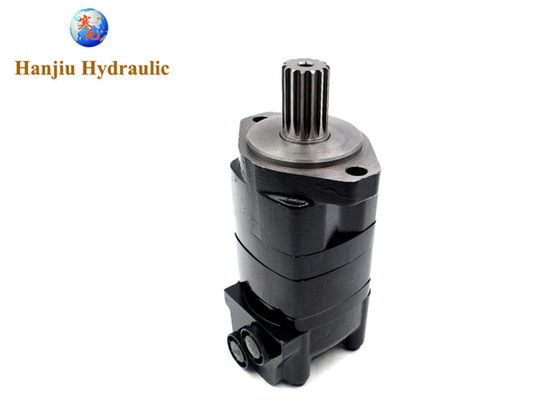

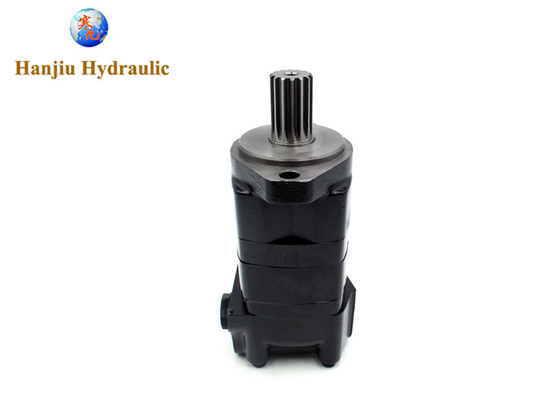

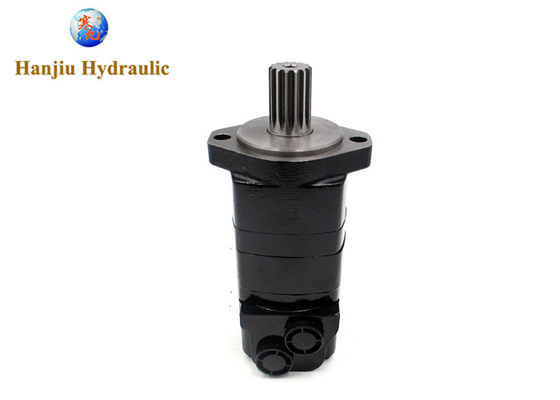

Char-Lynn Eaton 1041968006 Hydraulic Motor Atlas Copco rock drilling drifter spare parts Hydraulic Motor
This is a Char-lynn Eaton 1041968006 replacement Hydraulic Motor. It is wuitable for Atlas Copco rock drilling drifter. It's best choice for rock drill drifter spare parts dealers and users.
Description
| Hydraulic Geroler Disc Valve Motor | 2000 - Standard, 101.6 cm³/r Max Geometric Displacement |
| Displacement | 6.20 in³/r |
| Continuous Torque | 2611 in-lbs |
| Maximum RPM | 742 rpm |
| Mounting Type | 2-Bolt Flange - 3.25 in Pilot - SAE A |
| Motor Port Type | Straight Thread O-Ring SAE |
| Motor Port Size | 7/8–14 UNF-2B |
| Shaft Type | Splined |
| Maximum Flow Rate | 20 gpm |
| Maximum Operating Temperature | 180 °F |
| Port Orientation | Staggered Ports |
| Actual Mounting Flange | Standard, 2 Bolt; 82.6 [3.25] Pilot Dia. 13.59 [.535] Dia. Holes On 106.4 [4.19] Dia. Bolt Circle (SAE A) |
We have range of hydraulic motors to replace Char-lynn Eaton.
We have range of hydraulic motors to suit range of applications and brands.
