Product Details:
Payment & Shipping Terms:
|
| Type: | Hydromotor | Speed: | 160rpm1950rpm |
|---|---|---|---|
| Displacement: | 470cc | Torque: | 1085N.M-1180N.M |
| Output: | 14.5kw-16.5kw | Pressure: | 24mpa-27.6mpa |
| Highlight: | ms hydraulic orbit motor,dynamic hydraulic orbit motor,high torque hydraulic orbit motor |
||

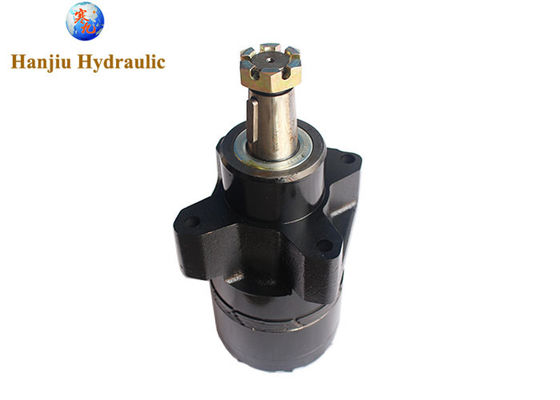

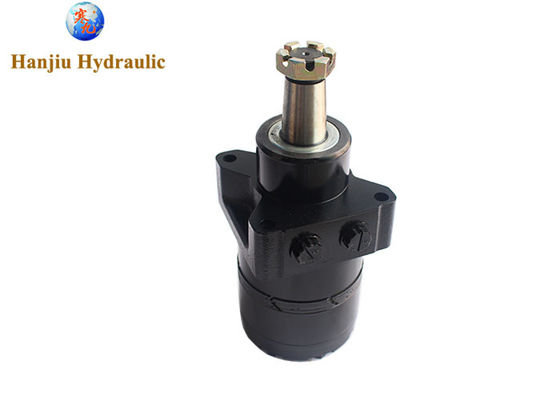

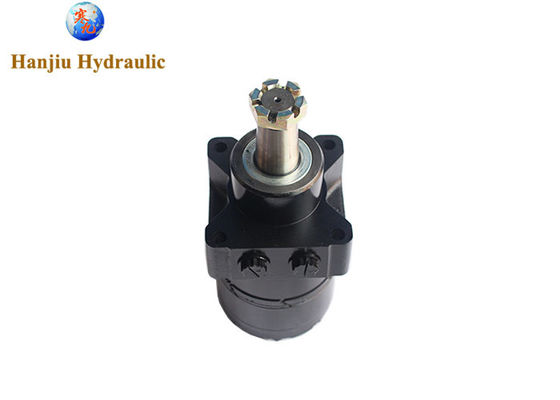

M+S HW470 orbit motor wheel mounting flange hydromotor dynamic low speed high torque hydraulic motor
This type of hydraulic motors are widely used on sweeper machines, sweeper brush,hydraulic scissors lift, platforms
matching brand:
PARKER TORQMOTOR
WHITE TORQMOTOR
ROSS TORQMOTOR
DANFOSS 500/530 MOTORS
| 1, | model number | BMER-3-475 |
| 2, | displacement | 475ml/r |
| 3, | flange | wheel Mount |
| 4, | shaft | cone shaft |
| 5, | oil port | G1/2 |
| 6, | drain | --- |
| 7, | rotation | Standard |
| 8, | paint | Black |
| 9, | replace | Parker TG ,white 500/530 |
Main Specifications:
| Type |
BMER 125 |
BMER 160 |
BMER 200 |
BMER 230 |
BMER 250 |
BMER 300 |
BMER 350 |
BMER 375 |
BMER 475 |
BMER 540 |
BMER 750 |
|
|
Geometric displacement (cm3 /rev.) |
118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
| Max. torque (N*m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
| Max. output (kW) | cont. | 12.0 | 15 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 | |
HANJIU TECHNOLOGY not only has superb technology and innovative ideas in manufacturing products, but also put a lot of thoughts and efforts in customer communication and after-sales service. After the customer purchases the relevant mechanical devices, HANJIU TECHNOLOGY will pay regular return visits with the customer, give the customer some suggestions for use and help the customer solve the problems that may arise in the use of the product. If a customer encounters a problem with the product during the use of the product, HANJIU TECHNOLOGY will also have professional technical personnel to communicate with the customer and conduct regular inspections and maintenance.
No matter when and where, HANJIU TECHNOLOGY can always provide you with higher quality hydraulic rail motors, how can you miss it?
