Product Details:
Payment & Shipping Terms:
|
| Type: | Hydraulic Orbital Wheel Motor | Speed: | 250rpm-315rpm |
|---|---|---|---|
| Displacement: | 125cc | Warranty: | 12-18 Months |
| Application: | Construction Machines, Heavey Machines, Rollers Etc. | Torque: | 810N.M-930N.M |
| Output: | 18.0kw-21.0kw | Pressure: | 20.5mpa-24mpa |
| Highlight: | sauer danfoss hydraulic conveyor motor,re505120a3120aaaa sauer danfoss hydraulic motor,re505120a3120aaaa hydraulic conveyor motor |
||

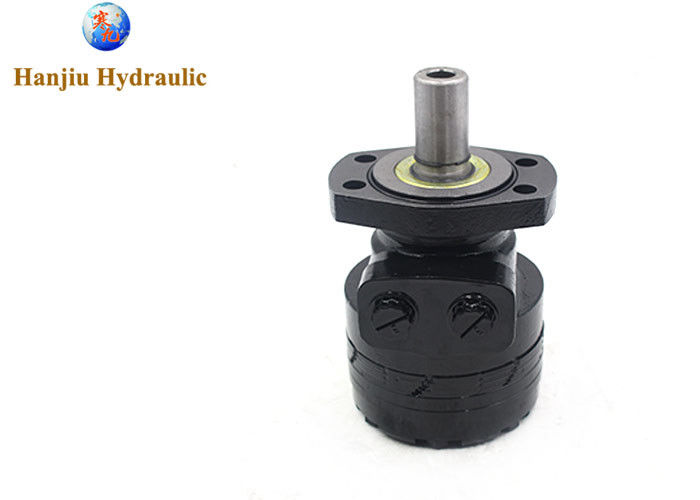

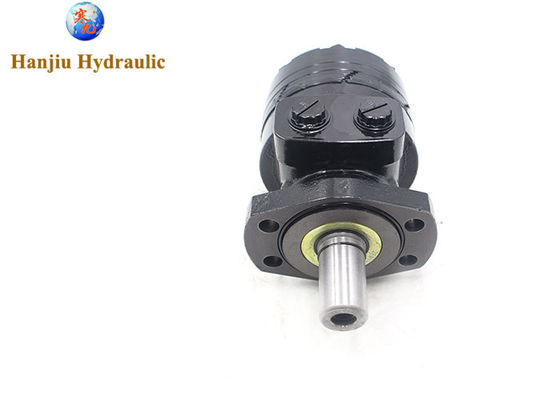

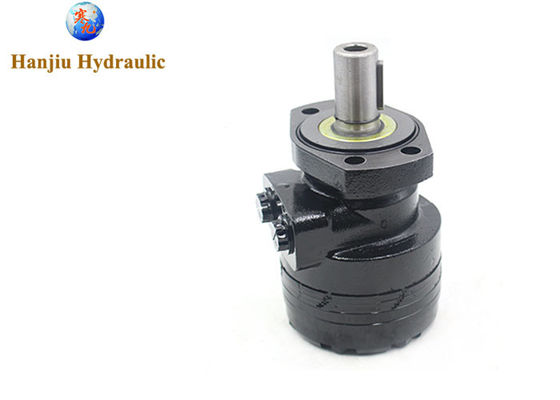

White RE505120A3120AAAA Sauer Danfoss Hydraulic Motor Hydraulic Conveyor Motor
Hanjiu High Torque BMER-125 Replaces American Parker/White/Cross/Danfoss 505/506 Hydraulic Oil Motor
The BMER series hydraulic motors offer the perfect compromise between price and performance by prducing work horse power at a reasonable cost. Although these motors perfrom well in a wide range of applications, they are especially suited for low flow, high pressure applications. During startup, pressure casuses the balance plate to flex toward the rotor, vastly improving volumetric efficiency. As the motor reaches operating pressure, the balance plate relaxes, allowing the rotor to turn freely which translates into higher mechanical efficiencies. Transmitting this power to the output shaft is the most durable drive link in it class. Four bearing options, combinded with standard mounting flanges and outplut shaft, allow the motor to be configured to suit nearly any application.
Main Specifications:
| Type | BMER 125 | BMER 160 | BMER 200 | BMER 230 | BMER 250 | BMER 300 | BMER 350 | BMER 375 | BMER 475 | BMER 540 | BMER 750 | |
Geometric displacement (cm3 /rev.) | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
| Max. torque (N*m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
| Max. output (kW) | cont. | 12.0 | 15 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 | |
| 1, | model number | BMER-2-125 |
| 2, | displacement | 125ml/r |
| 3, | flange | 4 - 4-13.5 Magneto Mount |
| 4, | shaft | 1.25'' (31.75) mm straight shaft, parrel key |
| 5, | oil port | 7/8-14 O-RING |
| 6, | drain | --- |
| 7, | rotation | Standard |
| 8, | paint | Black |
| 9, | replace | Parker TE TG TF/White/Cross/Danfoss 505/506 |
