| Item: | Orbit Hydraulic Motor | OEM #: | 505260A3123AAAAA |
|---|---|---|---|
| Manufacturer: | Hanjiu | Displacement: | 260ml/r |
| Mounting Flange: | 4-hole Wheel Flange | Shaft Type: | Spline |
| Highlight: | 505260a3123aaaaa white hydraulic motor,re white hydraulic motor,260ml/r white hydraulic motor |
||

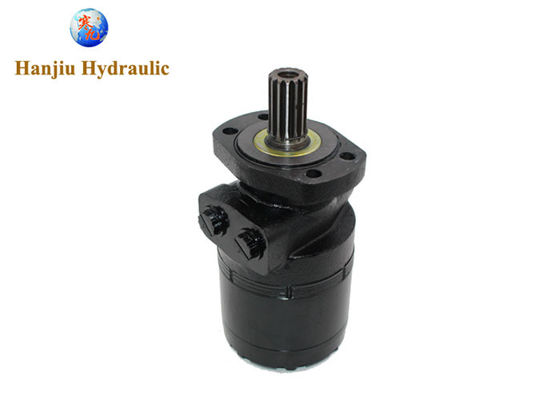

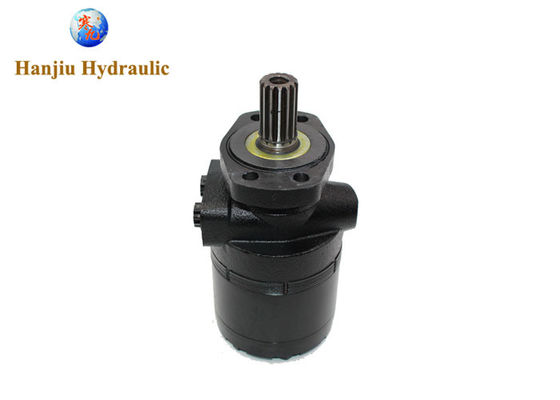

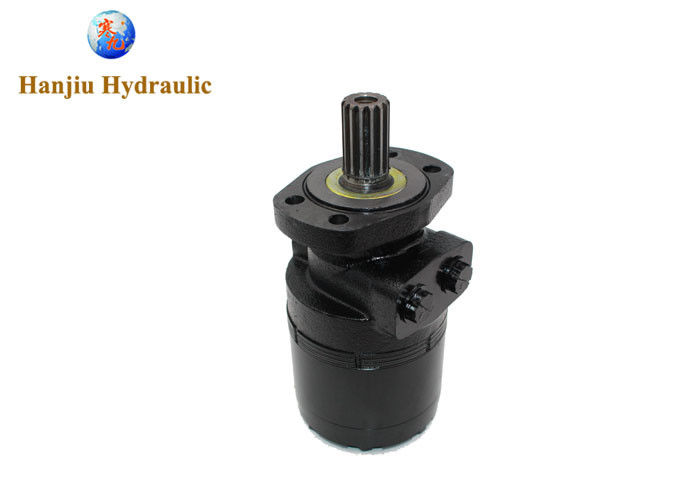

505260A3123AAAAA White Drive RE Series Interchange Hydraulic Motor
This is a White RE Series Interchange Hydraulic Motor, not made by White.
Quick review:
| Code Number: | 505260A3123AAAAA |
| Rotation |
Standard Rotation
|
| Displacement |
261 cm3/rev
[15.9 in3/rev]
|
| Mount & Port |
4-Hole, Magneto Mount, Aligned Ports, 7/8-14 UNF
|
| Shaft |
14 Tooth Spline
|
| Paint | Black |
Equivalent to White Drive Products 505260A3123AAAAA hydraulic motor. Low speed, high torque. 15.68 cubic inch displacement. 6 bolt magneto flange mount. 1-1/4" 14 soline shaft. 7/8"-14 SAE ports. 290 RPM maximum speed. 6195 inch lbs. of torque. 19.81 GPM maximum flow rate. 2973 PSI maximum pressure differential. Counter-clockwise rotation.
This motors offer the perfect compromise between price and performance by producing power at a reasonable cost. Although these motors perform well in a wide range of applications they are especially suited for low flow high pressure applications. During startup pressure causes the balance plate to flex toward the rotor vastly improving volumetric efficiency. As the motor reaches operating pressure the balance plate relaxes allowing the rotor to turn freely which translates into higher mechanical efficiencies. Torque is transmitted to the output shaft through the most durable drive link in its class.
