Product Details:
Payment & Shipping Terms:
|
| Item: | Orbit Hydraulic Motor | OEM #: | 800300C8923AAAAA |
|---|---|---|---|
| Manufacturer: | Hanjiu | Displacement: | 300 Ml/r |
| Mounting Flange: | 4-hole Wheel Flange | Shaft Type: | Spline |
| Highlight: | 800300c8923aaaaa danfoss white motors,800300c8923aaaaa white hydraulic motor,d9 series white hydraulic motor |
||

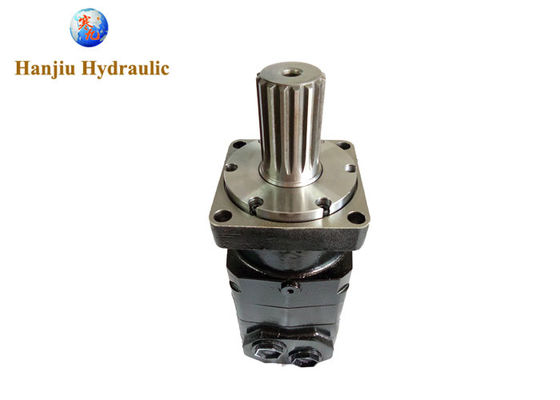

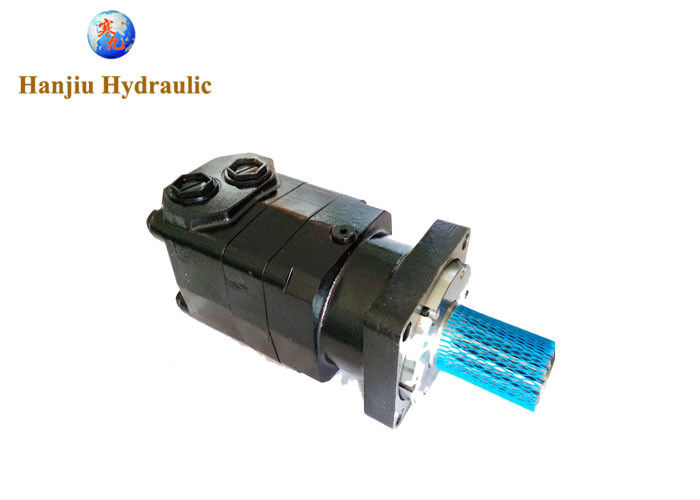

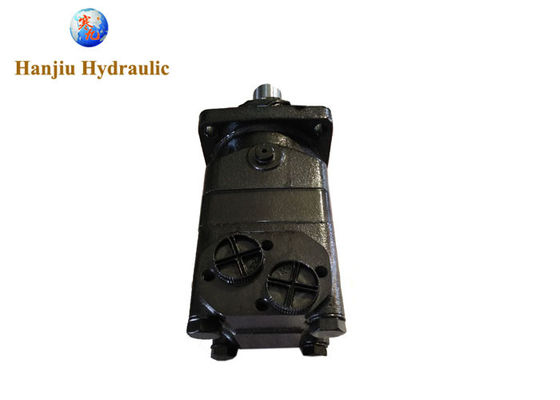

800300C8923AAAAA White Hydraulic Motor D9 Series Interchange
This is a replacement for White Hydraulic Motor D9 series, it's not made by White.
Applications:
Specification:
|
Displacement
cm3 [in
3/rev]
|
294 [17.9]
|
| Max. Speed RPM cont. inter. |
530 / 688
|
|
Max. Flow lpm [gpm] cont. inter.
|
159 [42] 204 [54]
|
|
Max. Torque Nm [lb-in] cont. inter.
|
870 [7700] 1017 [9000]
|
Overview:
The product is capable of producing torque values comparable to competitive motors, but with an industry leading breadth of displacements and shaft and porting options. In addition, the product incorporates dual tapered roller bearings, which improve load carrying capabilities. The motor is designed for use with a -drain, which reduces pressure on the shaft seal and maintains lubrication to internal drive components, maximizing motor life. The series is available with industry standard mounting flanges found throughout the global market place.
Features / Benefits:
Industry Standard Mounting Flanges that satisfy the global market place.
Dual Tapered Roller Bearings improve load carrying capability.
Nine Displacement Options provide industry leading design flexibility.
Roller Stator Design incorporates 8 lobe rotor and 9 pocket stator technology.
