| Item: | Orbit Hydraulic Motor | OEM #: | TB0330FP100AAAB |
|---|---|---|---|
| Shaft: | 1" Keyed | Rotation: | Standard |
| Maximum Speed: | 171 Cm3/rev | Max Flow: | 45 LPM |
| Highlight: | parker tb series lsht hydraulic motor,tb0330fp100aaab lsht hydraulic motor,series tb parker lsht motors |
||

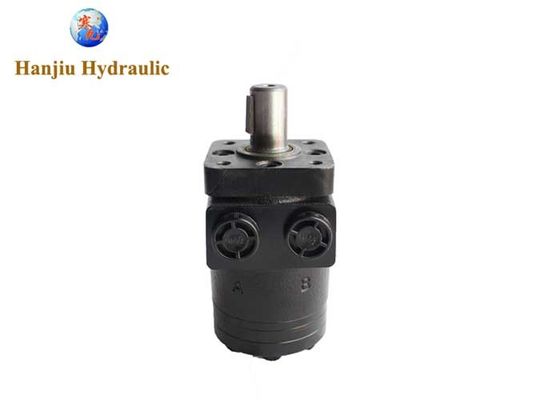

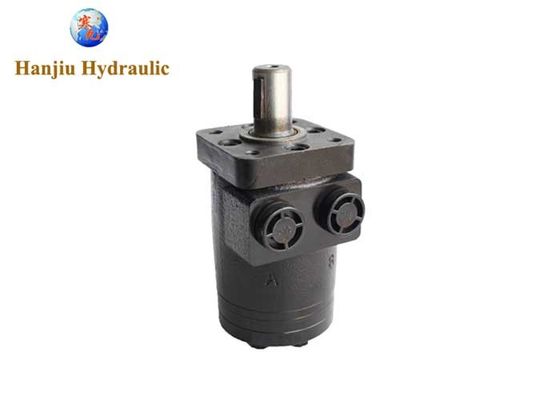

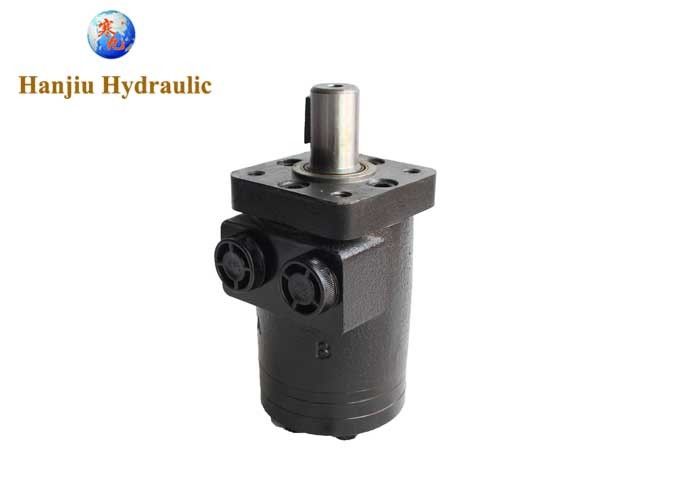

Parker TB0330FP100AAAB TB Series LSHT Hydraulic Motor Replacement - Made in China
Quick Review:
Drop in replacement for Parker TB0330FP100AAAB low speed, high torque hydraulic motor. 19.5 cu. in. / rev displacement. Maximum pressure 1350 PSI continuous, maximum pressure 1650 PSI intermittent. Torque 3657 in-lb. continuous, torque 4505 in-lb. intermittent. Maximum speed 171 RPM continuous. Flow rate 15 GPM. 1" diameter shaft with woodruff key. 1/2" NPT ports. 4 Bolt SAE mounting flange. 1 year warranty.
Series Details
This light to medium duty motor incorporates all the features of heavy duty motors. Design features include a high pressure shaft seal so external drains are never required, roller vane technology for automatic wear compensation, and full flow internal cooling and flushing. This is a very economical motor for most light to medium duty applications.
Specifications
| Series: | TB |
| Rotation: | Standard |
| Mounting: | 4 Bolt |
| Maximum Speed: | 171 rev/min |
| Maximum Oil Flow: | 45 lpm |
| Max. Differential Pressure: | 125 bar |
| Maximum Torque: | 509 Nm |
