Product Details:
Payment & Shipping Terms:
|
| Model No.: | Sectional Directional Control Valve | Warranty: | 12-18 Months |
|---|---|---|---|
| Spool: | 1, 2, 3, 4, 5, 6, ... | Flow: | 100 Liters |
| Spool Function: | O/Y/A | Max Pressure: | 350bar |
| Highlight: | sn5 sectional control valves,100 liters sectional control valves,220 bar sectional control valves |
||

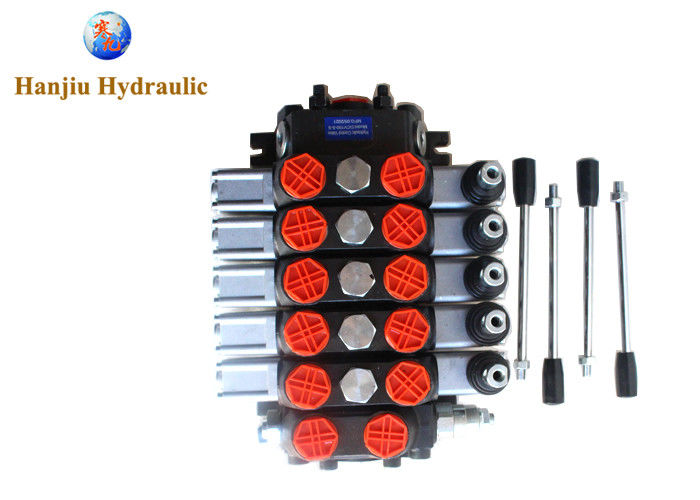

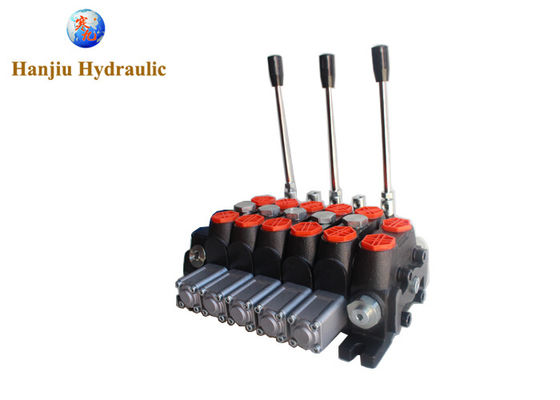

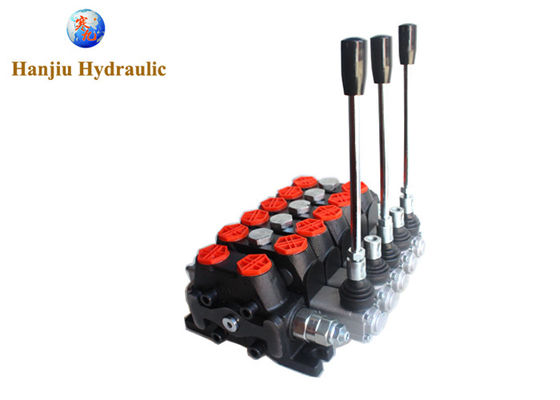

SN5 Sectional Directional Control Valves 100 Liters,5 Sections With Pressure Relief Valve 200 Bar
Compact construction. Low pressure drop.
Long service life. High efficiency.
Choice of various operation methods, such as manual, pneumatic, hydraulic, and electro-hydraulic.
Choice of various ports and circuit valves.
Spring return.
High accuracy spool is hardened for long term accuracy.
Sub-plate mounting.
Handle shift operation.
|
Norminal Flow
|
100 L/min
|
|
Max Flow
|
27GPM |
|
Max Pressure
|
315 bar/4600PSI
|
|
Control Type
|
manual, pneumatic, hydraulic, electro-hydraulic
|
|
Allowed back pressure
|
≤1 mpa
|
|
Oil port size
|
customizable
|
| Operating range | 15-75MM2/S |
| Viscosity | min 12 MM2/S |
| max 400 MM2/S | |
| Structure | sectional 1-12sections |
oil ports
| BSP Thread | Metric thread | US standard UNF thread | US standard NTP thread | ||||
| code | Thread size | code | Thread size | code | Thread size | code | Thread size |
| G04 | G1/4 | M16 | M16X1.5 | U10 | 5/8-12UNF | N06 | NPT3/8 |
| G06 | G3/8 | M18 | M18X1.5 | U12 | 3/4-16UNF | N08 | NPT1/2 |
| G08 | G1/2 | M20 | M20X1.5 | U14 | 7/8-14UNF | N12 | NPT3/4 |
| G12 | G3/4 | M22 | M22X1.5 | U16 | 1-12UNF | ||
| M27 | M27X2 | ||||||
spool functional
