| Item: | Orbit Hydraulic Motor | OEM #: | 112-1067-006 |
|---|---|---|---|
| Displacement: | 391.7 CM3/R [23.90 IN3/R] | Mounting Type: | Standard SAE CC |
| Shaft: | 38.10 STRAIGHT | Port: | STAGGERED PORTS |
| Highlight: | orbit hydraulic motor charlyn serie 6000,112-1067-006 motor charlyn serie 6000,112 1067 006 orbit hydraulic motor |
||

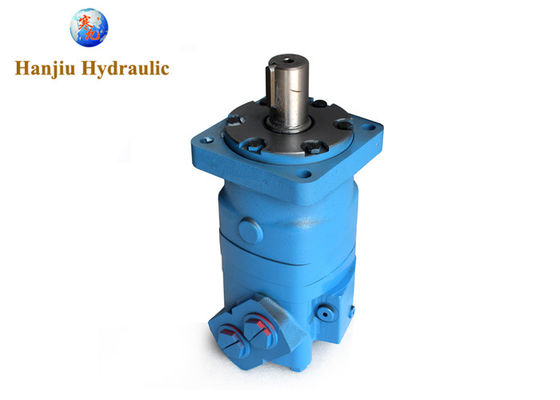

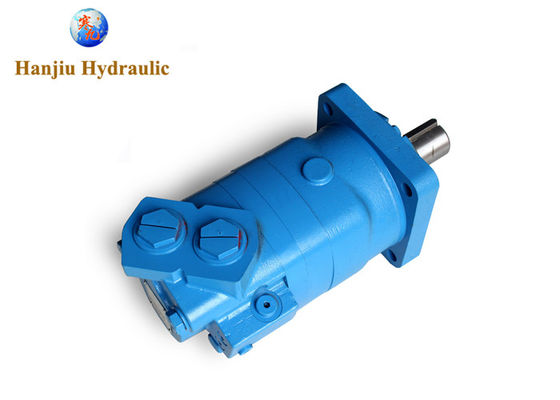

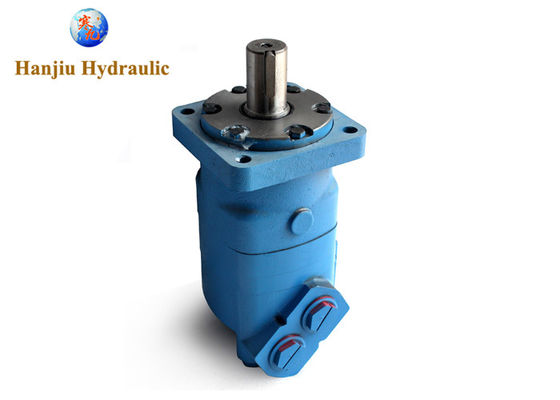

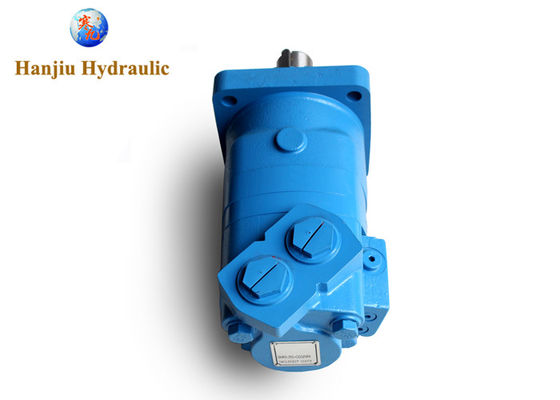

Orbit Hydraulic Motor CHARLYN 6000 Series 112-1067-006 Aftermarket
OVERVIEW
It has the same form, fit, mounting, size, installation, size and performance of the CHARLYNN motor.
It's suitable for mining, marine, forestry, industrial applications, Winches, drills, roller presses, wheel motors.
It's cost is 50% lower than CHARLYNN 6000 Series.
Contact us for a quote.
| Feature | Code | Description |
|---|---|---|
| PRODUCT | M | MOTOR |
| SERIES | 06 | 6000 SERIES |
| DISPLACEMENT | 239 | 391.7 CM3/R [23.90 IN3/R] |
| MOUNTING TYPE | AB | STANDARD; (SAE CC); 4 BOLT; 127.0 [5.00] PILOT DIA. 14.35 [.565] DIA. HOLES ON 162.0 [6.38] DIA. BOLT CIRCLE |
| OUTPUT SHAFT | 01 | 38.10 [1.500] DIA. STRAIGHT SHAFT WITH .375-16 UNC-2B THREAD IN END; 9.52 [.375] SQ X 41.28 [1.625] STRAIGHT KEY |
| PORTS | AA | 1.3125-12 UN-2B SAE O-RING PORTS - STAGGERED PORTS |
| FLOW OPTIONS | 02 | .4375-20 UNF-2B SAE O-RING PORT WITH CHECK VALVE |
| LOW PRESSURE RELIEF | 0 | NONE |
| PRESSURE/FLOW OPTION | 00 | NONE |
| GEROLER OPTION | 0 | STANDARD |
| SEAL OPTION | 0 | STANDARD |
