Product Details:
Payment & Shipping Terms:
|
| Item: | LSHT Motors | Model: | 119-1031 |
|---|---|---|---|
| Displacement: | 940 Cm3/R | Flange: | Standard Mount |
| Shaft: | 2 1-4 Straight | Port: | 1.3125-12 UN-2B SAE O-RING STAGGERED PORTS |
| Highlight: | 119-1031 lsht motors,940 cm3/r lsht motors,119-1031 lsht hydraulic motor |
||
MOTOR ORBITAL MOD. 119-1031_ 940 Cm3/R Standard Mount DIA. EJE 2 1-4 Straight
Quick view:
Motors - 10000 Series; Standard Mount Motor
| Feature | Code | Description |
|---|---|---|
| PRODUCT | M | MOTOR |
| SERIES | 10 | 10,000 SERIES |
| DISPLACEMENT | 574 | 940.8 CM3/R [57.41 IN3/R] |
| MOUNTING TYPE | AA | STANDARD, 4 BOLT; 127.0 [5.00] PILOT DIA. 16.76 [.660] DIA. HOLES ON 161.92 [6.375] DIA. BOLT CIRCLE. |
| OUTPUT SHAFT | 01 | 57.15 [2.250] DIA. STRAIGHT SHAFT WITH .500-20 UNF-2B THREAD IN END, 12.7 [.50] SQUARE X 63.5 [2.50] STRAIGHT KEY |
| PORTS | AA | 1.3125-12 UN-2B SAE O-RING STAGGERED PORTS |
| FLOW OPTIONS | 01 | .5625-18 UNF-2B DRAIN SAE O-RING PORT |
This is a Eaton Char-lynn motor cross reference 119-1030
Features & Benefits
• High torque and flow
• Many options like flange, shaft, displacement, ports type
• Low pressure loss even in higher flows
• High power density for demanding mobile and industrial applications
• Many options to draw from
• Form, fit, and function the same, at a substantial savings.
• All units are TESTED prior to shipment, and come complete with a 1 year warranty.
• Item is not in stock, delivery time according to your needed quantity, but generally within 45 days.
| Displacement | cc/rev | 345 | 480 | 665 | 940 |
| Max. Speed* | rpm | 501 | 354 | 254 | 179 |
| Flow | lpm | 170 | 170 | 170 | 170 |
| Torque* | Nm | 1040 | 1475 | 2085 | 2700 |
| Press. ∆bar** | bar | 205 | 205 | 205 | 190 |
Questions? Give us a call 24hrs a day or email.

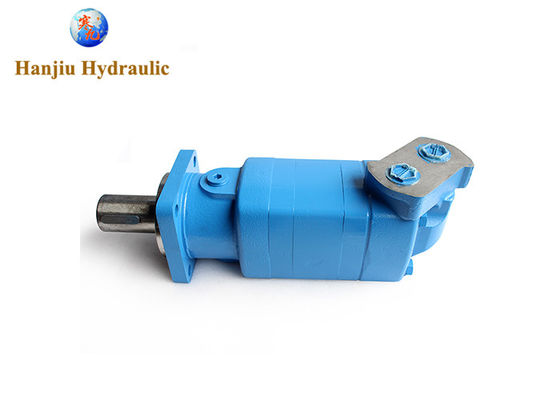

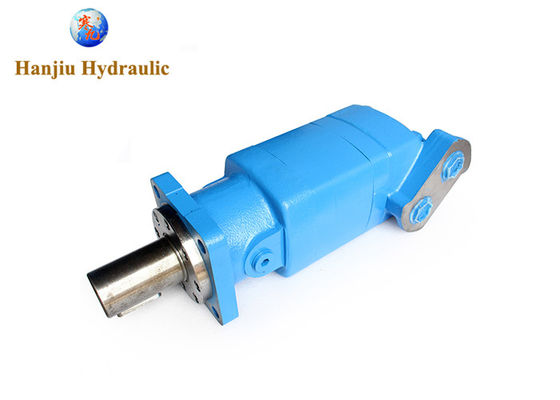

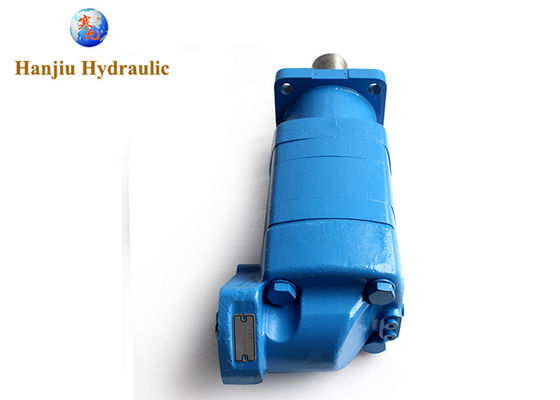

Below is reference photo of Char-lynn motor cross reference 119-1030-003, and also more aftermarket notors of Eaton Char-lynn
A compact, highly efficient hydraulic motor is a key component of a hydraulic drive system. Hanjiu offers a wide variety of motors with unique performance characteristics which are designed for superior, efficient system performance. Contact us today to discuss your questions or application needs with our team.
