| Item: | LSHT Motors | Model: | 104-1034-006 |
|---|---|---|---|
| Displacement: | 244.3 CM3/R | Flange: | STANDARD, 2 BOLT |
| Shaft: | 31.75 DIA. 14 TOOTH | Port: | .875-14 UNF-2B SAE O-RING PORTS |
| Highlight: | 104-1034-006 charlyn motors,2 Bolt charlyn motors,Sae A Mount charlyn motors |
||
Char lynn motor 104-1034-006, 2 Bolt SAE-A Mount, 1-1/4″ Tooth Splined Shaft
Quick view:
| Feature | Code | Description |
|---|---|---|
| PRODUCT | M | MOTOR |
| SERIES | 02 | 2000 SERIES |
| DISPLACEMENT | 149 | 244.3 CM3/R [14.91 IN3/R] |
| MOUNTING TYPE | AC | STANDARD, 2 BOLT; 82.6 [3.25] PILOT DIA. 13.59 [.535] DIA. HOLES ON 106.4 [4.19] DIA. BOLT CIRCLE. SAE A |
| OUTPUT SHAFT | 04 | 31.75 [1.250] DIA. FLAT ROOT SIDE FIT, 14 TOOTH, 12/24 DP 30 DEG. INVOLUTE SPLINE WITH .375-16 UNC-2B THREAD IN END, 33.0 [1.30] MINIMUM FULL SPLINE LENGTH |
| PORTS | AA | .875-14 UNF-2B SAE O-RING PORTS - STAGGERED PORTS |
| FLOW OPTION | 01 | .4375-20 UNF-2B SAE O-RING PORT |
This is a Aftermarket Char-Lynn motor 104-1034-006
OVERVIEW
*Three-zone design for longer life and true bi-directionality
*Bearings that meet the highest standards of the industry
*Options to optimize performance in every application
*Integrated crossover relief valve option
*Two-bolt flange: SAE A with 3-1/4" pilot diameter
* drain: 7/16"-20 UNF-2B O-ring port size 4

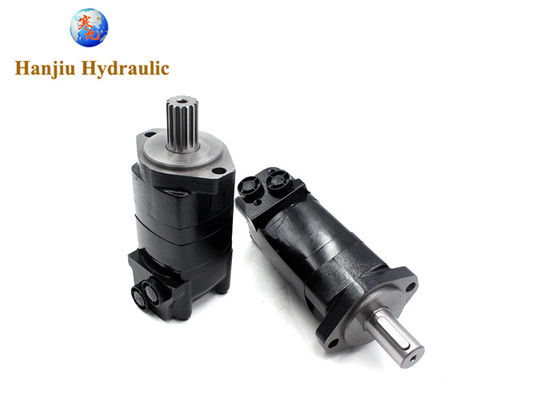

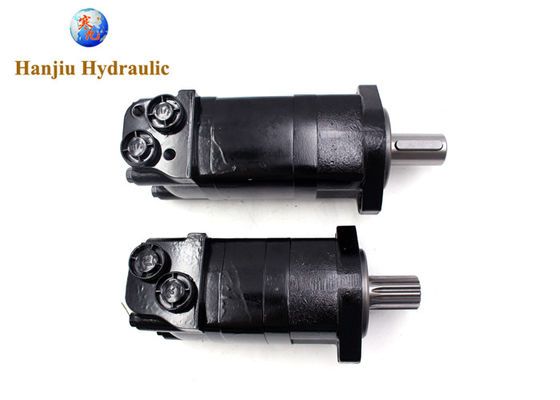

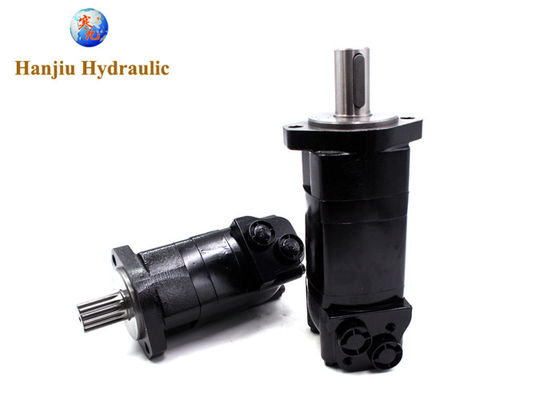

Below is reference photo of aftermarket Char-Lynn motor 104-1034-006, and also more aftermarket notors of Eaton
A compact, highly efficient hydraulic motor is a key component of a hydraulic drive system. Hanjiu offers a wide variety of motors with unique performance characteristics which are designed for superior, efficient system performance. Contact us today to discuss your questions or application needs with our team.
