Product Details:
Payment & Shipping Terms:
|
| Model No.: | P40,P45,P60,P80,P120 | Warranty: | 12-18 Months |
|---|---|---|---|
| Spool: | 1, 2, 3, 4, 5, 6, ... | Flow: | 40lt, 50lt, 60lt, 80lt, 100lt, 120lt, 140lt, ... |
| Spool Function: | O/Y/A | Control Mode: | Manual,hydraulic ,pneumatic,electric |
| Highlight: | monoblock hydraulic directional control valve,monoblock directional control valve,40lt monoblock hydraulic directional control valve |
||

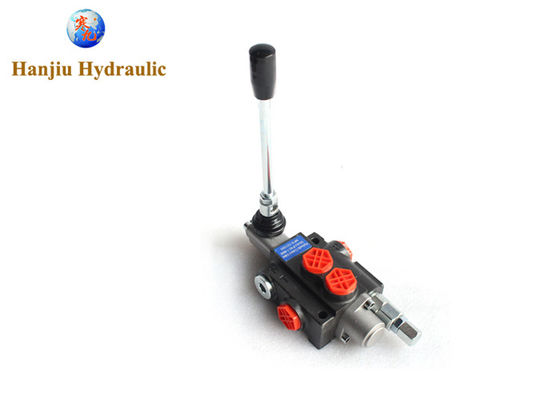

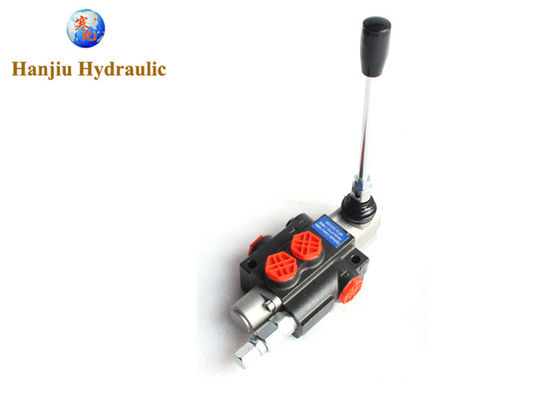

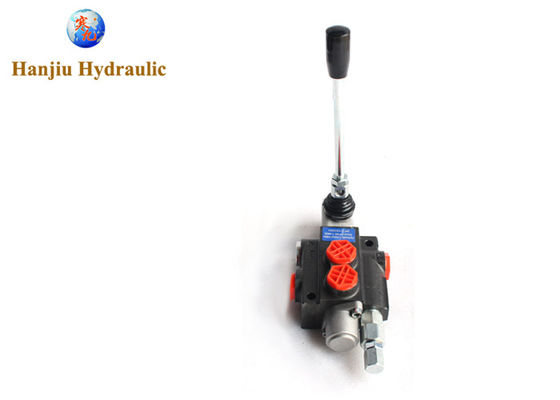

P40 Monoblock Valve Hydraulic Directional Valve Npt 1/2 Port Size
P40 series valves with middle-high pressure monoblock construction is developed based on Europe
technology.
| Ambient temperature | -40C...+60C |
| Viscosity | 12 ...800 mm2/s |
| Fluid temperature | -15C...+80C |
| Filtration | 10 to NAS 1638 |
| Max operating pressure | 250bar |
| Back pressure | 50 bar |
| Nominal flow | 40 l/min |
| Leakage(A,B-T) | 15cm3/min at 120bar |
| Spool stroke | 6 mm |
| Actuating force | < 200 N |
| Modification/ Spools | with 1 to 7 |
Hydraulic directional valves refers to a hydraulic directional valve is composed of two or more valves as the main body,
and according to different working requirements as well as assisting devices such as shock valves, one-way valves,
and charge valves. The selector valves can be divided into hydraulic manual directional valve, hydraulic solenoid directional valve,
electric-hydraulic valves, pneumatic valves, etc. according to the way of operating the hydraulic control valve movement.
Hanjiu: a professional hydraulic components manufacture in China,our main products are hydraulic motors/steering units/monoblock control valves/gear pumps, we have a rapid development in such a short time due to the high quality prodcuts,competitive price,stable delivery and best after sales service.
