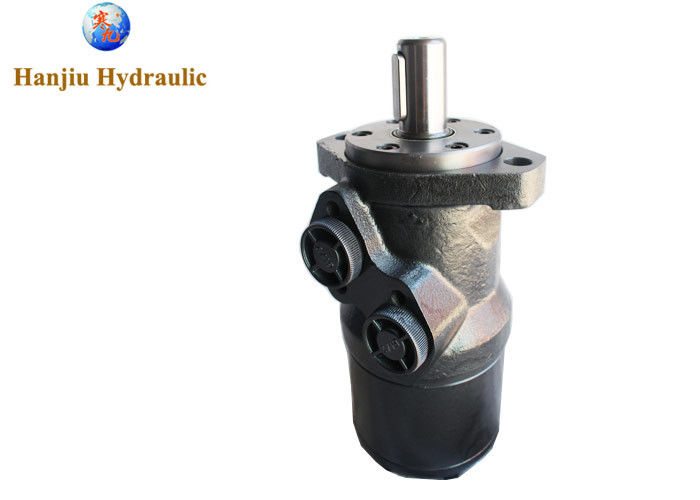

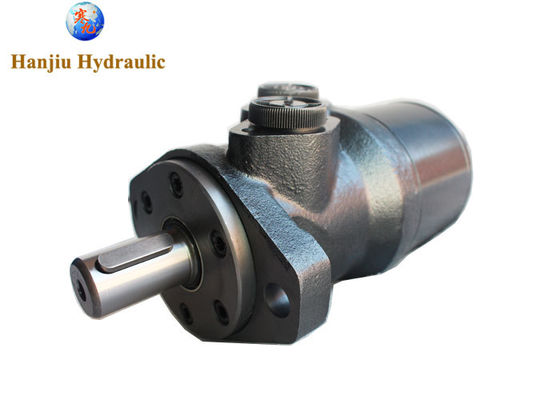

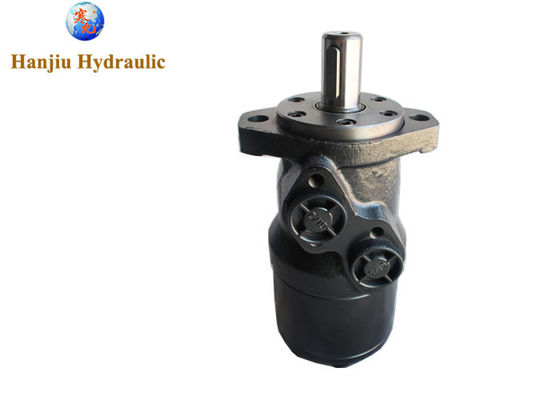

36cc Feed Roller Omr Mr Low Speed High Torque Hydraulic Motor

Large Image : 36cc Feed Roller Omr Mr Low Speed High Torque Hydraulic Motor

Product Details:

Place of Origin:	China
Brand Name:	Hanjiu
Certification:	ISO9001:2015
Model Number:	BMR315

Payment & Shipping Terms:

Minimum Order Quantity:	50 units
Price:	Negotiable
Packaging Details:	Carton packing , with a tray or wooden box if needed .
Delivery Time:	10-15 working days
Payment Terms:	T/T, Western Union,Paypal .
Supply Ability:	100,000 units / Year

Contact Now

Detailed Product Description

Product Name:	Hydraulic Orbital Motors	Displacement:	36cc,50cc,80cc,100cc,125cc,160cc......500cc
Applications:	Agricultural Machine, Feeder Roller Parts,tractor Attachment	Replacement:	Hanjiu BMR = OMR, Eaton S,T Series , M+S MR Etc
Max.torque:	Peak 650 N.M	Max.flow:	Cont 60/int.75 L/min
Highlight:	mr low speed high torque hydraulic motor , omr low speed high torque hydraulic motor , 36CC high torque low rpm hydraulic motor

Hydraulic Feed Roller Motor High Torque Low Speed Media Motor OMR MR

Product details:

product type	BMR motors
displacement	315cc
flange	2-φ13.5Rhomb-flange pilot φ82.5x8
shaft	φ25 straight key
oil ports	G1/2 manifold mount 4-M8,G1/4

Main Specifications:

Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1085	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1220	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	360	360	390	390	365
	int.	83	126	220	280	340	430	440	490	535	495
	peak	105	165	270	320	370	460	560	640	650	680
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	10	7	6	5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	9.5	9	8
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	16.5	13	11	9	7
	int.	16.5	17.5	20	20	20	20	17.5	15	13	10
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	20	17.5	15
Max. flow (L/min)	cont.	40	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	45	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

Technical data for BMR with 31.75 and 32 shaft:

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1250	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1520	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	380	450	540	550	580
	int.	83	126	220	280	340	430	500	610	690	690
	peak	105	165	270	320	370	460	560	710	840	830
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	11	10	9	7.5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	12	10	9
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	17.5	17.5	17.5	13.5	11.5
	int.	16.5	17.5	20	20	20	20	20	20	17.5	15
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	21	17.5
Max. flow (L/min)	cont.	45	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	55	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.

Hydraulic motor details:

Needle bearing: Double needle bearing ,bear more large radial force, no break

Geroler gear:adapted advanced geroler gear, low start pressure,stable performance

Seal kits:adopted high pressure seal kits from Germany, bear higher back pressure,
output large torque

Shaft material:high hardness HRC56-62 steel processing:850°. high temperature quenching treatment,
no shaft brake

Paint:surface phosphating,no rust, long life.

36cc Feed Roller Omr Mr Low Speed High Torque Hydraulic Motor 0

If you have an existing hydraulic system and you need torque, these hydraulic motors are ideal products. Models such as light series hydraulic motors , heavy series hydraulic motors are available.

We are very glad to be your hydrauic products partner,try us once, you will not regret
