High Performance Standard Type ODM O Motors 32mm Straight Key Shaft

Large Image : High Performance Standard Type ODM O Motors 32mm Straight Key Shaft

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU CHINA
Certification:	ISO9001:2015
Model Number:	BMSY 80

Payment & Shipping Terms:

Minimum Order Quantity:	50 Pieces
Price:	Negotiable
Packaging Details:	2pcs/32x32x17cm
Delivery Time:	25 - 35 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability:	100000 pieces per year

Contact Now

Detailed Product Description

Product:	O-Series Motor	Displacement:	80 Ml/r
Flange:	4 Bolts Square Flange	Shaft:	32mm
Max Pressure:	Cont.20.5/int.27.5 Mpa	Max Speed:	Cont.800/int.988rpm
Highlight:	32mm straight key shaft o motors , 32mm shaft o motors , odm o motors

High Performance O-Series Motors Standard Type 32mm Straight Key Shaft

Motor (Hydraulic) BMSY Series

This motor is characterised by its high quality and its reasonable price.

This product’s features are as follows:

hydraulic motor BMSY
selectable displacement: 80 ccm/REV – 475 ccm/REV
ports: G 1/2’’
shaft: Ø 32 mm cylindrical with key A10 x 8 x 45
4-hole SAE flange
disc valve type
internal check valve
incl. high pressure seal up to 150 bar
OEM quality
optimized for small spaces

Main Specifications:

Type		BMSY 80	BMSY 100	BMSY 125	BMSY 160	BMSY 200	BMSY 250	BMSY 315	BMSY 400	BMSY 475
Geometric displacement (cm3 /rev.)		80.6	100.8	125	157.2	200	252	314.5	394	475
Max. speed (rpm)	cont.	800	748	600	470	375	300	240	185	155
Max. speed (rpm)	int.	988	900	720	560	450	360	280	225	185
Max. torque (N·m)	cont.	190	240	310	316	400	450	560	880	910
	int.	240	300	370	430	466	540	658	980	990
	peak	260	320	400	472	650	690	740	751
Max. output (kW)	cont.	15.9	18.8	19.5	15.6	15.7	14.1	14.1	11	9
Max. output (kW)	int.	20.1	23.5	23.2	21.2	18.3	17	18.9	12	11
Max. pressure drop (MPa)	cont.	17.5	17.5	17.5	15	14	12.5	12	16	14
	int.	21	21	21	21	16	16	14	19	15
	peak	22.5	22.5	22.5	22.5	22.5	20	18.5	21	17.5
Max. flow (L/min)	cont.	65	75	75	75	75	75	75	75	75
Max. flow (L/min)	int.	80	90	90	90	90	90	90	90	90
Max. inlet pressure (MPa)	cont.	25	25	25	25	25	25	25	25	25
Max. inlet pressure (MPa)	int.	30	30	30	30	30	30	30	30	30
Weight (kg)		9.8	10	10.3	10.7	11.1	11.6	12.3	12.6	14.3

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

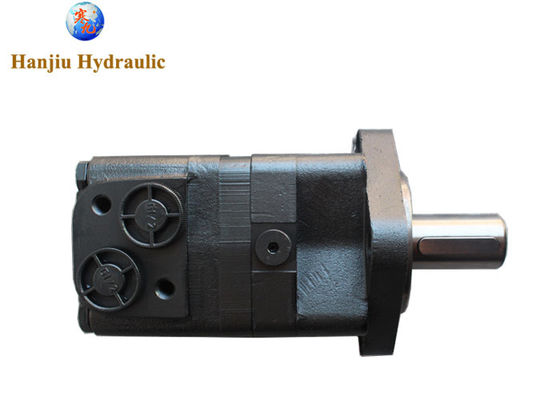

High Performance Standard Type ODM O Motors 32mm Straight Key Shaft 0

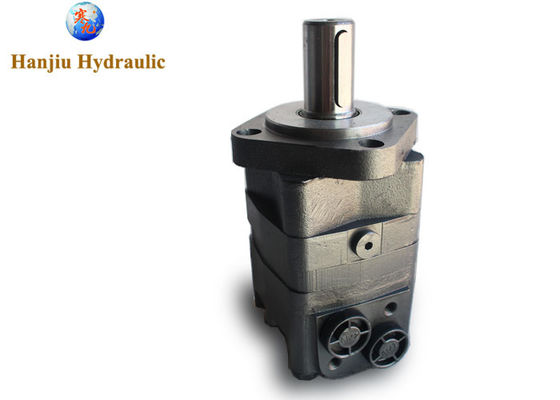

High Performance Standard Type ODM O Motors 32mm Straight Key Shaft 1

different types with different shafts,multipal flange

High Performance Standard Type ODM O Motors 32mm Straight Key Shaft 2
