Product Details:
Payment & Shipping Terms:
|
| Product: | Disc Valve Hydraulic Motor | Material: | Cast Iron |
|---|---|---|---|
| Flange: | 2 Bolts Flange | Shaft: | Tapered Shaft |
| Max Flow: | Cont.75/int.90L/min | Max Speed: | Cont.240rpm/int.280rpm |
| Highlight: | 2 bolt flange Hydraulic Orbital Motor,Tapered shaft Hydraulic Orbital Motor,BSPP ports Hydraulic Orbital Motor |
||

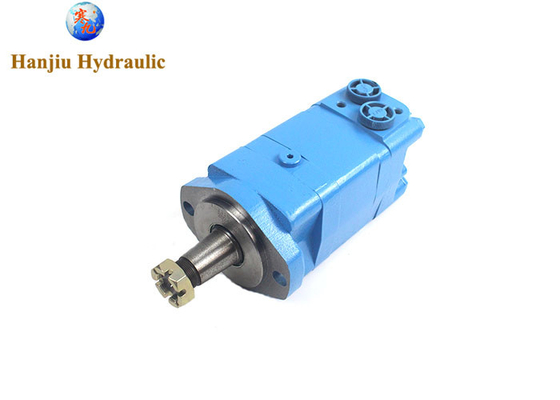

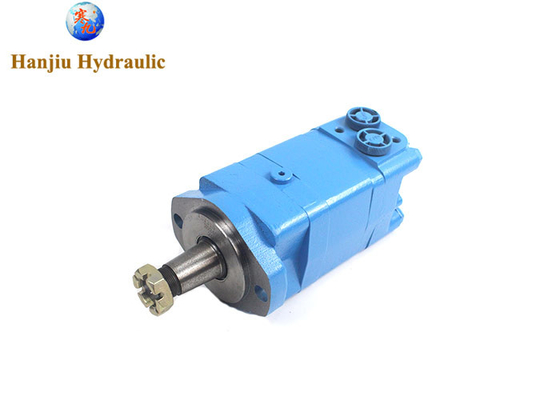

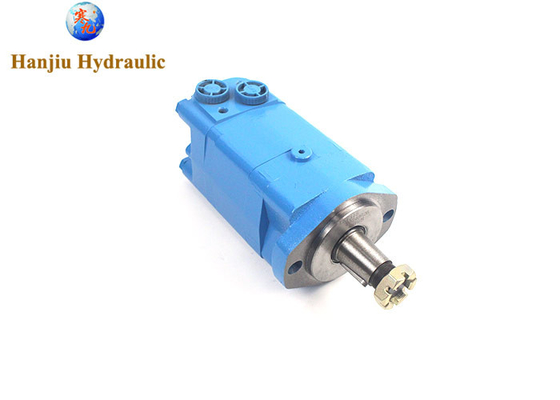

Hydraulic Orbital Motor OMS315, 2 bolt flange tapered shaft with BSPP ports
PTO DRIVE MOTOR DETAILS:
| BRAND | HANJIU |
| TYPE | BMSY315 |
| REPLACEMENT | OMS315,MS315 |
| FLANGE | 2 BOLTS FLANGE,DIAMETERS 106.4MM |
| SHAFT | Tapered SHAFT |
| PORTS | G1/2 |
Main Specifications:
| Type | BMSY BMSE 80 |
BMSY BMSE 100 |
BMSY BMSE 125 |
BMSY BMSE 160 |
BMSY BMSE 200 |
BMSY BMSE 250 |
BMSY BMSE 315 |
BMSY BMSE 375 |
|
| Geometric displacement (cm3 /rev.) |
80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 200 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 240 | |
| Max. torque (N·m) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 536 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 645 | |
| peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 | |
| Max. output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11.8 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 17 | |
| Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 10 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 12 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 14 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
Gerotor motor working principle
Advantages of Gerotor Motors
High torque output Ideal for heavy loads.
Smooth operation Consistent output without pulsations.
Compact design Efficient use of space.
Reversible Can operate in both clockwise and counterclockwise directions.
Wide speed range Versatile for various applications.
Applications of Gerotor Motors
Construction equipment Excavators, cranes, drilling rigs
Agricultural machinery Tractors, harvesters
Industrial machinery Presses, conveyors, mixers
Marine applications Winches, steering systems
Mobile equipment Forklifts, aerial work platforms
Would you like to know more about specific applications or how to select the right Gerotor motor for your project
Contact a hydraulics specialist or HANJIU . Solve all your hydraulic motor problems
