Hydraulic 2000 Series Char Lynn Motor With Brake Valve 2-400 AC4+V2L17 A6 60

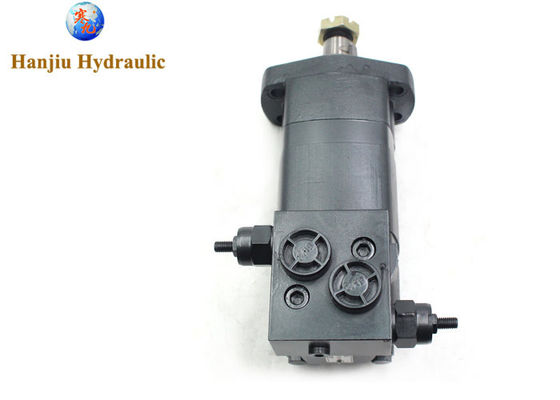

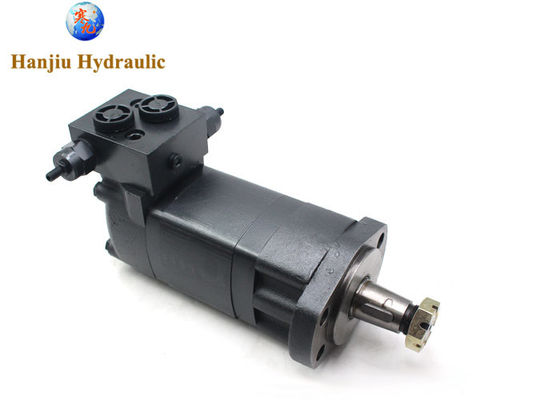

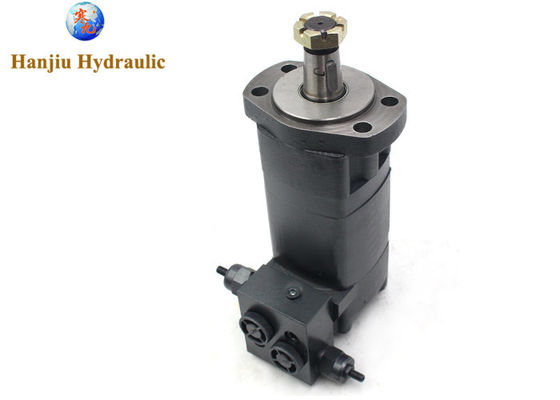

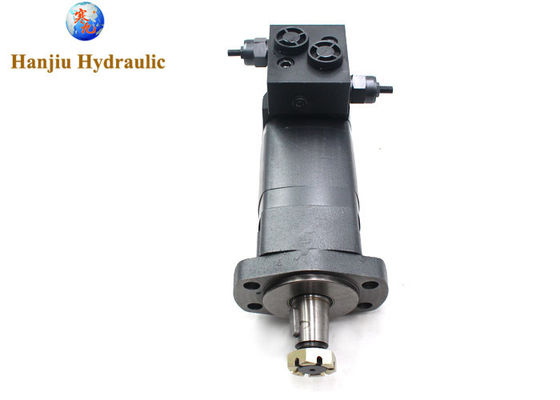

Large Image : Hydraulic 2000 Series Char Lynn Motor With Brake Valve 2-400 AC4+V2L17 A6 60

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU CHINA
Certification:	CE
Model Number:	BMK2-400

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Negotiable
Packaging Details:	2pcs/32x32x17cm
Delivery Time:	25 - 35 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability:	100000 pieces per year

Contact Now

Detailed Product Description

Product:	Disc Valve Hydraulic Motor	Replace:	Charlynn
Apply To:	Rock Drills Machines	Displacement:	400ml/r
Flange:	4 Hole, Rhomb	Shaft:	Cone-shaft 31.75mm
Max Flow:	75 L/min	Max Speed:	280 Rpm
Highlight:	2000 series char lynn motor , 2000 series char lynn motor hydraulic , CE 2000 series char lynn motor

Hydraulic Motor Charlynn 2000series With Brake Valve 2-400 AC4+V2L17 A6 60 Motor

product details:

type:BMK2

displacement:400mm

shaft:31.75mm cone shaft

flange:4bolts flange

ports:G1/2

drain ports:G1/4

brake valve flow rate:60liters

valve pressure:170bar

Main Specifications:

Type		BMSY BMSE 80	BMSY BMSE 100	BMSY BMSE 125	BMSY BMSE 160	BMSY BMSE 200	BMSY BMSE 250	BMSY BMSE 315	BMSY BMSE 375
Geometric displacement (cm3 /rev.)		80.6	100.8	125	157.2	200	252	314.5	370
Max. speed (rpm)	cont.	800	748	600	470	375	300	240	200
Max. speed (rpm)	int.	988	900	720	560	450	360	280	240
Max. torque (N·m)	cont.	190	240	310	316	400	450	560	536
	int.	240	300	370	430	466	540	658	645
	peak	260	320	400	472	650	690	740	751
Max. output (kW)	cont.	15.9	18.8	19.5	15.6	15.7	14.1	14.1	11.8
Max. output (kW)	int.	20.1	23.5	23.2	21.2	18.3	17	18.9	17
Max. pressure drop (MPa)	cont.	17.5	17.5	17.5	15	14	12.5	12	10
	int.	21	21	21	21	16	16	14	12
	peak	22.5	22.5	22.5	22.5	22.5	20	18.5	14
Max. flow (L/min)	cont.	65	75	75	75	75	75	75	75
Max. flow (L/min)	int.	80	90	90	90	90	90	90	90
Max. inlet pressure (MPa)	cont.	25	25	25	25	25	25	25	25
Max. inlet pressure (MPa)	int.	30	30	30	30	30	30	30	30
Weight (kg)		9.8	10	10.3	10.7	11.1	11.6	12.3	12.6

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
