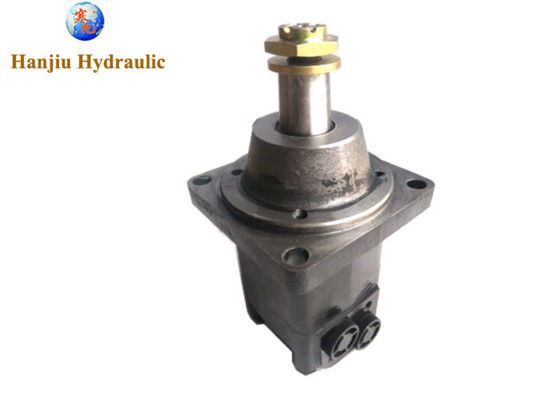

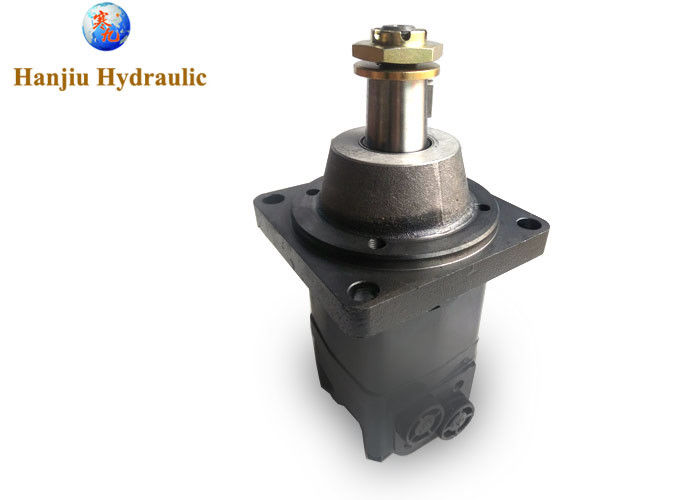

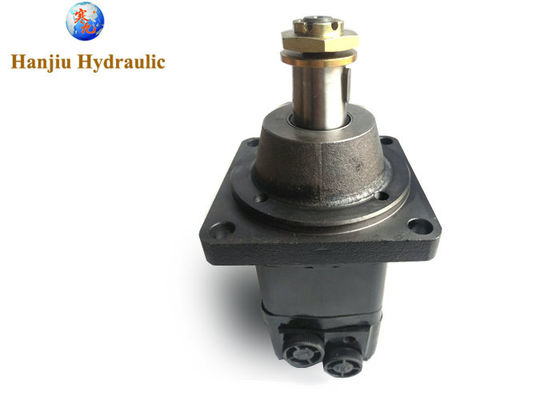

OMSW BMSW Hydraulic Wheel Motor Straight Cone Shaft

Large Image : OMSW BMSW Hydraulic Wheel Motor Straight Cone Shaft

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU CHINA
Certification:	CE
Model Number:	BMSY-315-W-T1

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Negotiable
Packaging Details:	2pcs/32x32x17cm
Delivery Time:	25 - 35 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability:	100000 pieces per year

Contact Now

Detailed Product Description

Product:	Disc Valve Hydraulic Motor	Replace:	Eaton 2-200; OMSY
Apply To:	All Hydraulic Winches	Displacement:	315 Ml/r
Flange:	Wheel Flange	Shaft:	35mm
Max Flow:	90 L/min	Max Speed:	280 Rpm
Highlight:	OMSW hydraulic wheel motor , BMSW hydraulic wheel motor , Straight Cone Shaft hydraulic wheel motor

Hydraulic Motor OMSW BMSW Wheel Motors Hydromot Disc Motor Straight Cone Shaft

Hanjiu BMSY-315-WT1 = Eaton Char lynn 2k series, from USA
Hanjiu BMSY-315-WT1 = OMS series, from Danmark
Hanjiu BMSY-315-WT1 = M+S MS series, from Bulgaria
we have strong ability to match OEM part no. and provide you highest service

Output volume (cc/rev): 315

Shaft: cone shaft 35 mm

max r.p.m.: 280

Torque max. (Nm): 1080

Power max. (kW): 18.9

Connection: G 1/2"

Leakage oil connection: G 1/4"

Specifications/ Technical Data:

This Hydraulic Winch Motor is a dis valve type motor. It's displacement start from 80 ml/r to 375 ml/r, speed from 200 rpm to 988 ml/r, torque from 190 N.m to 751 N.m, max output from 11.8 kw to 23.5 kw, max flow from 65 L/min to 90 L/min. Below is the detail specifications of this BMS hydraulic winch motors.

Main Specifications:

Type		BMS BMSE 80	BMS BMSE 100	BMS BMSE 125	BMS BMSE 160	BMS BMSE 200	BMS BMSE 250	BMS BMSE 315	BMS BMSE 375
Geometric displacement (cm3 /rev.)		80.6	100.8	125	157.2	200	252	314.5	370
Max. speed (rpm)	cont.	800	748	600	470	375	300	240	200
Max. speed (rpm)	int.	988	900	720	560	450	360	280	240
Max. torque (N·m)	cont.	190	240	310	316	400	450	560	536
	int.	240	300	370	430	466	540	658	645
	peak	260	320	400	472	650	690	740	751
Max. output (kW)	cont.	15.9	18.8	19.5	15.6	15.7	14.1	14.1	11.8
Max. output (kW)	int.	20.1	23.5	23.2	21.2	18.3	17	18.9	17
Max. pressure drop (MPa)	cont.	17.5	17.5	17.5	15	14	12.5	12	10
	int.	21	21	21	21	16	16	14	12
	peak	22.5	22.5	22.5	22.5	22.5	20	18.5	14
Max. flow (L/min)	cont.	65	75	75	75	75	75	75	75
Max. flow (L/min)	int.	80	90	90	90	90	90	90	90
Max. inlet pressure (MPa)	cont.	25	25	25	25	25	25	25	25
Max. inlet pressure (MPa)	int.	30	30	30	30	30	30	30	30
Weight (kg)		9.8	10	10.3	10.7	11.1	11.6	12.3	12.6

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

BMSY
BMSYS
160
BMSY
BMSYS
80
BMSY
BMSYS
100
BMSY
BMSYS
125
BMSY
BMSYS
200
BMSY
BMSYS
250
BMSY
BMSYS
315
BMSY
BMSYS
400
BMSY
BMSYS
475

OMSW BMSW Hydraulic Wheel Motor Straight Cone Shaft 0
