BMSY Hose Reels Hydraulic Drive Motor Hose Handling Systems High Performance

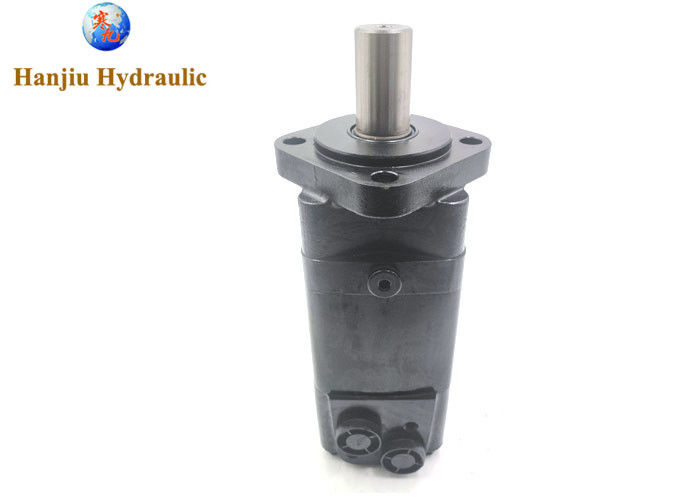

Large Image : BMSY Hose Reels Hydraulic Drive Motor Hose Handling Systems High Performance

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU CHINA
Certification:	CE
Model Number:	BMSY 500

Payment & Shipping Terms:

Minimum Order Quantity:	50 Pieces
Price:	Negotiable
Packaging Details:	2pcs/32x32x17cm
Delivery Time:	25 - 35 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability:	100000 pieces per year

Contact Now

Detailed Product Description

Product:	Hose Reels Drive Motor	Displacement:	500 Ml/r
Flange:	4 Bolts Square Flange	Shaft:	32mm
Max Flow:	Cont.75/int.90 L/min	Max Speed:	Cont.155/int.185rpm
Highlight:	BMSY Hydraulic Drive Motor , Hydraulic Drive BMSY Motor , 32mm Shaft Hydraulic Drive Motor

BMSY series hose reels hydraulic drive motor Hose Handling Systems high performance

BMSY new series motor adapt the advanced Geroler gear set designed with disc distribution flow

and high pressure.The unit can be supplied the individual variant in operating multifunction in

accordance with requirement of applications.

Characteristic featutres:

* Advanced manufacturing devices for the Geroler gear set, which use low pressure of start-up, provide smooth and

reliable operation and high efficiency.

* The output shaft adapts in tapered roller bearings that permit high axial and radial forces. The can offers

capacities of high pressure and high torque in the wide of applications.

* Advanced design in disc distribution flow, which can automatically compensate in operating with high volume

efficiency and long life , provide smooth and reliable operation.

* The new series motor is suitable for vehicles with greater loads and pressure drop

Main Specifications:

Type		BMSY 80	BMSY 100	BMSY 125	BMSY 160	BMSY 200	BMSY 250	BMSY 315	BMSY 400	BMSY 475
Geometric displacement (cm3 /rev.)		80.6	100.8	125	157.2	200	252	314.5	394	475
Max. speed (rpm)	cont.	800	748	600	470	375	300	240	185	155
Max. speed (rpm)	int.	988	900	720	560	450	360	280	225	185
Max. torque (N·m)	cont.	190	240	310	316	400	450	560	880	910
	int.	240	300	370	430	466	540	658	980	990
	peak	260	320	400	472	650	690	740	751
Max. output (kW)	cont.	15.9	18.8	19.5	15.6	15.7	14.1	14.1	11	9
Max. output (kW)	int.	20.1	23.5	23.2	21.2	18.3	17	18.9	12	11
Max. pressure drop (MPa)	cont.	17.5	17.5	17.5	15	14	12.5	12	16	14
	int.	21	21	21	21	16	16	14	19	15
	peak	22.5	22.5	22.5	22.5	22.5	20	18.5	21	17.5
Max. flow (L/min)	cont.	65	75	75	75	75	75	75	75	75
Max. flow (L/min)	int.	80	90	90	90	90	90	90	90	90
Max. inlet pressure (MPa)	cont.	25	25	25	25	25	25	25	25	25
Max. inlet pressure (MPa)	int.	30	30	30	30	30	30	30	30	30
Weight (kg)		9.8	10	10.3	10.7	11.1	11.6	12.3	12.6	14.3

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

Product details

Flange:4 bolts square flange φ106.4,pilotφ82.5X6.3

shaft:Shaft Ø 32 , parllel key 10×8×45

ports:G1/2 Manifold Mount;4/1G , 01M-2

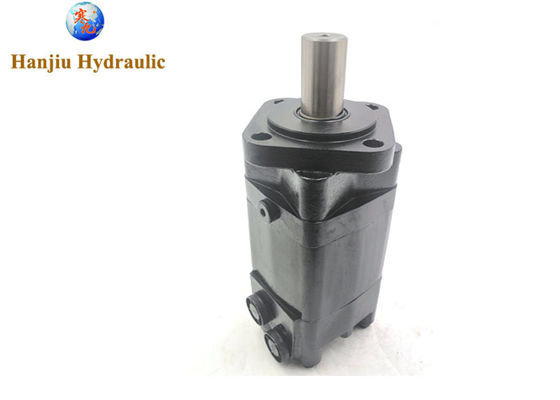

BMSY Hose Reels Hydraulic Drive Motor Hose Handling Systems High Performance 0

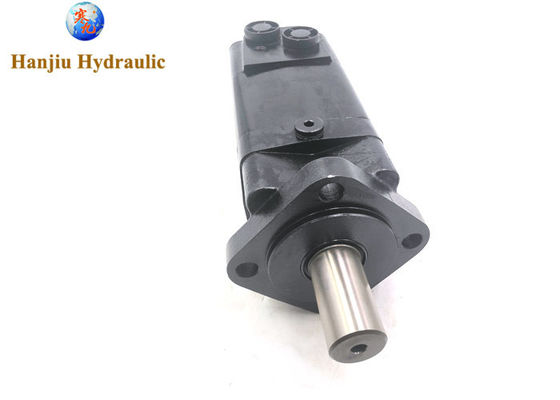

different types with different shafts,multipal flange

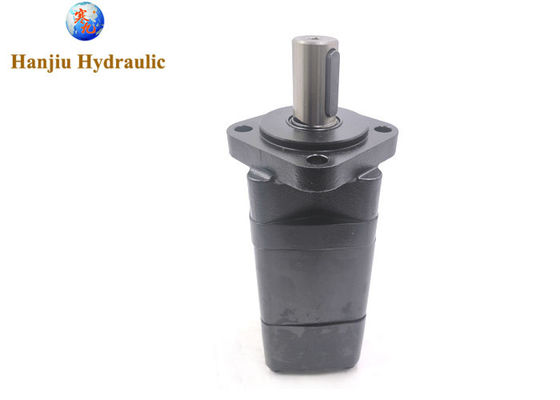

BMSY Hose Reels Hydraulic Drive Motor Hose Handling Systems High Performance 2
