| Type: | Hydraulic Disc Motors | Model No.: | BMK6-1000 |
|---|---|---|---|
| Max.torque(N.m): | Cont.1675N.m/int.1860N.m | Max.speed(rpm): | Cont.152rpm/int.230rpm |
| Max Pressure Drop: | Cont.14Mpa/int.14Mpa | Max Flow: | Cont.150l/min/int.225l/min |
| Highlight: | BMK6-1000 harvester parts,112-1063-006 harvester parts |
||

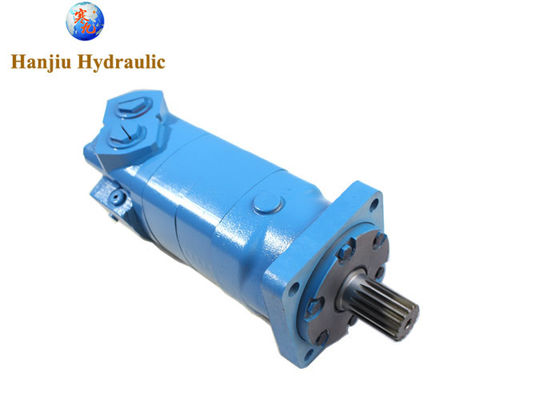

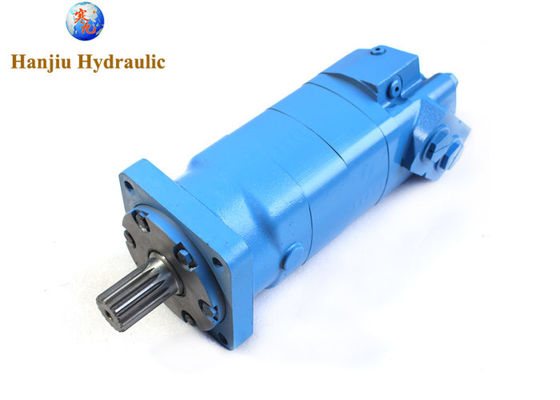

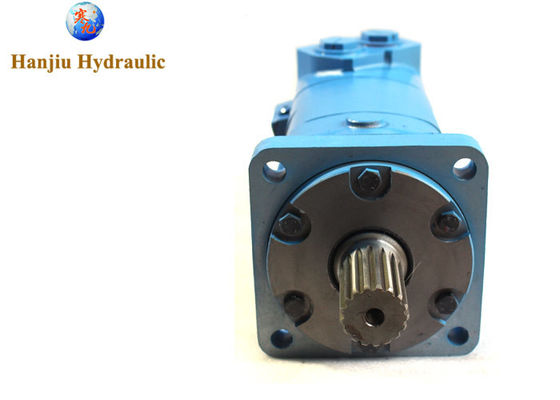

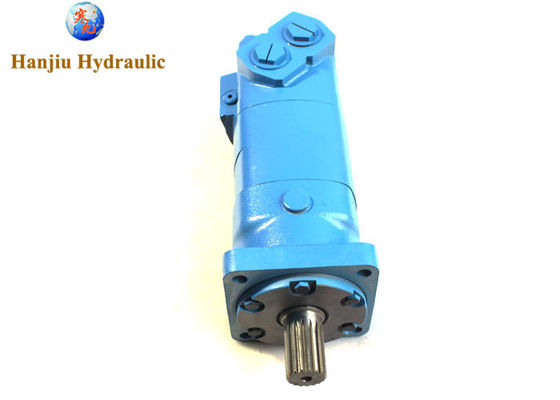

112-1063-006 1-1/2" 17 T Splined Shaft 60inch. harvester parts 4 Bolt SAE-CC Square Mount
BMK6-1000cc
Replace Char-lynn motor 6000 Series
Displacement: 981.6cc
Flange: 4x13.5 Square flange
Pilot: 127x12.5mm
Mounting distance: 161.9mm
Shaft: 17teeth shaft
Port:1-5/16-12UNC
Drain port: 7/16-20 UNF
Paint: Blue
spline shaft
| G2 | ShaftΦ38.1,parallel key9.52×9.52×57.15 |
| FE | ShaftΦ38.1,splined tooth17-DP12/24 |
| Y1 | ShaftΦ40,parallel key12×8×63 |
| Y | ShaftΦ40,parallel key12×8×45 |
| H | ShaftΦ42,splined tooth 8-42x36x7 |
| H1 | ShaftΦ42,splined tooth 8-42x36x7 |
| P | ShaftΦ40,splined tooth 6-42x35x10 |
| P1 | ShaftΦ35,splined tooth 6-435x29x10 |
| T1 | Cone-shaft 1:8 Φ45,parallel key |
| 1.13X11.13X31.75 |
