| Model No.: | SD5-3 | Warranty: | 12-18 Months |
|---|---|---|---|
| DC Optional: | 12V,24V | Flow: | 45L/MIN |
| Oil Port: | G1/2,G3/8,7/8-14UNF | ||
| Highlight: | 12VDC Directional Control Valve,13gpm Directional Control Valve,45L/MIN Directional Control Valve |
||

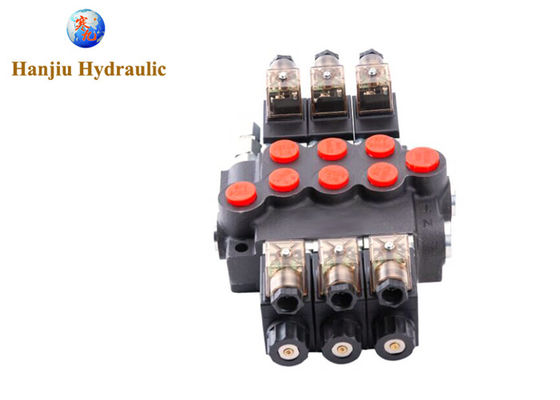

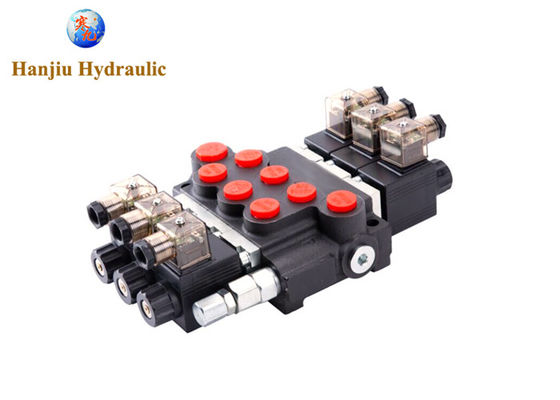

Badestnost 03 Z50 A ES3 12VDC hydraulic directional electric control valves 3banks 13gpm
Monoblock direct acting solenoid control valve that offer perfect choice whether you are designing a new system or just trying to get more out of your existing system. With 3 sections in a mono block housings, this valve can meet the specific needs of your application and hydraulic systems.
Fitted with a double acting spool as standard. 03 SD5 12VDC. Max operating pressure as follows.
A , B ports: 4300psi (300 bar). A, B ports: 3/8 BSPP. P, T port: 1/2 BSPP.
Operational Temperature: -40 TO +60. Relief valve setting: 180 bar standard (MAX = 250 BAR).
This item is in the category "Business & IndustrialHydraulics, Pneumatics, Pumps & PlumbingValves & ManifoldsDirectional Control ValvesStack Valves".
Specifications:
| parameter | value |
| Number of Work Sections | from 1 to 3 |
| Max working pressure | 315 bar |
| Operating pressure | 210 bar |
| Rated flow | 50 l / min |
| Working temperature | from -30 ° С to + 50 ° С |
| Fluid viscosity | from 20 to 400 mm 2 / s |
| Fluid temperature | from -20 ° С to + 70 ° С |
| Filtration | Grade 9 NAS1638 |
| Supply Voltage / Power Consumption | 12VDC * / 36W and 24VDC * / 29W |
| Switching frequency max | 15,000 times per hour |
| Duty cycle | 100% |
Port threads
| BSP Thread | Metric thread | US standard UNF thread | US standard NTP thread | ||||
| code | Thread size | code | Thread size | code | Thread size | code | Thread size |
| G04 | G1/4 | M16 | M16X1.5 | U10 | 5/8-12UNF | N06 | NPT3/8 |
| G06 | G3/8 | M18 | M18X1.5 | U12 | 3/4-16UNF | N08 | NPT1/2 |
| G08 | G1/2 | M20 | M20X1.5 | U14 | 7/8-14UNF | N12 | NPT3/4 |
| G12 | G3/4 | M22 | M22X1.5 | U16 | 1-12UNF | ||
