BMPH-315-H4-H-S-B Motor - SAE"A"4-Bolt, 1" Parallel .40 Dia Crosshole, 7/8-14 SAE

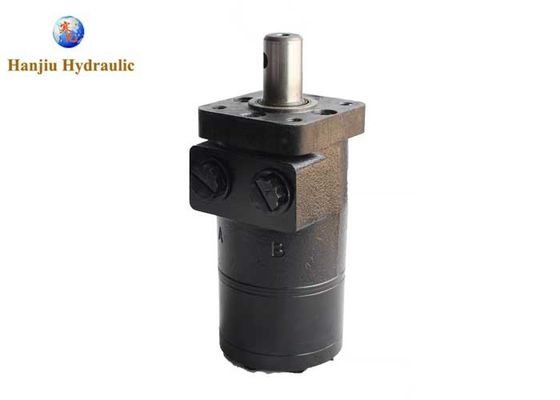

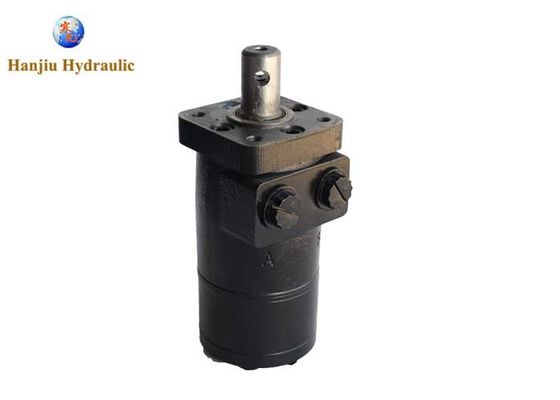

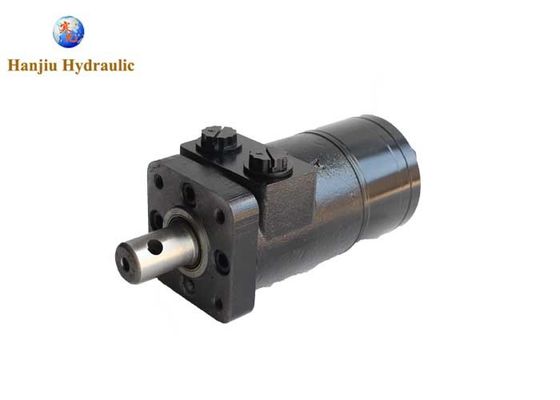

Large Image : BMPH-315-H4-H-S-B Motor - SAE"A"4-Bolt, 1" Parallel .40 Dia Crosshole, 7/8-14 SAE

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE
Model Number:	BMPH-315-H4-H-S-B

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Contact seller to ask
Packaging Details:	Box, Pallet
Delivery Time:	35 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	10000 pieces per year

Contact Now

Detailed Product Description

Item:	Hydraulic Motor	Direction:	Left And Right
OEM #:	BMPH-315-H4-H-S-B	Displacement:	315cc
Flange:	SAE"A"4-Bolt	Shaft Size:	1" Parallel
Crosshole:	.40 Dia	Oil Port:	7/8-14 SAE
Highlight:	315cc Hydraulic Motor , 40 dia Hydraulic Motor , BMPH-315-H4-H-S-B

BMPH-315-H4-H-S-B Motor - SAE"A"4-Bolt, 1" Parallel .40 Dia Crosshole, 7/8-14 SAE

This is a replacement hydraulic motor for Brevini BH series

Main Specifications:

Technical data for BMP with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type		BMP BMPH BMPW 36	BMP BMPH BMPW 50	BMP BMPH BMPW 80	BMP BMPH BMPW 100	BMP BMPH BMPW 125	BMP BMPH BMPW 160	BMP BMPH BMPW 200	BMP BMPH BMPW 250	BMP BMPH BMPW 315	BMP BMPH BMPW 400	BMP BMPH BMPW 500
Geometric displacement (cm3 /rev.)		36	51.7	77.7	96.2	120.2	157.2	194.5	240.3	314.5	389.5	486.5
Max. speed (rpm)	cont.	1500	1150	770	615	490	383	310	250	192	155	120
Max. speed (rpm)	int.	1650	1450	960	770	615	475	385	310	240	190	150
Max. torque (N·m)	cont.	55	100	146	182	236	302	360	380	375	360	385
	int.	76	128	186	227	290	370	440	460	555	525	560
	peak	96	148	218	264	360	434	540	550	650	680	680
Max. output (kW)	cont.	8	10	10	11	10	10	10	8.5	7	6	5
Max. output (kW)	int.	11.5	12	12	13	12	12	12	10.5	8.5	7	6
Max. pressure drop (MPa)	cont.	12.5	14	14	14	14	14	14	11	9	7	6
	int.	16.5	17.5	17.5	17.5	17.5	17.5	17.5	14	14	10.5	9
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	18	16	14	12
Max. flow (L/min)	cont.	55	60	60	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	60	75	75	75	75	75	75	75	75	75	75
Weight (kg)		5.6	5.6	5.7	5.9	6	6.2	6.4	7	6.9	7.4	8

BMPH-315-H4-H-S-B Motor - SAE"A"4-Bolt, 1" Parallel .40 Dia Crosshole, 7/8-14 SAE 0

BMPH-315-H4-H-S-B Motor - SAE"A"4-Bolt, 1" Parallel .40 Dia Crosshole, 7/8-14 SAE 1

BMPH-315-H4-H-S-B Motor - SAE"A"4-Bolt, 1" Parallel .40 Dia Crosshole, 7/8-14 SAE 2

BMPH-315-H4-H-S-B Motor - SAE"A"4-Bolt, 1" Parallel .40 Dia Crosshole, 7/8-14 SAE 3

BMPH-315-H4-H-S-B Motor - SAE"A"4-Bolt, 1" Parallel .40 Dia Crosshole, 7/8-14 SAE 4

APPLICATIONS

Agricultural augers, harvesters, seeders, snow plows, railroad maintenance equipment, concrete and asphalt equipment and more.

FEATURES

Designed for medium duty applications, it's use industry-proven spool valve technology, combined with state-of-the-art gerotors. In addition, a wide variety of mounting flanges, shafts, ports and valving options provide design flexibility. Direction of shaft rotation and shaft speed can be controlled easily and smoothly throughout the speed range of the motor, and equipment can be driven direct, eliminating costly mechanical components.

BMPH-315-H4-H-S-B Motor - SAE"A"4-Bolt, 1" Parallel .40 Dia Crosshole, 7/8-14 SAE 5
