Product Details:
Payment & Shipping Terms:
|
| Item: | Hydraulic Control Valve | Model No.: | DCV60/9 |
|---|---|---|---|
| Lever: | 9 ( 1-12 Lever Available) | Flow: | 60 Lpm ( Upto 200 Lpm Available) |
| Spool Function: | O/Y/A | Max Pressure: | 350 Bar |
| Highlight: | 60 Lpm Hydraulic Control Valve,60 L/min Hydraulic Control Valve,16GPM Hydraulic Control Valve |
||

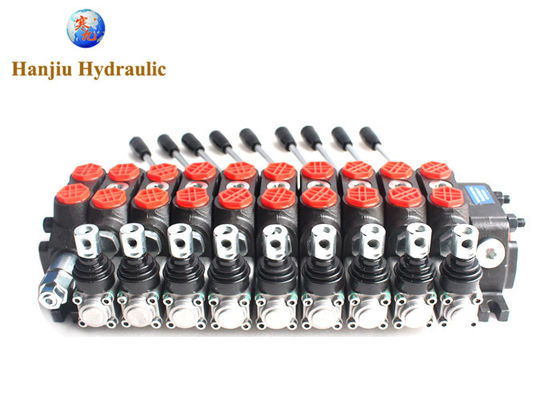

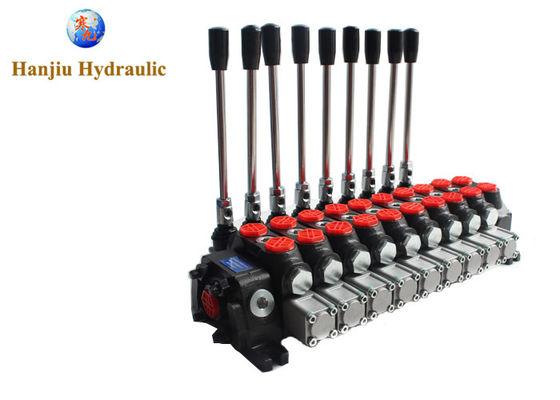

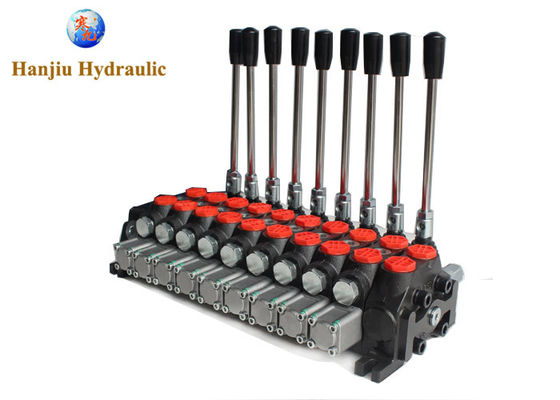

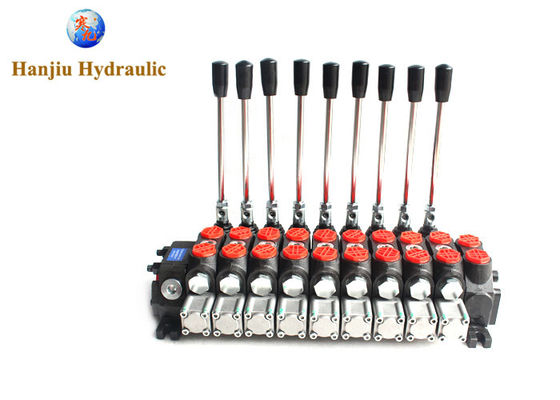

Hydraulic control valve for Truck and Trailer, 350 bar 60 lpm 9 levers BSP 1/2"port
|
Norminal Flow
|
60 L/min
|
|
Max Flow
|
16GPM |
|
Max Pressure
|
315 bar/5076PSI
|
|
Control Type
|
manual ( pneumatic, hydraulic, electro-hydraulic available )
|
|
Allowed back pressure
|
≤1 mpa
|
|
Oil port size
|
customizable
|
| Operating range | 15-75MM2/S |
| Viscosity | min 12 MM2/S |
| max 400 MM2/S | |
| Structure | sectional 1-12sections |
oil ports
| BSP Thread | Metric thread | US standard UNF thread | US standard NTP thread | ||||
| code | Thread size | code | Thread size | code | Thread size | code | Thread size |
| G04 | G1/4 | M16 | M16X1.5 | U10 | 5/8-12UNF | N06 | NPT3/8 |
| G06 | G3/8 | M18 | M18X1.5 | U12 | 3/4-16UNF | N08 | NPT1/2 |
| G08 | G1/2 | M20 | M20X1.5 | U14 | 7/8-14UNF | N12 | NPT3/4 |
| G12 | G3/4 | M22 | M22X1.5 | U16 | 1-12UNF | ||
| M27 | M27X2 | ||||||
spool functional
RELATED PRODUCTS:
We offer a variety of monoblock and sectional directional control valves for use in agricultural, marine, industrial, construction sectors.
No matter what hydraulic directional control valve you are looking for, give us a call with your inquriy
