Product Details:
Payment & Shipping Terms:
|
| Product Name: | Road Roller Spare Parts | Relieve Valve: | 17Mpa |
|---|---|---|---|
| Shock Valve: | 22Mpa | Function: | Load Sensing |
| Displacement: | 500 Ml/r | Max Input Speed: | 75rpm |
| Highlight: | 17Mpa steering control valve,75rpm steering control valve,101S-5T-500-17-E |
||

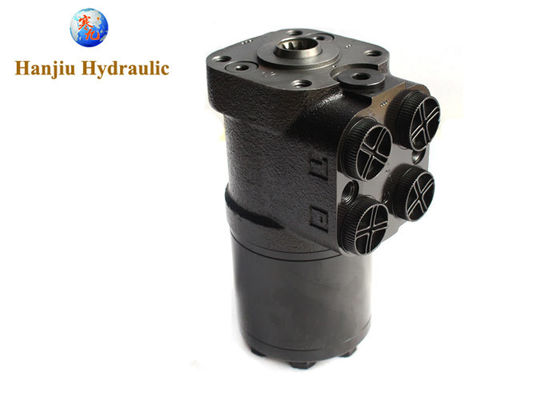

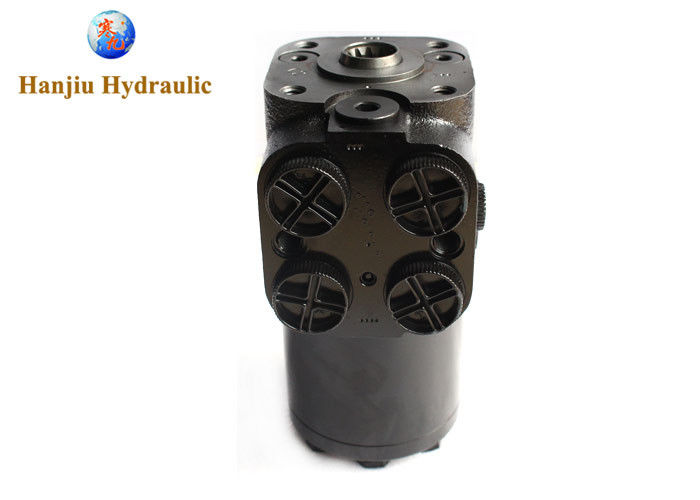

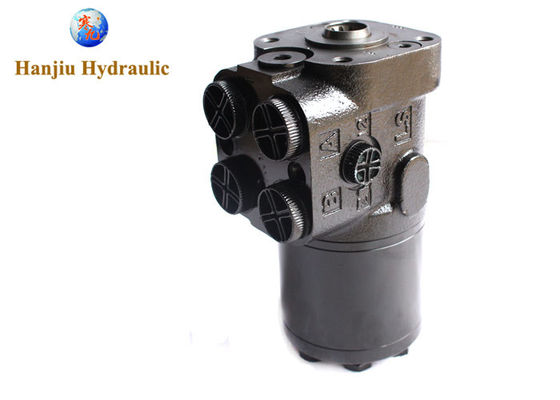

Dynapac Road Roller steering control valve OSPC500 LS Hydraulic Spare Part Steering engin
this type of hydraulic orbitrol steering units is for heavy equipment, like wheel loaders, backhole loaders,road rollers,
earthmovers, bulldozers.....
suitable for brand Komatsu,Dynapac,Kubota,JCB,CAT,Bobcat.....
type number:Hanjiu 101s
displacement:500liters
function:load sensing type
relief valve pressure settings:17mpa
shock valve pressure settings:22mpa
crossing code:OSPC500 LS
OEM part:1508133/23531262
Features:
Multi types, sizes, key or splind shafts available
Suitable for nearly all kinds of komatsu,carterpillar,doosan,shantui...
Different oil port,different types of shaft, different flange can choose.
Many kinds of displacement, can suitable for any hydra ulic systems.
High quality materials to produceorbitrol steering unit body(Aluminum&Alloy).
100% replace the OEM parts,70%-80% save cost.
Hydraulic Steering Unit 10 Series is integral steering unit, the valve body of rotary valve is integral structure, then the steering unit can integrate with cartridge valve, such as the steering control valve of the integral system. This 101 type steering unit without relief valve and shock valve, 101 series can 100% replace OSPB.
Specification:
| Parameters | Series 101S-5(T)(TE)(L)(E)-*** |
|||||||||||
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 | 500 |
| Max.input speed(rpm) | 100 | 75 | ||||||||||
| Max.input pressure(Mpa) | 17.5 | |||||||||||
| Max.cont.back pressure | 2.5 | |||||||||||
| Relief Valve Pressure Settings(Mpa) | 06,07,08,10,12,14,15,16.5,17.5 | |||||||||||
| Shock Valves Pressure Settings(Mpa) | 12,13,14,16,18,20,21,22,23.5 | |||||||||||
| Weight(kg) | 5.75 | 5.81 | 5.89 | 5.93 | 6.1 | 6.3 | 6.5 | 6.73 | 6.91 | 7.1 | 7.5 | 8.3 |
| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 | 183 |
related OEM parts
| Hanjiu | OEM | |
| 101s 100 CN | AL41291 AL55308 OSPC-160CN HKUS160/7/3 |
1550 (50 Series), 1640 (40 Series), 1750 (50 Series), 1850 (50 Series) 1950 (50 Series), 2040 (40 Series), 2140 (40 Series), 2250 (50 Series), 2450 (50 Series), 2650 (50 Series), 2850 (50 Series), 3040 (40 Series), 3050 (50 Series), 3140 (40 Series), 3150 (50 Series), 3340 (40 Series), 3350 (50 Series) |
| Hanjiu | Massey FergusonOEM | Massey Ferguson |
| 101s 125 ON | K207419 4WD 125cc-3/4” HKUS125/ON |
240 (200 Series), 253 (200 Series) 261 (200 Series), 265 (200 Series) 275 (200 Series), 290 (200 Series) 298 (200 Series), 340 (300 Series) 342 (300 Series), 350 (300 Series) 352 (300 Series), 355 (300 Series) 360 (300 Series), 362 (300 Series) 365 (300 Series), 372 (300 Series) |
| Hanjiu | Fiat OEM | Fiat |
| 101s 100 ON |
(5140383) / 5143319/ 2WD
HKUS100/ON
OSPC100/ON
|
100-90 (90 Series), 110-90 (90 Series) 115-90 (90 Series), 130-90 (90 Series) 140-90 (90 Series), 160-90 (90 Series) 180-90 (90 Series), 55-90 (90 Series) 60-90 (90 Series), 70-90 (90 Series) 80-90 (90 Series), 85-90 (90 Series) |
